WL110
WL110(WRL90-05) Parts Diagrams
469 factory assemblies. Open one to see the drawing, every part number on it and what we charge for it.
maintenance kit
maintenance kit
maintenance kit
hose clamp
Seal
Engine bedding
Container urea
Induction system
exhaust system
fuel system

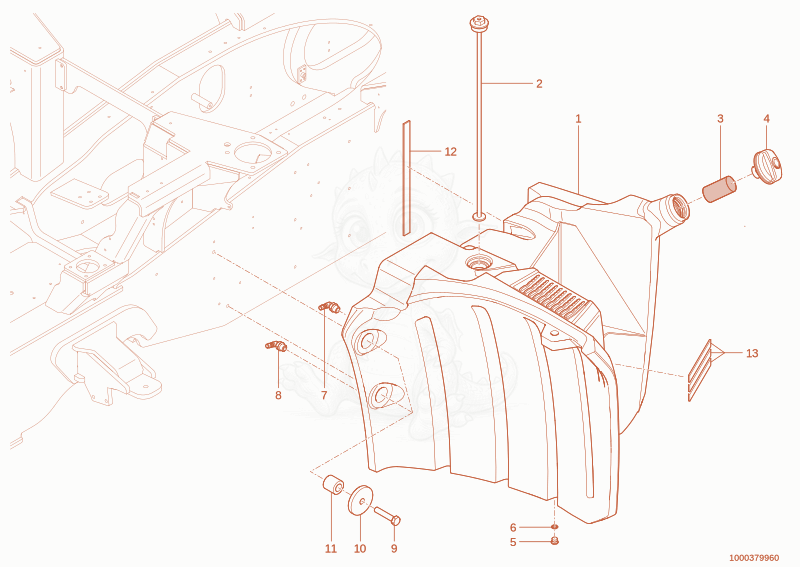

fuel tank
nutrients
preheater
engine
lock plug
locking parts
Crankcase gasket
Oil dipstick guide
Ventilation hose
crankcase breather
oildip stick
oil sump
belt pulley
Fastening parts pulley
belt drive
flywheel
Flywheel sealing plug
fasteners flywheel
bracket Cylinder head
valve cover
Locking parts control housing
Sealing plug control housing
controlhousing
oil cooler
oil cooler
oil filter
Closing parts oil cooler housing
Attachment of oil cooler
Fasteners Oil cooler housing
Fastening the injection pump
injection pump
control block
Fastening the control block
injection valve
Fastening the fuel pump
fuel pump cap
fuel filter
fuel filter
fuel pump
fuel line
injection
fuel line
injection line
Fasteners Air filter
charge air pipe
Compressor cover
lubrication oil line
Fastening the compressor
compressor
fuel line
Fastening ribbed pulley
Connection of cooling water
cooling water line
breather line
Closure parts cooling water
belt tensioner
V-ribbed belt crankshaft
Attachment of fan bracket
ventilator housing
v-belt
exhaust pipe
Attachment of pressure sensor
EGR Cooler
Thermostat
Connection of exhaust gas turbocharge
lubrication oil line
return line
turbo charger
Fixing the starter
Ribbed pulley
accessories generator
bracket generator
starter motor
generator
heat protection shield
Engine bedding
Engine bedding
Fixing electrics
Attachment of the speed sensor
locking parts
interconnect cable Relais
interconnect cable Relais
relay
Control unit cover
Attachment parts relay
pressure sensor
Attachment of the speed sensor
Attachment parts wiring harness
bracket relay
rpm sensor
transport bracket
wiring harness
temperature sensor
Connection housing socket
connection housing
Fasteners clutch
heating flange
Closing parts heating flange
bracket exhaust
Urea delivery pump
catalysator
soot filter
Particle filter outlet
Particulate filter inlet
exhaust pipe
Sealing plug for the catalyst
Cap for sensor connection
Particle filter cap
Particle filter cap
Sealing plug for particle filter
Fast exhaust aftertreatment
solenoid valve
metering unit
Connectio for urea metering device
Exhaust aftertreatment sensor
Support de montage
Attachment of the dosing device
Alternator console
Alternator tensioner
Sealing cover hydraulic pump
Locking parts
engine
flywheel
ventilator housing
Attachment of fan bracket
EGR Cooler
Urea delivery pump
Sealing cover engine block
Circulatory cooling 4.1
Circulatory regulation container 4.1
Circulation fan
hydraulic pump
hydraulic pump
hydraulic pump
hydraulic motor
SP DRIVES CYCLE
SP DRIVES CYCLE
Transfer case
gearbox mounting

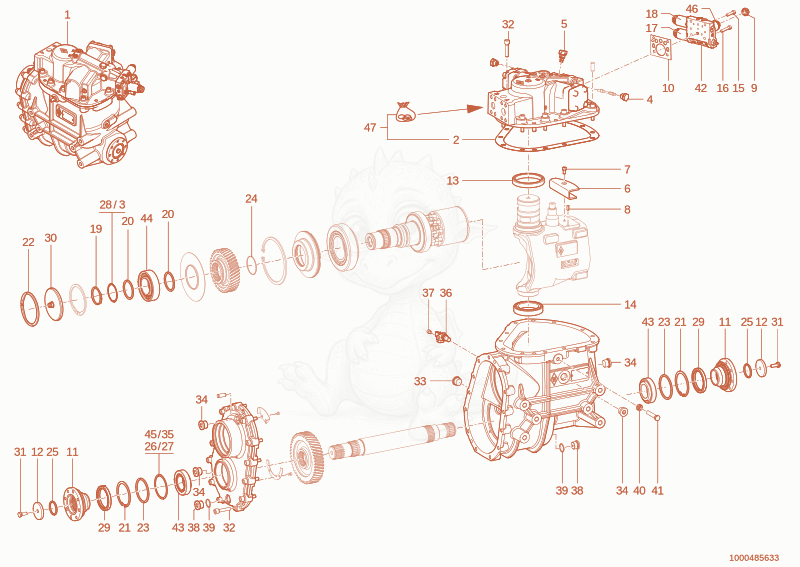

Gearbox
Gearbox P370 i 1,38
Gearbox P370 i 1,15
Gearbox P370 i 1,15
Control cover
Axle attachment
Axle attachment
front axle
angle drive
brake
differential
wheel hub
rear axle
brake
wheel hub
rear axle
angle drive
cardan shaft
cardan shaft
differential lock

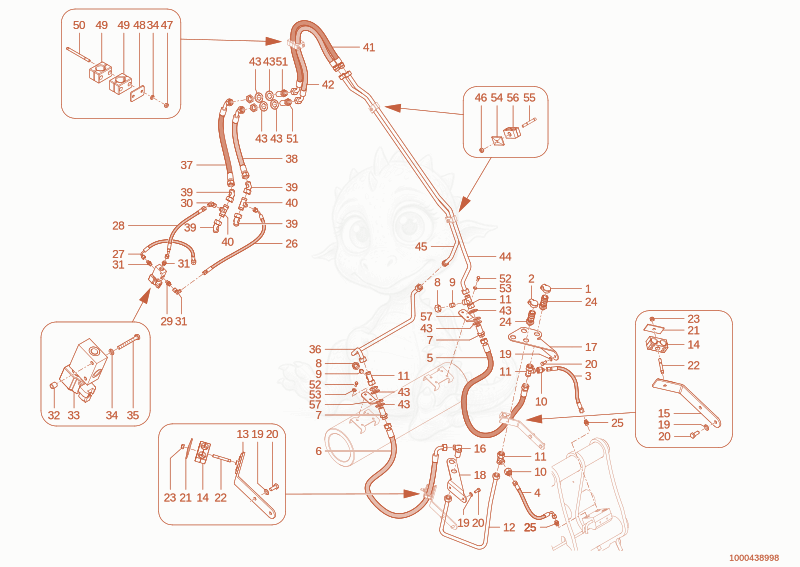

lubrication line
cardan shaft protection
service brake
service brake
brake pedal
Trailer brake
Trailer brake
Trailer brake
Trailer brake
Trailer brake
Trailer brake
Compressed air brake
Compressed air brake
steering cylinder
steering unit
steering column
oil tank
hydraulic pump
control unit
control unit
control unit
Controller individual parts
Controller individual parts
control unit
Controller individual parts
Controller individual parts
control unit
Controller individual parts
Controller individual parts
screw connection
screw connection
screw connection
tilt ram

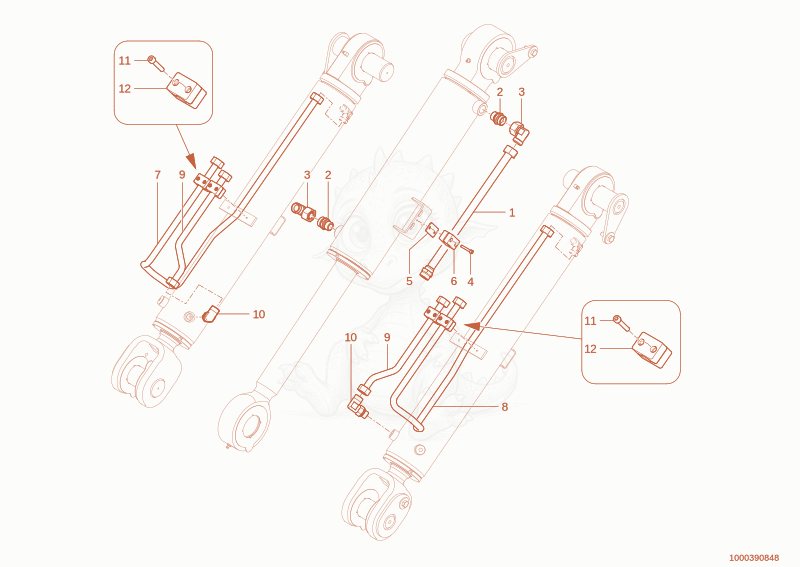

lift cylinder
cylinder pipes assy.
cylinder pipes assy.
SP WORKING HYDRAULICS LOAD ARM 3,8M
SP WORKING HYDRAULICS LOAD ARM 3,8M
SP WORKING HYDRAULICS LOAD ARM 3,8M
SP WORKING HYDRAULICS LOAD ARM 3,8M
SP WORKING HYDRAULICS LOAD ARM 3,8M
SP 3. CONTROL CIRCUIT
3rd control circuit
3. Quickhitch facility cycle
PILOT CONTROL
4. HYDRAULIC CIRCUIT
suppl. Control circuit
suppl. Control circuit
Cycle add. + Hitch + Tippler
Cycle add. + Hitch + Tippler
Auxiliary control circuit rear + tipper
Cycle add. rear.+ Hitch + Tippler
Cycle load stabilizer
Cycle load stabilizer
CIRCULATION WORK PUMP
CIRCULATION CONTROL VALVE
reflux line
CIRCULATION CONTROL VALVE
quick lock coupling
minimess point
minimess point
minimess point
Central lubrication system components
central greasing divice
lighting
supplement light
supplement light
Instrument panel
Instrument panel
Instrument panel
platine
Console
wiring harness
wiring harness
wiring harness
wiring harness
wire harness frame
wire harness frame
Bracket frame wiring harness

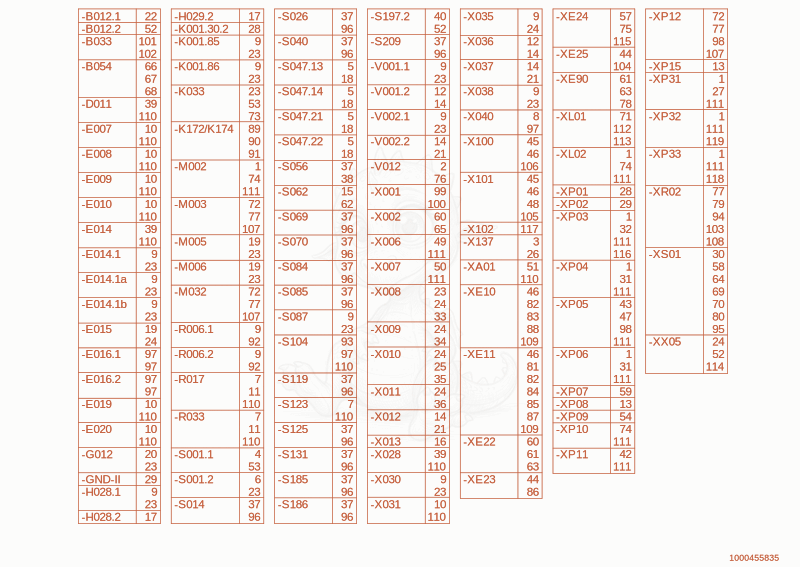

Fuse box, relays
keypad
Electrical connection components
wiring harness
wiring harness
wiring harness
wiring harness
wiring harness
wiring harness
Harness EAT console
Battery - battery cable
cable
cable
Wiring harnesses 20/30 Km/h
cable
cable
cable
Cable work light
control lever
radio
radio
Numberplate light BG
Numberplate light BG
pressure relief
signal horn
Back driving warning apparatus
rotating beacon
rotating beacon
switch
camera
Telematic
Socket
wheel cover
wheel cover
wheel cover
tyre
tyre
front part frame
REAR PART CHASSIS
pivot block
ballast weight
ballast weight

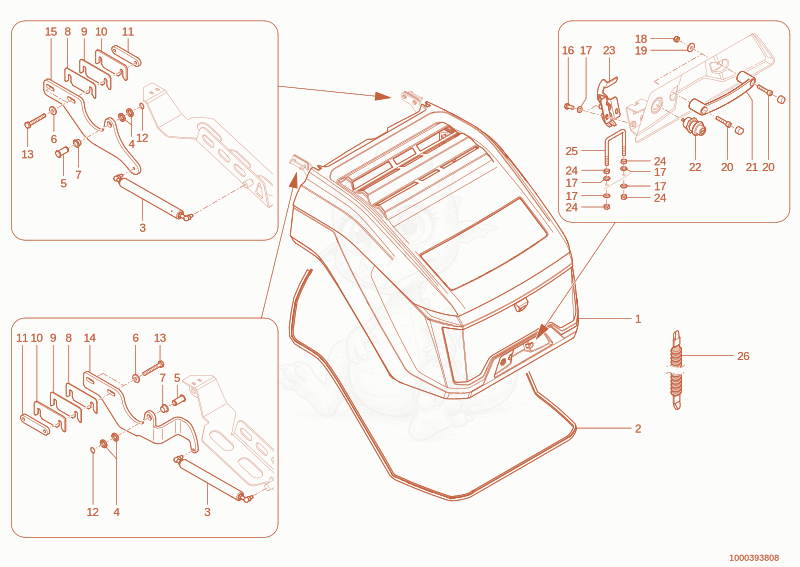

engine hood
side trim
foot step
foot step
connection
trim
trim
Industry protection package
liftarm
LEVER
TIE ROD
TIE ROD
LEVER
mounting
SP TPV ADAPTER
bucket backup autom. sra
Cab
Cab windows
Cab door right
Cab door left
wiper device
Light protection
trim
cabin camp
Insulating mat
Speed regulation
SP ASCENT LEFT
rearview mirror
Electrical outside mirror
bracket
bracket
protecting screen
Operator's seat attachment
drivers seat
drivers seat
Seat Heating
Air conditioning system
Air conditioning system
heating
heating
machine docs.
sticker
indication label
Labels
Labels
sticker
tools
tools
trailer coupling
trailer coupling
trailer coupling
trailer coupling
trailer coupling
trailer coupling
trailer coupling
Attachments Trailer hitch
Ranking clutch
Trailer hitch mirror
ballast weight
pallet forks
pallet forks
bucket
bucket
bucket
multy purpose bucket
multy purpose bucket
multy purpose bucket
multy purpose bucket
multy purpose bucket
bucket
bucket
bucket
bucket
