WL110

WL110(WRL90-05) rotating beacon Diagram

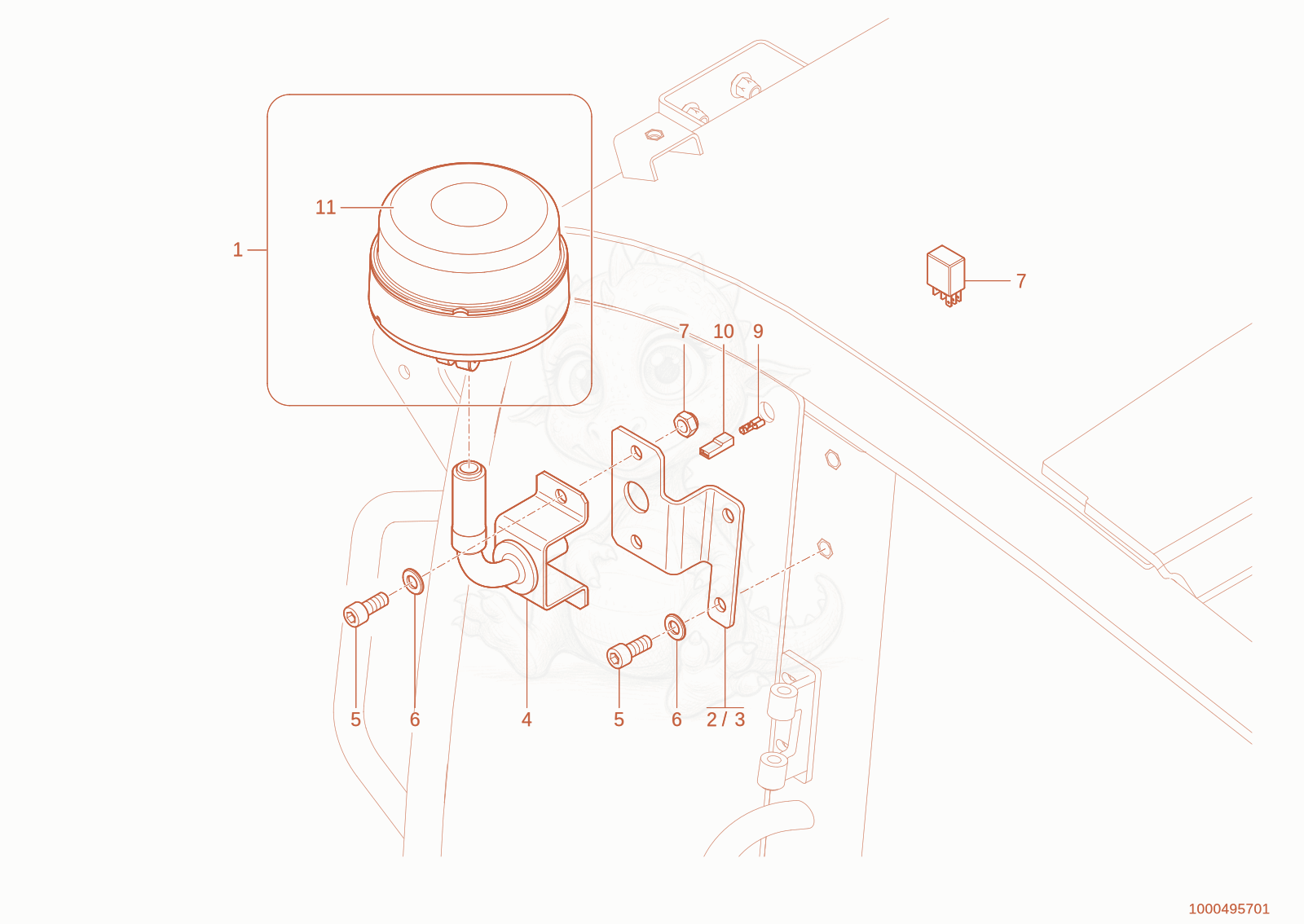

Exploded parts diagram of the rotating beacon of a Wacker Neuson WL110(WRL90-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000443683Not stocked
    rotating beacon×1
  • 21000399346
    $127.57
    Bracket - 1000399346×1
  • 31000399347
    $348.67
    Bracket - 1000399347×1
  • 41000386817
    $205.43
    Base - 1000386817×1
  • 51000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×4
  • 61000092291
    $0.80
    WASHER - 1000092291×4
  • 71000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 81000333390Not stocked
    relay×1
  • 91000095371Not stocked
    plug sleeve×2
  • 101000027435Not stocked
    insulating sleeve×2
  • 111000312668
    $392.80
    Rotating beacon A12 gelb H1 - 1000312668×1
