WL110

WL110(WRL90-05) control unit Diagram

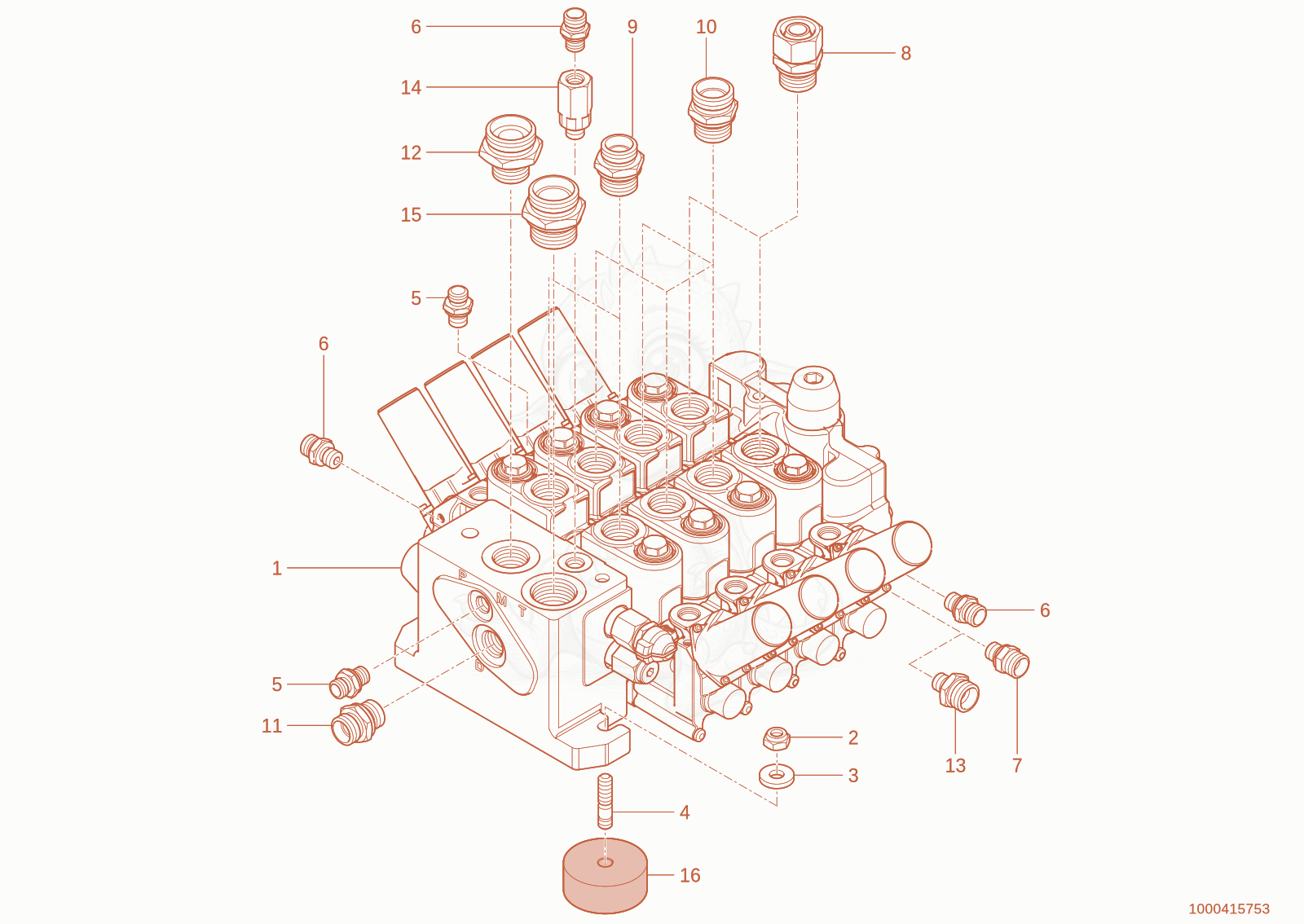

Exploded parts diagram of the control unit of a Wacker Neuson WL110(WRL90-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000351826Not stocked
    control valve×1
  • 21000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×3
  • 31000049278Not stocked
    washer×3
  • 41000048917Not stocked
    stud×3
  • 51000015488Not stocked
    screw joint×2
  • 61000015490Not stocked
    screw joint×3
  • 71000085128
    $3.13
    GE12LR1/4EDOMDA3C - 1000085128×1
  • 81000240635
    $37.22
    EGE 18PLR ED R3/4 A3C - 1000240635×2
  • 91000015565Not stocked
    screw joint×2
  • 101000085096
    $9.05
    GE22LREDOMDA3C - 1000085096×4
  • 111000015494Not stocked
    screw joint×1
  • 121000085069
    $27.33
    E28LR3/4" EDOMDA3C - 1000085069×1
  • 131000158256
    $39.29
    GE15LR1/4EDOMDA3C - 1000158256×1
  • 141000379316Not stocked
    throttle stop valve×1
  • 151000015496Not stocked
    screw joint×1
  • 161000228562
    $7.69
    RUBBER BUFFERS - 1000228562×3
