Wheel Loader

WL16 working hydraulic Diagram

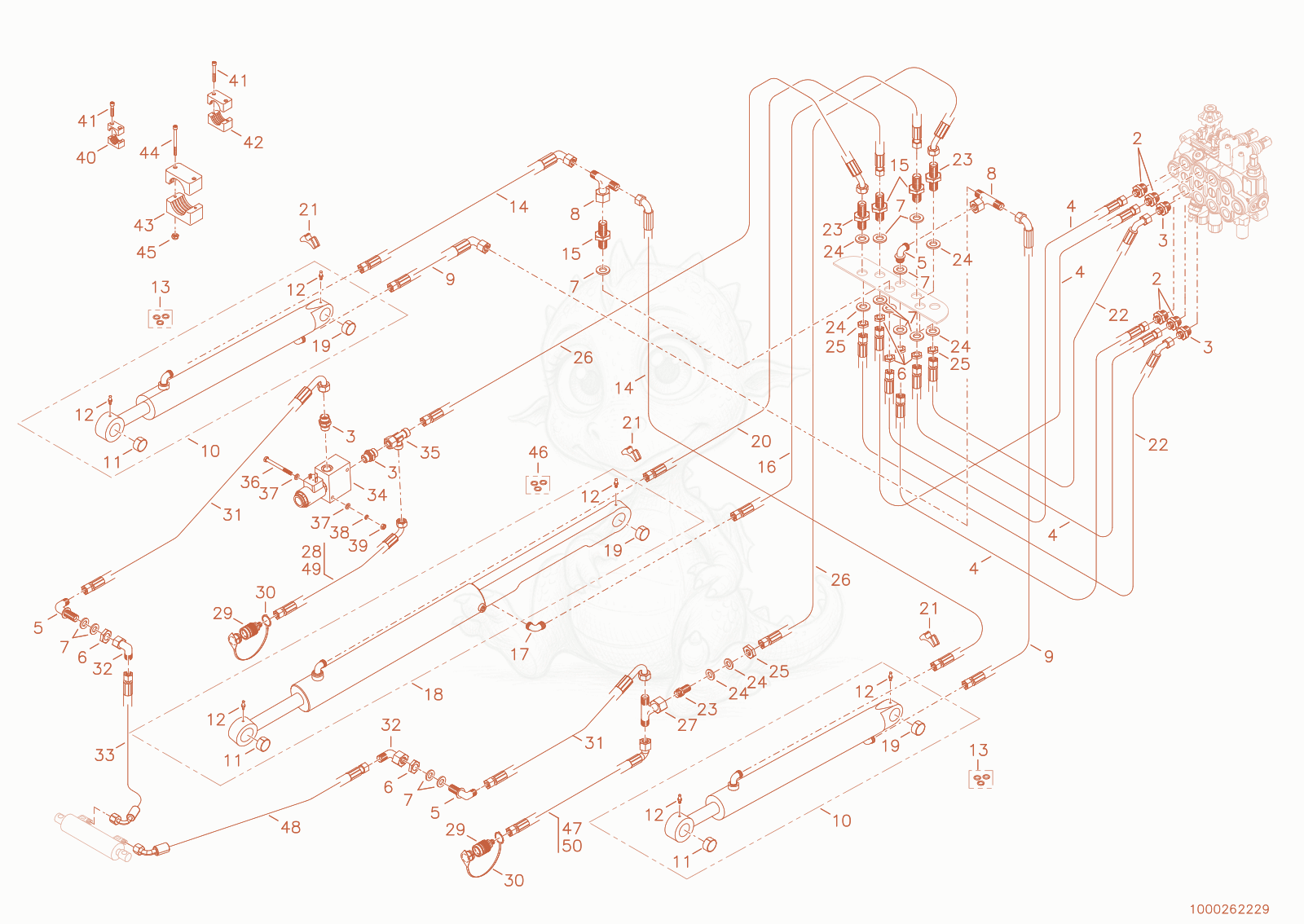

Exploded parts diagram of the working hydraulic of a Wacker Neuson WL16, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 21000015491Not stocked
    screw joint×4
  • 31000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×4
  • 41000220542
    $49.70
    SLHYDR 2SC 8,0PN10 0 PN10 0 L1900 S - 1000220542×4
  • 51000085064
    $9.49
    WSV10LOMDA3C - 1000085064×3
  • 61000225971
    $2.07
    10L -KONTERMUTTER - 1000225971×4
  • 71000021001
    $0.89
    WASHER - 1000021001×8
  • 81000085057
    $13.12
    ET10LOMDA3C - 1000085057×1
  • 91000220562
    $28.14
    SLHYDR 2SC 8,0PN10 0 PN10 90 L500,0S - 1000220562×2
  • 101000230077
    $498.72
    Liftcylinder 1000230077×2
  • 111000225634
    $29.28
    SLIDE BEARING - 1000225634×3
  • 121000223027
    $1.96
    FITTING-GREASE - 1000223027×6
  • 131000225779
    $110.44
    KIT-SEAL - 1000225779×2
  • 141000220561
    $54.31
    SLHYDR 2SC 8,0PN10 0 PN10 90 L880,0S - 1000220561×2
  • 151000085076
    $4.95
    SV10-L - 1000085076×1
  • 161000220564
    $33.98
    SLHYDR 2SC 8,0PN10 0 PN10 0 L860,0S - 1000220564×1
  • 171000167458
    $49.70
    EWE10-LM18X1,5 A3C - 1000167458×1
  • 181000229958
    $732.05
    Tiltram 1000229958×1
  • 191000225631
    $11.77
    BEARING - 1000225631×3
  • 201000309691Not stocked
    Hose×1
  • 211000228614
    $18.78
    BRACKET HOSE - 1000228614×3
  • 221000220548
    $58.45
    SLHYDR 2SN 10 PN12 0 PN12 45 L1900 S - 1000220548×2
  • 231000028480
    $5.07
    SV12-LA3C - 1000028480×3
  • 241000082625
    $0.83
    washer 19 - 1000082625×6
  • 251000225972
    $2.38
    VERSCHR. 12L -KONTERMUTTER - 1000225972×3
  • 261000221219
    $46.35
    SLHYDR 2SN 10 PN12 0 PN12 45 L1030 S - 1000221219×2
  • 271000015519
    $12.63
    ET12LOMDA3C - 1000015519×1
  • 281000222303
    $27.64
    SLHYDR 2SN 10 PN12 0 PN12 75 L1100 - 1000222303×1
  • 291000002995Not stocked
    quick lock coupling×2
  • 301000186757
    $2.77
    dust cap - 1000186757×2
  • 311000258843
    $20.36
    SLHYDR 2SC 8,0PN10 0 PN12 90 L660,0 - 1000258843×2
  • 321000015510Not stocked
    screw joint×1
  • 331000220716
    $53.75
    SLHYDR 2SC 8,0PN10 0 PN10 115L850,0S - 1000220716×2
  • 351000015539Not stocked
    screw joint×1
  • 361000085313
    $0.78
    hex screw - 1000085313×2
  • 371000015430Not stocked
    u-washer×4
  • 381000015444Not stocked
    spring washer×2
  • 391000015405Not stocked
    hexagon nut×2
  • 401000222638
    $1.65
    BLOCK-CLAMPING - 1000222638×1
  • 411000015369Not stocked
    cheese head screw×4
  • 421000222578
    $3.25
    BLOCK-CLAMPING - 1000222578×1
  • 431000222657
    $3.29
    BLOCK-CLAMPING - 1000222657×1
  • 441000085461
    $0.06
    cheese head screw M6x60-8.8 A2C - 1000085461×2
  • 451000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 461000225788
    $105.38
    KIT-SEAL - 1000225788Unknown×1
  • 461000422180Not stocked
    cylinder seal kit×1
  • 471000218411
    $40.94
    SLHYDR 2SN 10 PN12 0 PN12 90 L1200 - 1000218411×1
  • 481000220685
    $36.75
    SLHYDR 2SC 8,0PN10 0 PN10 75 L850,0S - 1000220685×1
  • 491000405224Not stocked
    Hose×1
  • 501000402864Not stocked
    Hose×1
