Wacker wheelloader WL28

WL28 HYDRAULICS Diagram

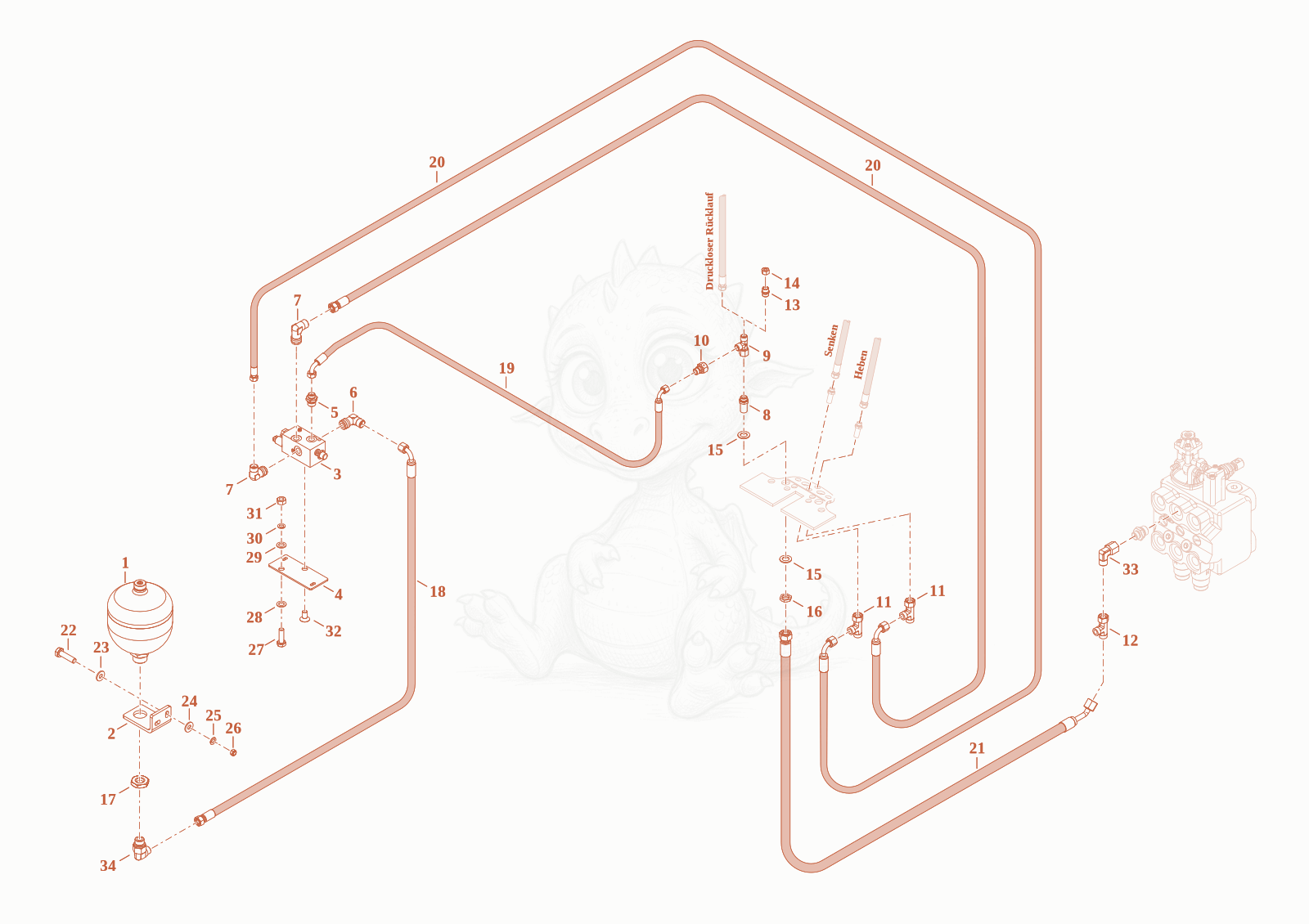

Exploded parts diagram of the HYDRAULICS of a Wacker Neuson WL28, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000329642
$372.16
Accumulator - 1000329642×1
21000244218
$100.80
MOUNTING - 1000244218×1
31000207433
$1,253.31
Valve 1000207433×1
41000244219
$238.74
MOUNTING - 1000244219×1
51000015493Not stocked
screw joint×1
61000225923
$14.56
WES12L/R 1/2" OMD - 1000225923×1
71000225925
$45.72
WES10L/R 1/2" OMD - 1000225925×2
81000028467Not stocked
screw joint×1
91000015539Not stocked
screw joint×1
101000015538Not stocked
reduction×1
111000085089
$10.48
EL10LOMDA3C - 1000085089×2
121000015517Not stocked
screw joint×1
131000028243Not stocked
lock piece×1
141000050505Not stocked
union nut×1
151000082620
$0.08
washer 23 - 1000082620×2
161000225973
$2.53
VERSCHR. 15L -KONTERMUTTER - 1000225973×1
171000049039Not stocked
hexagon nut×1
181000218439
$27.16
SLHYDR 2SN 10 PN12 0 PN12 90 L330,0 - 1000218439×1
191000264804
$65.27
SLHYDR 2SN 10 PN12 45 PN12 90 L960,0S - 1000264804×1
201000264805
$54.45
SLHYDR 2SC 8,0PN10 0 PN10 90 L960,0S0 - 1000264805×2
211000254786
$74.45
SLHYDR 1SN 12 PN15 0 PN18 45 L1800 S - 1000254786×1
221000085355
$1.51
hex screw - 1000085355×2
231000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×2
241000222577
$1.45
Washer - 1000222577×2
251000022016Not stocked
spring washer×2
261000015407Not stocked
hexagon nut×2
271000015359Not stocked
hex screw×2
281000015431Not stocked
washer×2
291000013027Not stocked
washer×2
301000030951Not stocked
spring washer×2
311000015406Not stocked
hexagon nut×2
321000085531
$0.80
countersunk screw - 1000085531×2
331000015513Not stocked
screw joint×1
341000028722Not stocked
screw joint×1
