Wacker wheelloader WL28

WL28 AUXILARY HYDRAULICS Diagram

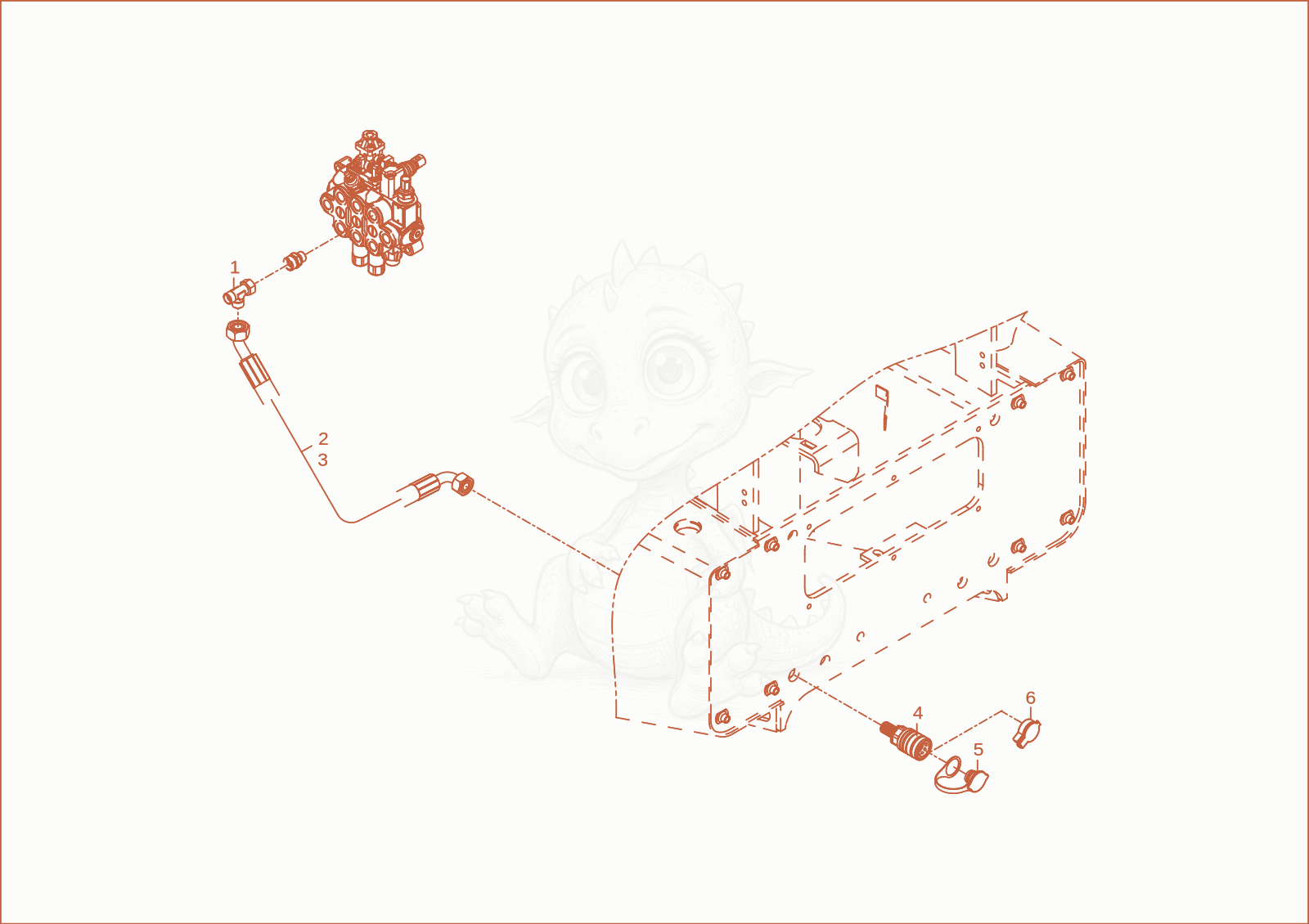

Exploded parts diagram of the AUXILARY HYDRAULICS of a Wacker Neuson WL28, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000015539Not stocked
    screw joint×1
  • 21000354462Not stocked
    Hose×1
  • 31000222054
    $87.02
    Slhydr2Sn12Pn1545Pn1590L1950S0 1000222054×1
  • 41000226099
    $41.75
    plug coupling - 1000226099×1
  • 51000186757
    $2.77
    dust cap - 1000186757×1
  • 61000226161
    $9.56
    dust cap - 1000226161×1
