WL95

WL95(WRL90-00) bucket backup autom. sra Diagram

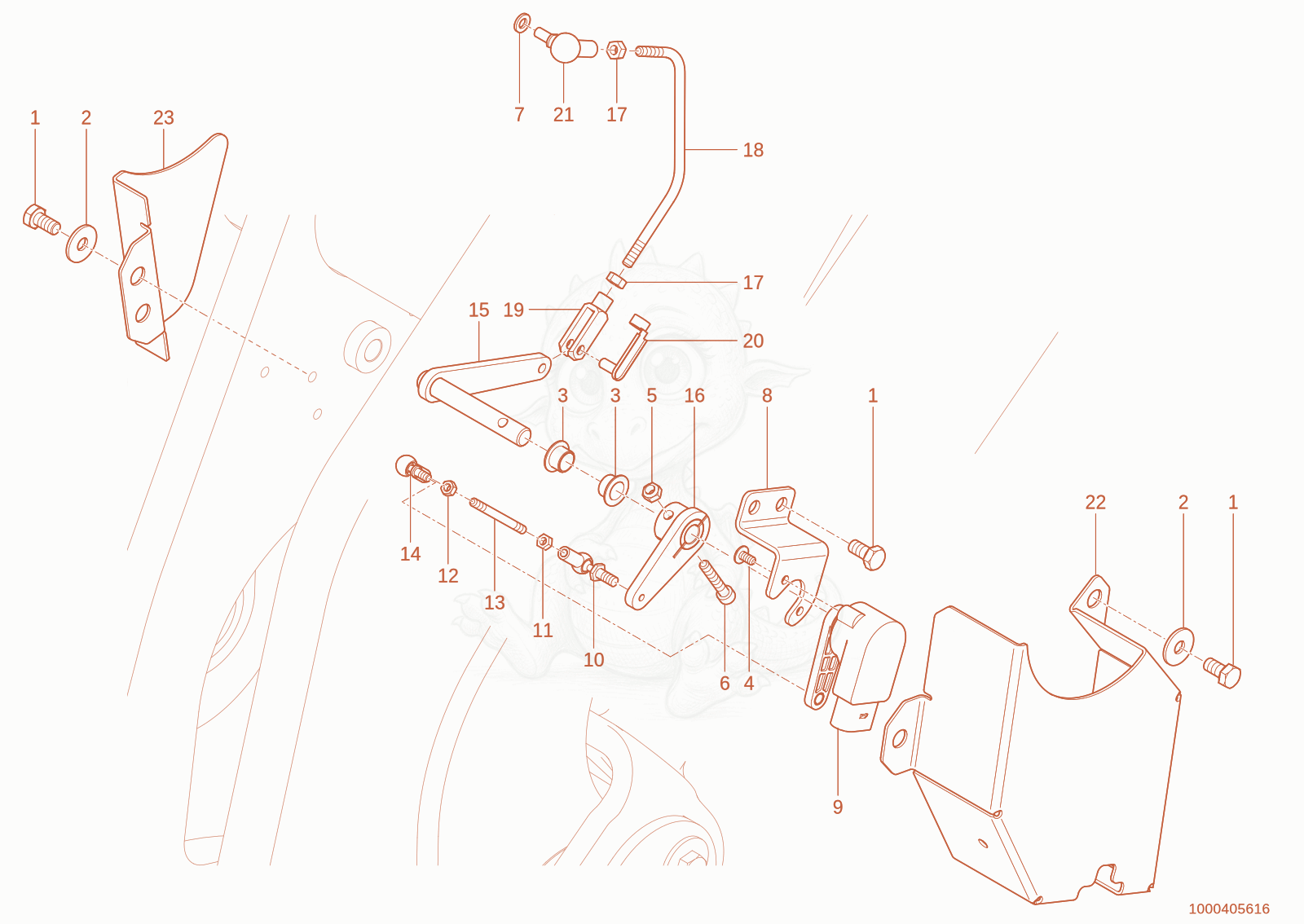

Exploded parts diagram of the bucket backup autom. sra of a Wacker Neuson WL95(WRL90-00), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000019136Not stocked
    hex screw×7
  • 21000013027Not stocked
    washer×5
  • 31000233156
    $3.26
    SLIDE BEARING - 1000233156×2
  • 41000098708
    $1.42
    ovalhead screw - 1000098708×2
  • 51000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 61000048166Not stocked
    cheese head screw×1
  • 71000092290
    $0.74
    WASHER - 1000092290×1
  • 81000297277
    $38.21
    Bracket - 1000297277×1
  • 91000300036
    $232.67
    Potentiometer - 1000300036×1
  • 101000353190Not stocked
    ball and socket×1
  • 111000353202Not stocked
    hexagon nut×1
  • 121000085581
    $1.51
    HEXAGON NUT - 1000085581×1
  • 131000384485Not stocked
    TIE ROD×1
  • 141000262596
    $68.55
    BALL AND SOCKET - 1000262596×1
  • 151000384531
    $465.63
    Lever - 1000384531×1
  • 161000297280
    $79.34
    lever - 1000297280×1
  • 171000015405Not stocked
    hexagon nut×2
  • 181000364746Not stocked
    TIE ROD×1
  • 191000050548Not stocked
    fork head×1
  • 201000030631
    $1.60
    PIN - 1000030631×1
  • 211000050552Not stocked
    ball and socket×1
  • 221000395678Not stocked
    adapter plate×1
  • 231000395687Not stocked
    protection plate×1
