WL95(WRL90-00) Air conditioning system Diagram

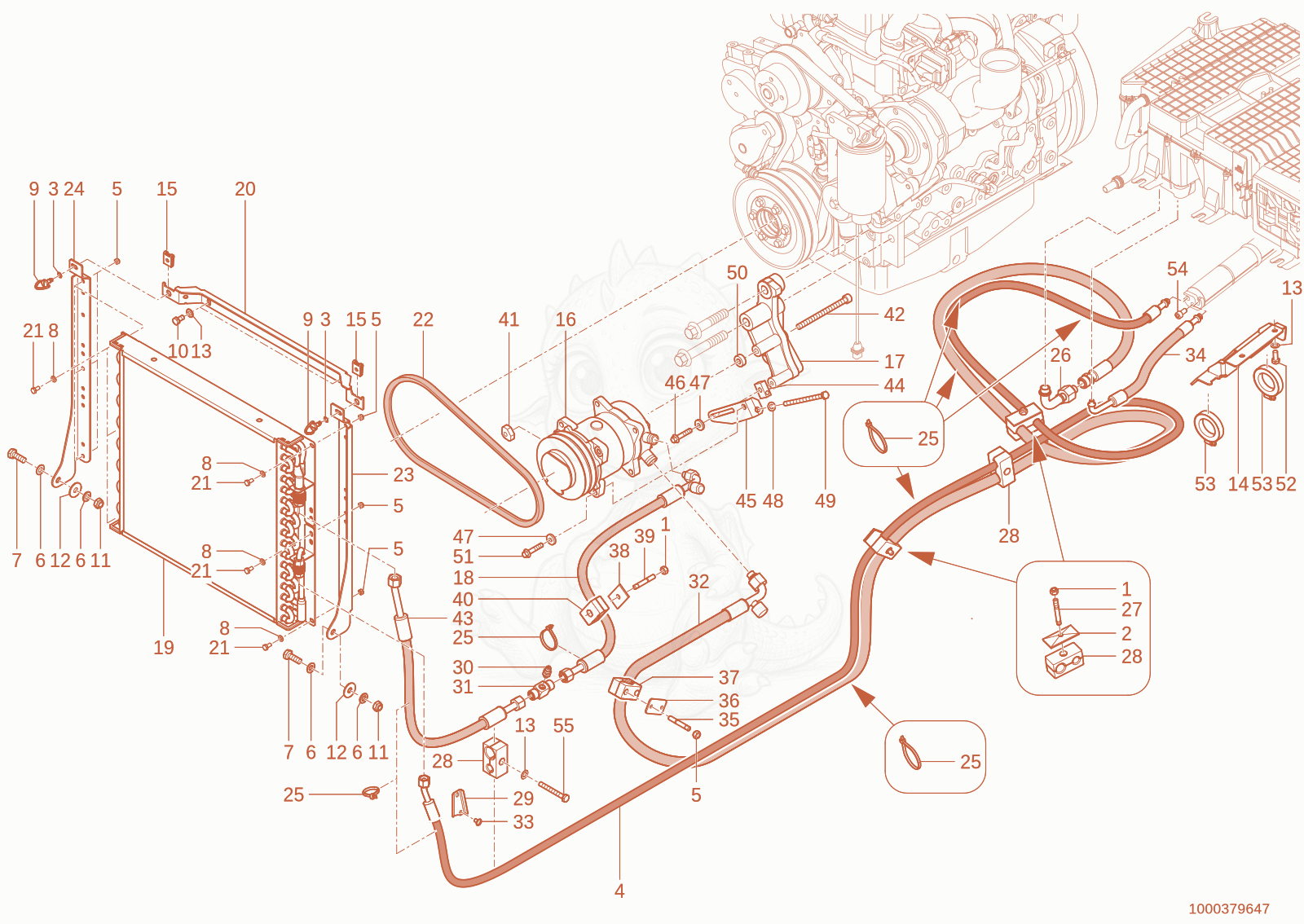

Exploded parts diagram of the Air conditioning system of a Wacker Neuson WL95(WRL90-00), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000013022Not stocked
    hexagon nut×3
  • 21000031245Not stocked
    cover plate×2
  • 31000152255
    $2.97
    Lock - 1000152255×2
  • 41000358298
    $401.61
    hose - 1000358298×1
  • 51000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×9
  • 61000092291
    $0.80
    WASHER - 1000092291×4
  • 71000015348Not stocked
    hex screw×2
  • 81000092290
    $0.74
    WASHER - 1000092290×7
  • 91000152254
    $16.16
    Lock - 1000152254×2
  • 101000019136Not stocked
    hex screw×2
  • 111000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 121000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 131000015431Not stocked
    washer×5
  • 141000388962
    $263.10
    Bracket - 1000388962×1
  • 151000152256
    $10.13
    Lock - 1000152256×2
  • 161000283361
    $815.81
    Compressoraircondition 1000283361×1
  • 171000322072
    $381.81
    Console - 1000322072×1
  • 181000358297
    $213.53
    hose - 1000358297×1
  • 191000357243
    $987.83
    Condenser - 1000357243×1
  • 201000357524
    $142.71
    Bracket - 1000357524×1
  • 211000085382
    $0.70
    HEX SCREW - 1000085382×7
  • 221000361541
    $28.74
    v-belt - 1000361541×1
  • 231000434090Not stocked
    mounting×1
  • 241000434091Not stocked
    mounting×1
  • 251000089965
    $0.11
    Cable tie 200x4,6 - 1000089965×9
  • 261000376253Not stocked
    Hose fitting×1
  • 271000048894Not stocked
    stud×2
  • 281000126725
    $5.32
    CLAMP - 1000126725×4
  • 291000396127
    $57.46
    plate - 1000396127×1
  • 301000375024
    $305.57
    VALVE - 1000375024×1
  • 311000375757Not stocked
    Hose fitting×1
  • 321000375968
    $404.40
    hose - 1000375968×1
  • 331000187775
    $1.11
    SCREW - 1000187775×2
  • 341000376252
    $263.96
    hose - 1000376252×1
  • 351000048887
    $1.31
    STUD - 1000048887×2
  • 361000031643Not stocked
    cover plate×1
  • 371000031591
    $5.05
    CLAMP - 1000031591×1
  • 381000031230Not stocked
    cover plate×1
  • 391000048892Not stocked
    stud×1
  • 401000031749
    $4.50
    CLAMP - 1000031749×1
  • 411000179163
    $17.40
    Plate - 1000179163×1
  • 421000246447
    $10.31
    cheese head screw - 1000246447×1
  • 431000375967
    $186.35
    hose - 1000375967×1
  • 441000322074Not stocked
    thread piece×1
  • 451000310171Not stocked
    clamp bar×1
  • 461000322078Not stocked
    torx screw×1
  • 471000095341
    $1.16
    WASHER - 1000095341×2
  • 481000135803
    $4.97
    BALLDISC - 1000135803×1
  • 491000322075Not stocked
    hex screw×1
  • 501000322071Not stocked
    bushing×1
  • 511000322076Not stocked
    torx screw×1
  • 521000013008Not stocked
    hex screw×2
  • 531000032290
    $3.31
    CLAMP - 1000032290×2
  • 541000048168Not stocked
    cheese head screw×1
  • 551000015344Not stocked
    hex screw×1
