WL950p

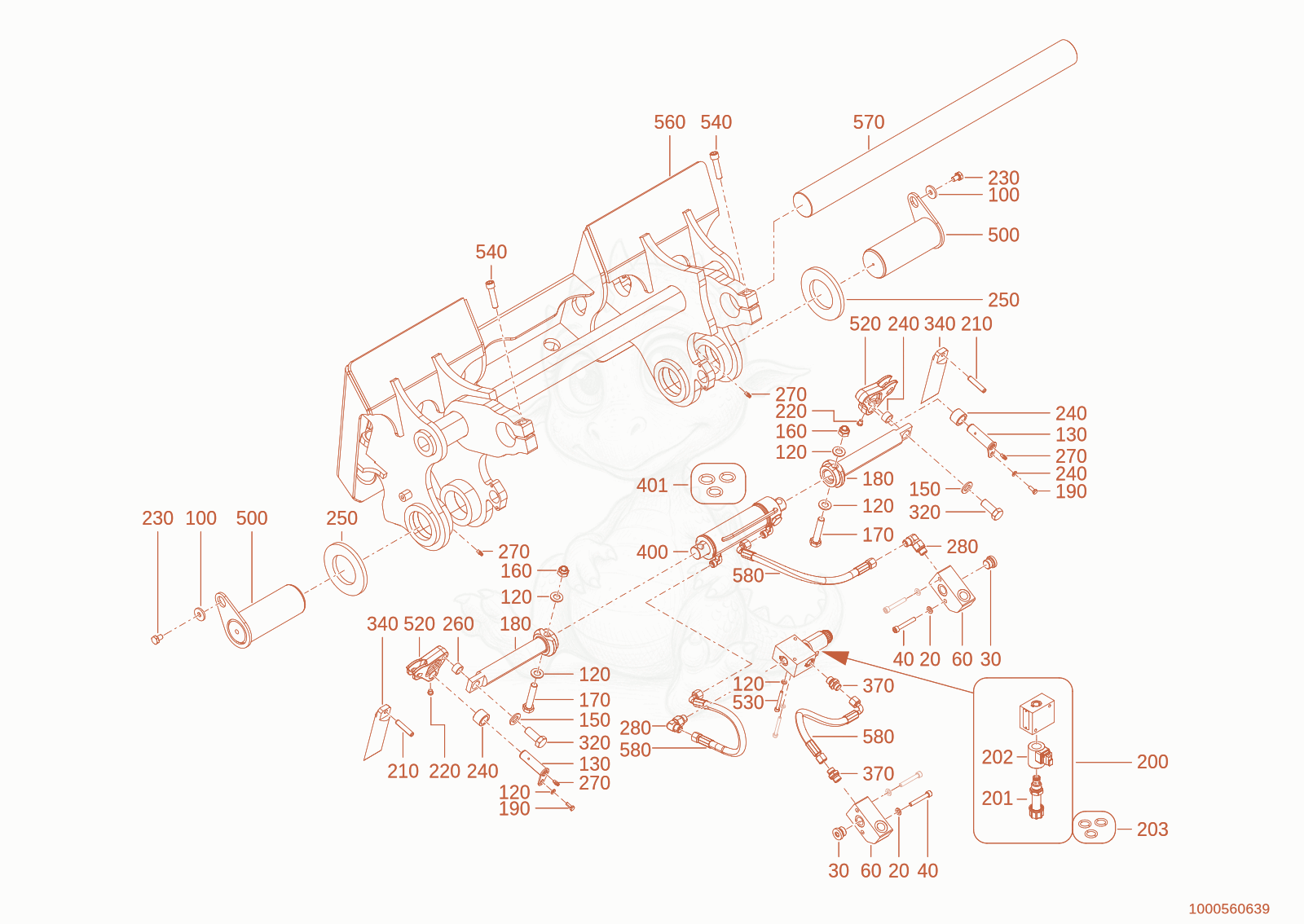

WL950P(A05-05) quickhitch plate Diagram

Exploded parts diagram of the quickhitch plate of a Wacker Neuson WL950P(A05-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 201000015431Not stocked
    washer×4
  • 301000030660Not stocked
    lock plug×2
  • 401000085464
    $1.53
    cheese head screw - 1000085464×4
  • 601000393559Not stocked
    distributor block×2
  • 1001000222577
    $1.45
    Washer - 1000222577×2
  • 1201000015430Not stocked
    u-washer×4
  • 1301000372601
    $336.62
    Bolt - 1000372601×2
  • 1501000021001
    $0.89
    WASHER - 1000021001×2
  • 1601000049060Not stocked
    hexagon nut×2
  • 1701000047404Not stocked
    hex screw×2
  • 1801000381586Not stocked
    locking pin×2
  • 1901000082237
    $1.71
    6-Point screw M6x16-8.8 A2C-DIN933 - 1000082237×2
  • 2001000335644
    $216.58
    Valve - 1000335644×1
  • 2011000265570
    $198.75
    drive valve - 1000265570×1
  • 2021000346390
    $64.57
    Solenoid - 1000346390×1
  • 2031000367370Not stocked
    seal kit valve cartridge×1
  • 2101000118414
    $1.76
    cotter pin - 1000118414×2
  • 2201000241240
    $8.97
    LOCK SCREW - 1000241240×2
  • 2301000013009Not stocked
    hex screw×2
  • 2401000372610
    $12.27
    Sleeve - 1000372610×2
  • 2501000406859Not stocked
    shim×2
  • 2601000262757
    $39.79
    Sleeve - 1000262757×2
  • 2701000222726
    $1.34
    NIPPLE-GREASE - 1000222726×4
  • 2801000264768
    $54.49
    EWE10LR 3/8" - 1000264768×2
  • 3201000109786
    $3.41
    hex screw - 1000109786×2
  • 3401000224822
    $56.64
    Bolt - 1000224822×2
  • 3701000015491Not stocked
    screw joint×2
  • 4001000354340
    $600.80
    Cylinder - 1000354340×1
  • 4011000468985Not stocked
    cylinder seal kit×1
  • 5001000406860
    $237.33
    Bolt - 1000406860×2
  • 5201000546207Not stocked
    LEVER×2
  • 5301000048167Not stocked
    cheese head screw×2
  • 5401000085512
    $1.18
    allen screw M12x50 10.9 - 1000085512×2
  • 5601000553794Not stocked
    adapter frame×1
  • 5701000550815Not stocked
    shaft×1
  • 5801000430216Not stocked
    Hose×3
