WL950p

WL950P(A05-05) rocker arm Diagram

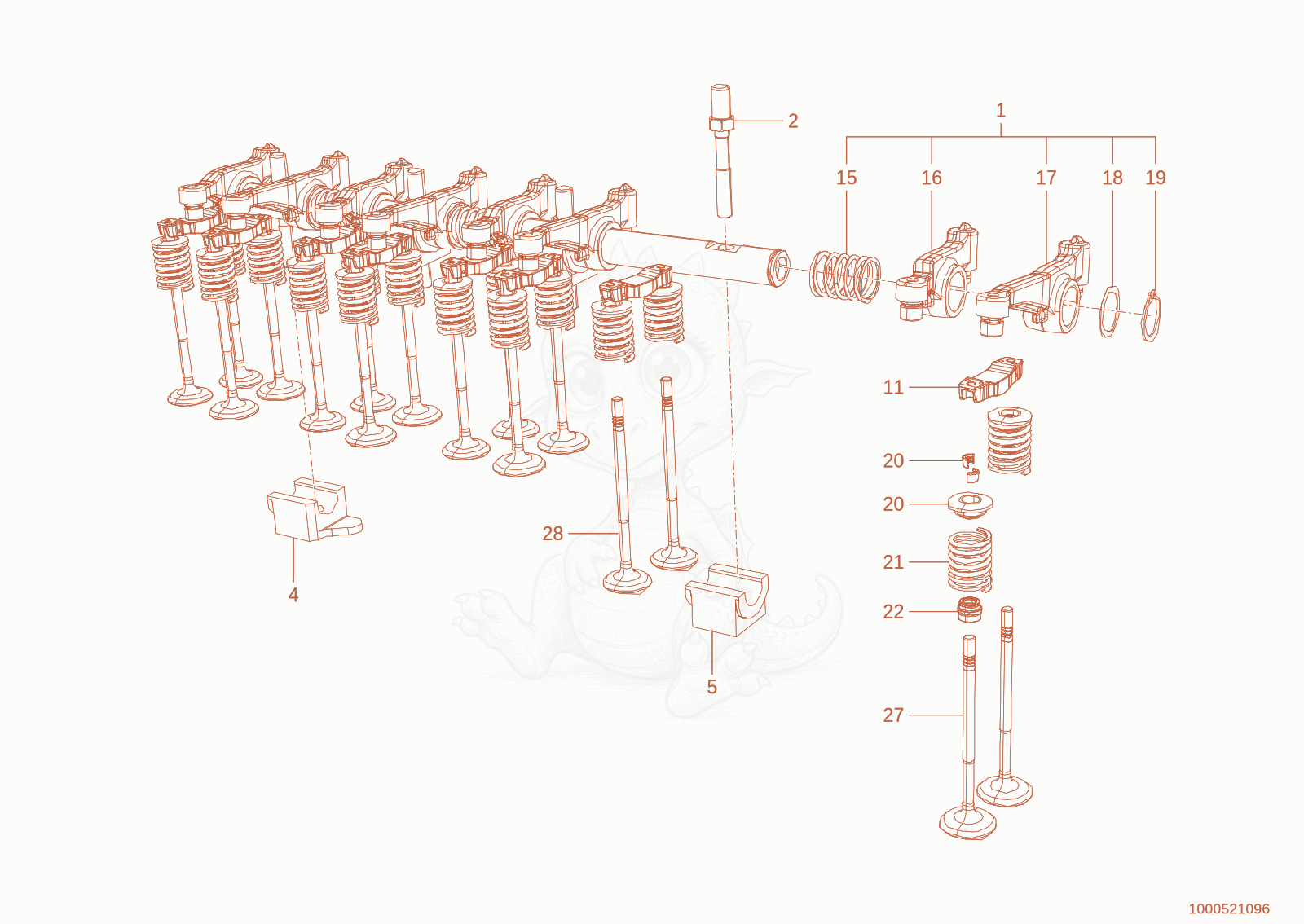

Exploded parts diagram of the rocker arm of a Wacker Neuson WL950P(A05-05), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000521942
    $1,226.53
    Rocker arm shaft - 1000521942×1
  • 21000470647Not stocked
    screw×4
  • 111000470707Not stocked
    screw joint×8
  • 151000521944
    $11.26
    Spring - 1000521944×3
  • 161000470750Not stocked
    Outlet rocker arm×4
  • 171000470754Not stocked
    Inlet rocker arms×4
  • 181000470755
    $2.49
    washer - 1000470755×2
  • 191000470762Not stocked
    lock ring×2
  • 201000470693Not stocked
    disc spring×16
  • 211000470676Not stocked
    spring×16
  • 221000470682Not stocked
    Spacer ring×16
  • 271000521946
    $30.16
    intake valve - 1000521946×8
  • 281000521949
    $34.52
    exhaust valve - 1000521949×8
