WP1540Aw

WP1540AWUS Piston Diagram

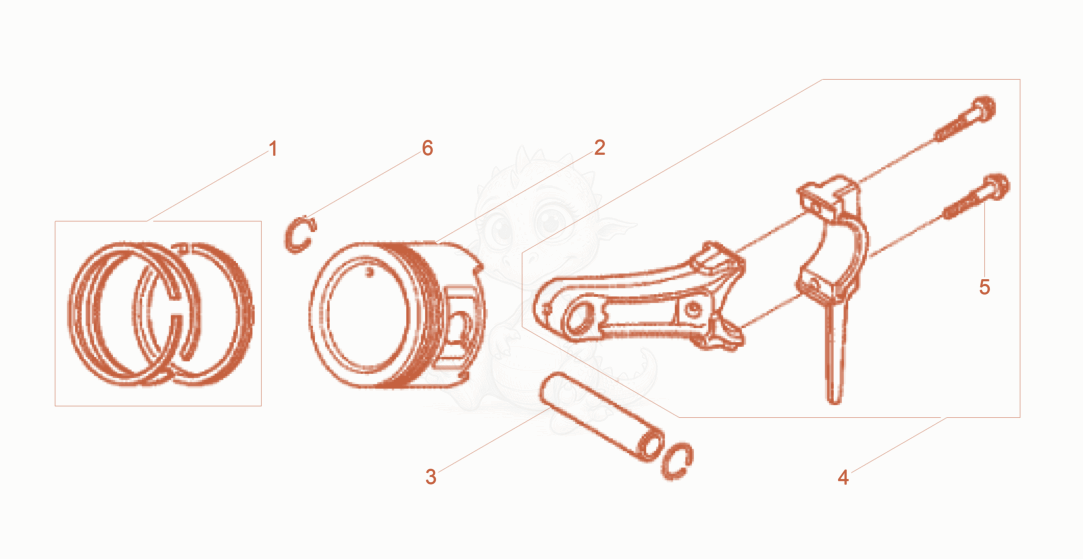

Exploded parts diagram of the Piston of a Wacker Neuson WP1540AWUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000217531
    $107.70
    Piston ring set 0,25 - 5000217531Unknown×1
  • 15000217532
    $102.63
    Piston ring set 0,5 - 5000217532Unknown×1
  • 15100005435Not stocked
    Set of piston rings×1
  • 25100005436Not stocked
    Piston×1
  • 25100019661
    $60.56
    Piston 0,25 - 5100019661×1
  • 25100019662
    $411.21
    Piston 0,50 - 5100019662×1
  • 35100005348Not stocked
    Piston pin×1
  • 45000406679
    $225.71
    ROD ASSY.,CONNECTING - 5000406679×1
  • 55100005438Not stocked
    Screw×2
  • 65000081994
    $1.68
    CLIP-PISTON PIN - 5000081994×2
