WP1540Aw

WP1540AWUS Spinkler System cpl. old Diagram

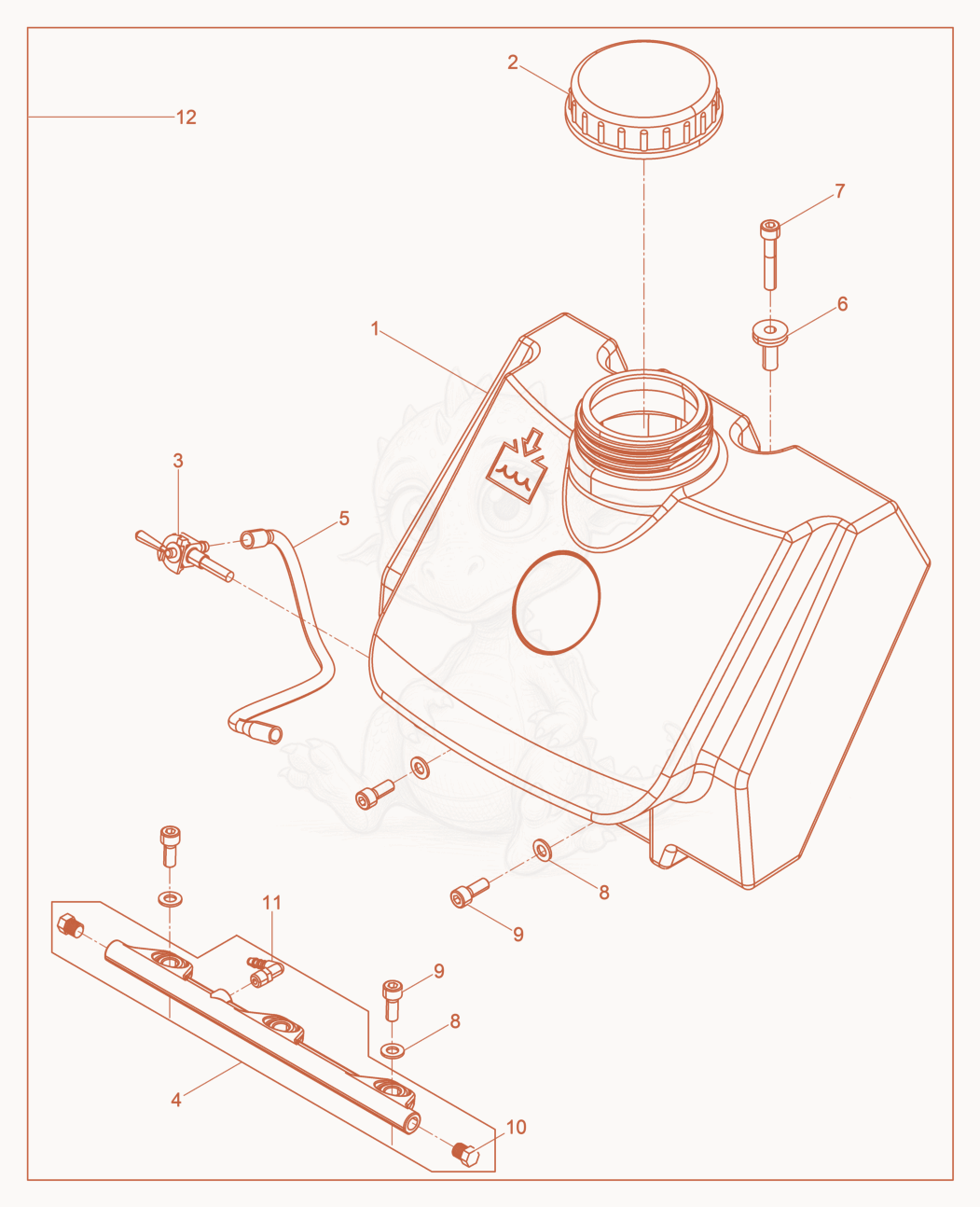

Exploded parts diagram of the Spinkler System cpl. old of a Wacker Neuson WP1540AWUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100016315
    $88.21
    Water tankX-5100037788 - 5100016315×1
  • 25000068351
    $32.19
    CAP-WATER TANK - 5000068351×1
  • 35100016618
    $26.27
    Shutoff valve - 5100016618×1
  • 45100018334
    $67.07
    Spinkler System cpl. - 5100018334×1
  • 55100018315
    $5.94
    Water Hose 6x1,5x266 mm lg. - 5100018315×1
  • 65100016451
    $23.20
    Spacer sleeve - 5100016451×2
  • 75000011538
    $1.80
    SCREW M8 X 45 SOC.HD. - 5000011538×2
  • 85000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×5
  • 95000011543
    $0.39
    SCREW M8 X 20 SOC.HD. - 5000011543×5
  • 105100027000
    $15.75
    Plug (threaded) - 5100027000×2
  • 115100021610
    $9.49
    Hose Fitting No. 6 x 1/8in NPT x 90 - 5100021610×1
  • 125100026164Not stocked
    Spinkler system cpl.×1
