WP1550R-VIBROPLATE

WP1550R Intake/Exhaust Diagram

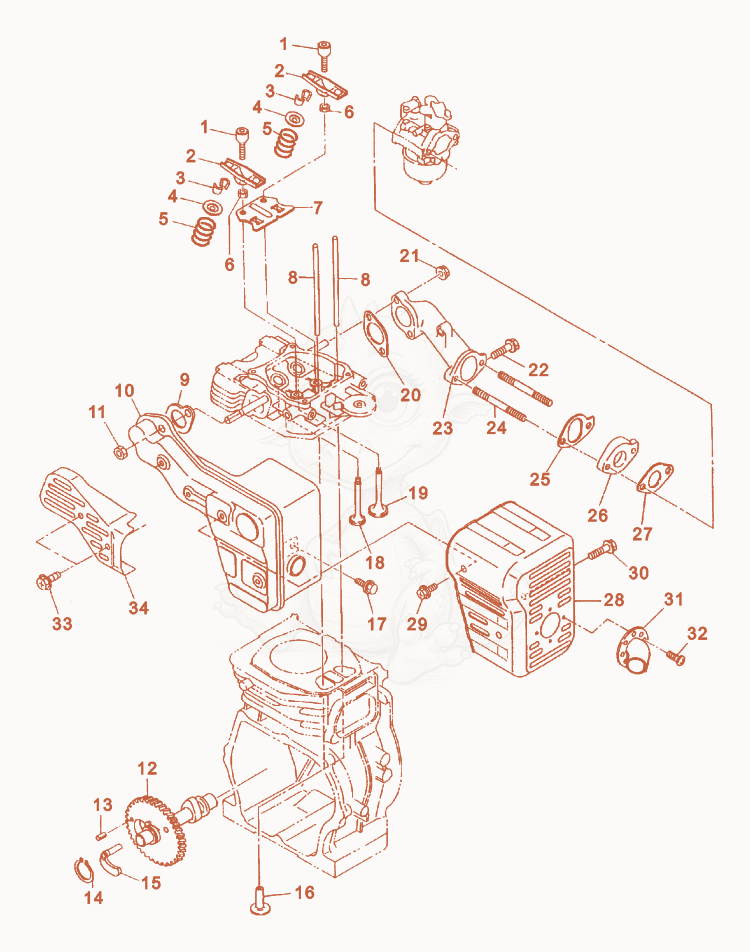

Exploded parts diagram of the Intake/Exhaust of a Wacker Neuson WP1550R, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000117237
$9.39
BOLT-PIVOT - 5000117237×2
25000117236
$29.40
rocker arm - 5000117236×2
35000114036Not stocked
Valve×4
45000114035
$15.30
RETAINER-VALVE SPRING - 5000114035×2
55000114034
$5.64
SPRING-VALVE - 5000114034×2
65000117238
$2.94
nut - 5000117238×2
75000117239
$3.62
PLATE-GUIDE - 5000117239×1
85000118035
$16.09
ROD-PUSH - 5000118035×2
95000084347
$4.24
GASKET-MUFFLER - 5000084347×1
105000118036Not stocked
Muffler×1
115000077523
$2.07
Nut - 5000077523×2
125000117230
$260.33
CAMSHAFT-COMPLETE - 5000117230×1
135000084336
$0.46
PIN-SPRING - 5000084336×1
145000084338
$2.86
SNAP RING - 5000084338×1
155000118037
$60.19
LEVER-RELEASE - 5000118037×1
165000117232
$26.03
TAPPET - 5000117232×2
175000053612Not stocked
Screw×1
185000118038
$91.40
VALVE-EXHAUST - 5000118038×1
195000118039
$57.39
VALVE-INTAKE - 5000118039×1
205000053613Not stocked
Gasket×1
215000053616
$1.72
NUT M6,HEX,FLANGE - 5000053616×2
225000084361
$2.07
BOLT-FLANGE - 5000084361×1
235000084356
$53.25
PIPE-INTAKE - 5000084356×1
245000084357
$2.70
Stud - 5000084357×2
255000084360
$1.34
GASKET-INSULATOR - 5000084360×1
265000084359
$11.54
Insulator - 5000084359×1
275000084362
$1.09
X-5000226058 GASKET-INSULATOR - 5000084362×1
285000084346
$54.89
MUFFLER-COVER - 5000084346×1
295000117241
$1.51
BOLT-TAPPING - 5000117241×2
305000117242
$3.96
BOLT-TAPPING - 5000117242×1
315000118040
$115.30
BAFFLE-EXHAUST - 5000118040×1
325000044808Not stocked
Self tapping screw×2
335000117241
$1.51
BOLT-TAPPING - 5000117241×2
345000117243
$35.31
COVER-EXHAUST PIPE - 5000117243×1
