WP1550R-VIBROPLATE

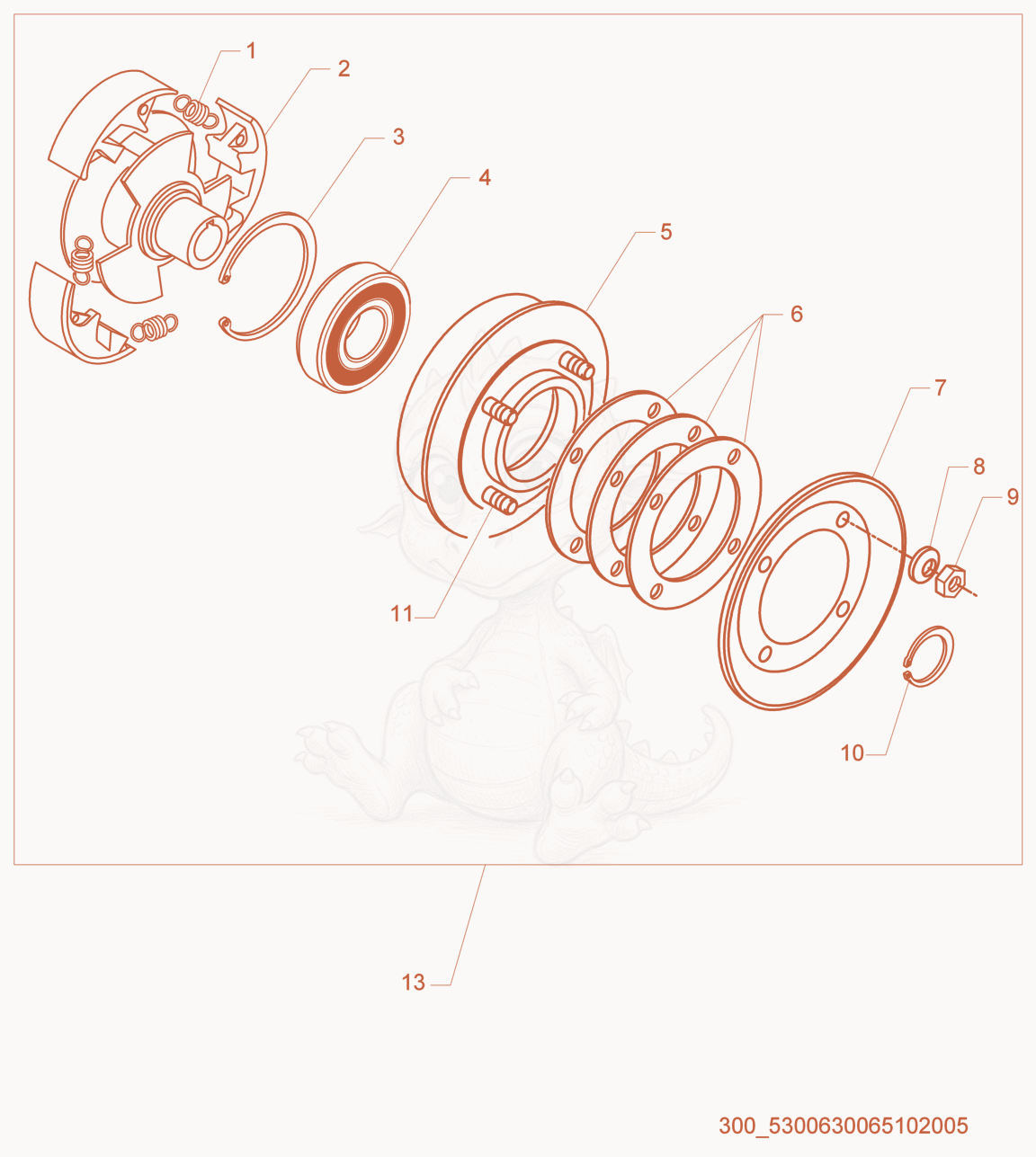

WP1550R Clutch cpl. Diagram
- SPRING-CLUTCH - 5000110776×3
- SHOE,CLUTCH,CENTRIFUGAL - 5000086230×3
- RET.RING - 5000071616×1
- BEARING-RADIAL BALL - 5000071615×1
- DRUM-CLUTCH - 5000110775×1
- SPACER-CLUTCH - 5000110773×3
- PULLEY-CLUTCH - 5000110774×1
- WASHER-LOCK B8 - 5000033198×4
- NUT-HEX - 5000110772×4
- RET.RING-EXT 29MMX1.5MM, - 5000025366×1
- SCREW-CLUTCH - 5000112045×4
- CLUTCH-ADJUSTABLE - 5000086968×1
