VIB. PLATE WPU1550Aw-CN

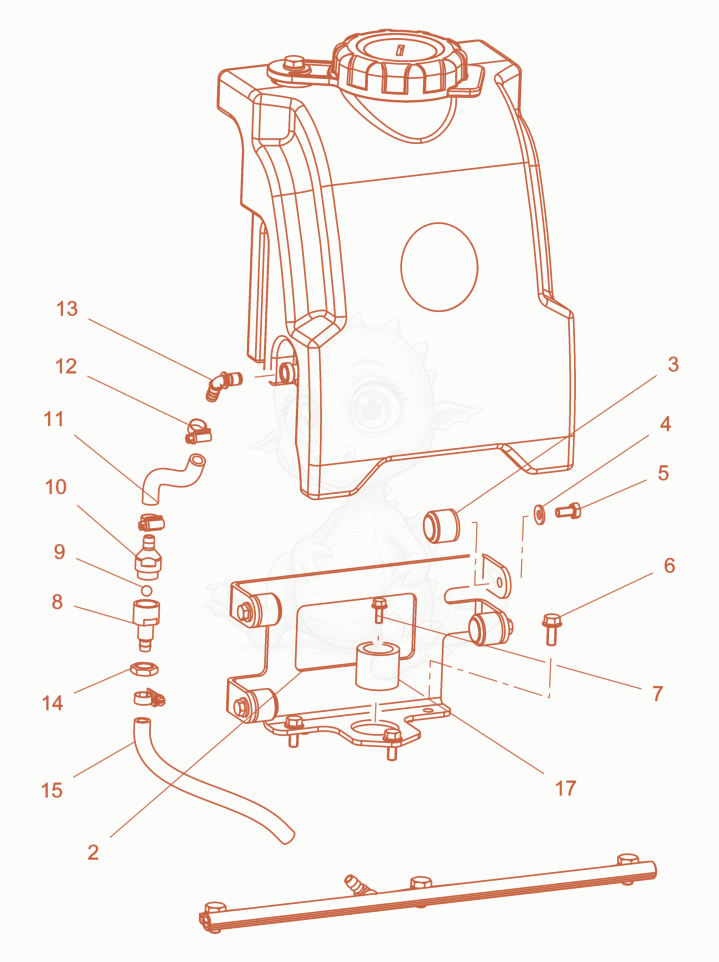

WPU1550AW-CN Water system cpl. Diagram
- BRACKET-TANK WELDMENT - 5000402029×1
- SHOCKMOUNT - 5100058399×4
- WASHER-LOCK B8 - 5000033198×4
- SCREW M8 X 16 HX.HD. - 5000012361×4
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×3
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×1
- VIBRATION VALVE-LOWER - 5000400347×1
- FLOAT BALL - 5000400405×1
- VIBRATION VALVE-UPPER - 5000400346×1
- 115100055834Not stockedHose×1
- CLAMP-HOSE - 5000402180×3
- 135000402315Not stockedMale coupling×1
- Nut - 5000401851×1
- 155100055835Not stockedHose×1
- 171000422322Not stockeddoor fastener×1
