VIB. PLATE WPU1550Aw-CN

WPU1550AW-CN Water tank Diagram

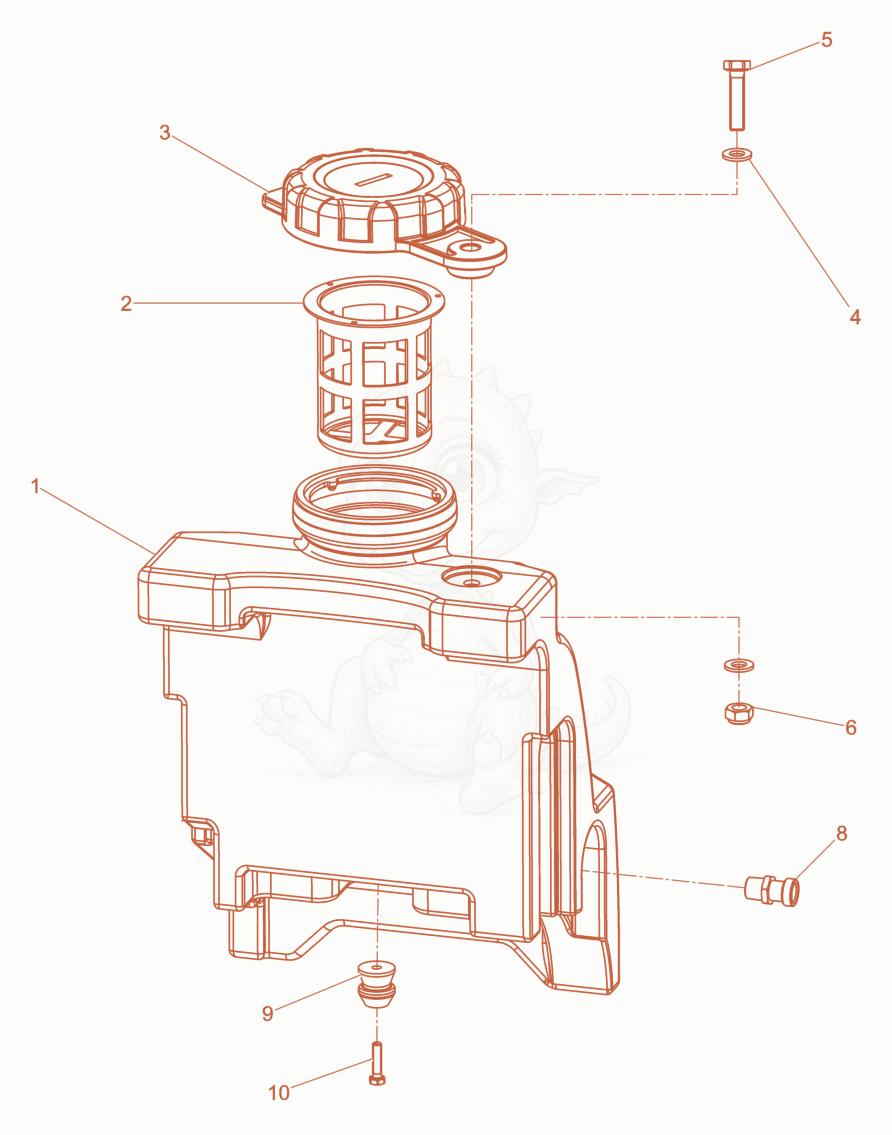

Exploded parts diagram of the Water tank of a Wacker Neuson WPU1550AW-CN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100066463Not stocked
    TANK-WATER×1
  • 25000401079
    $17.98
    FILTER TOP - 5000401079×1
  • 35000400786
    $27.51
    CAP-RUBBER - 5000400786×1
  • 45000401128
    $0.61
    WASHER-M10 - 5000401128×2
  • 55000401557
    $2.45
    SCREW M10 X 40 HX.HD - 5000401557×1
  • 65000401129
    $7.77
    NUT-LOCK,M10 - 5000401129×1
  • 85000402316Not stocked
    Coupling×1
  • 91000228596
    $14.37
    door stop (plastic male part) - 1000228596×1
  • 105000011469
    $0.09
    SCREW M6 X 25 HX.HD. - 5000011469×1
