Vibroplate XPS KMAT

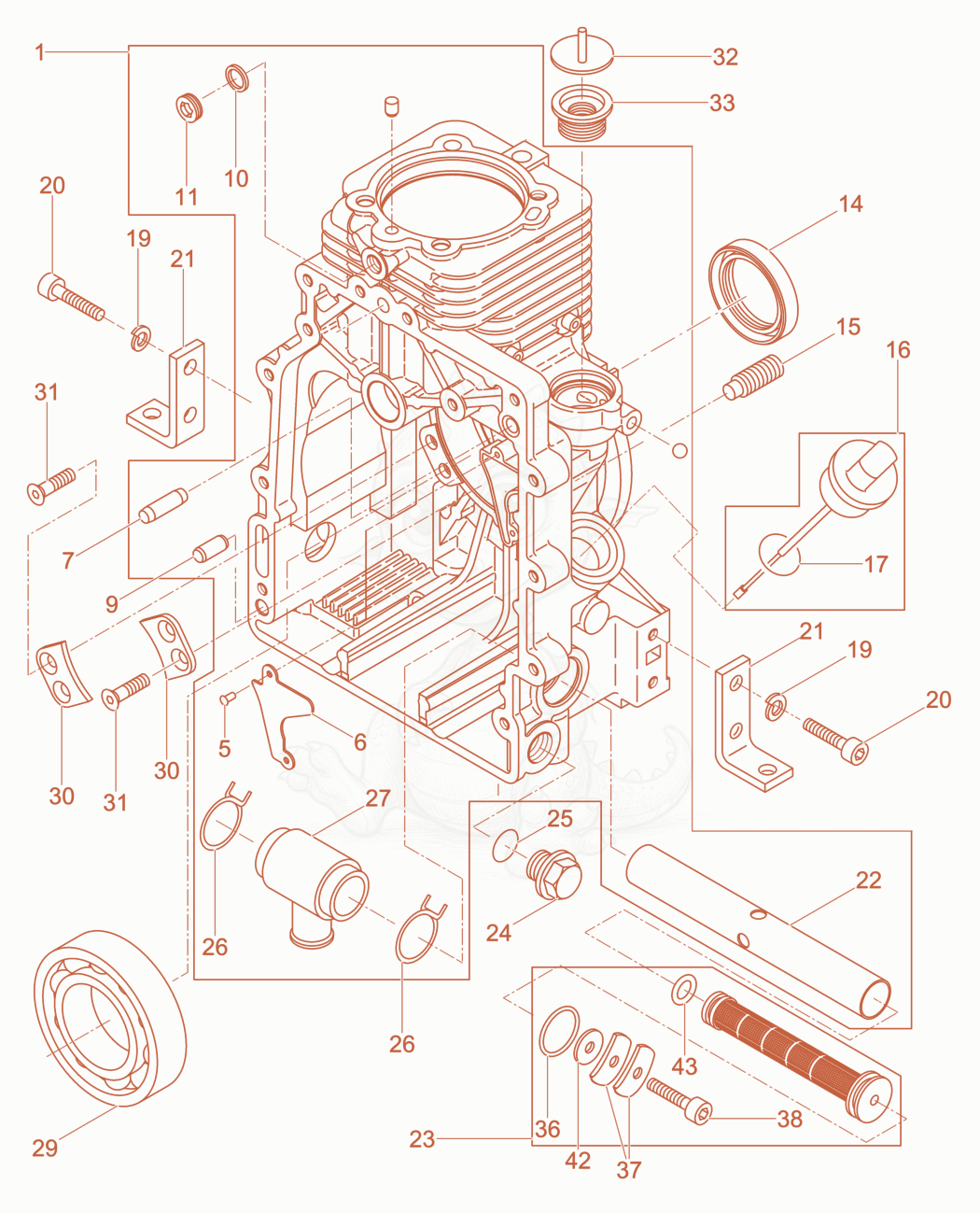

XPSKMAT crankcase Diagram

Exploded parts diagram of the crankcase of a Wacker Neuson XPSKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100067745Not stocked
    Crankcase×1
  • 55100038898Not stocked
    Blind rivet×2
  • 65100017212
    $24.90
    COVER-SHEET - 5100017212×1
  • 75000108694
    $8.06
    PIN-CYLINDER, 8M 6X20 - 5000108694×1
  • 95000108694
    $8.06
    PIN-CYLINDER, 8M 6X20 - 5000108694Unknown×1
  • 95000207615Not stocked
    Straight pin×1
  • 105000071121
    $6.11
    SEAL-RING A10 X 13.5,COPR - 5000071121×1
  • 115000151213
    $8.06
    SCREW M10X1 5.8 A3C - 5000151213×1
  • 145100086609Not stocked
    Rotary shaft seal×1
  • 155100051930Not stocked
    Threaded pin×1
  • 165000128995
    $38.72
    dipstick - 5000128995×1
  • 175000151217
    $7.02
    RING-SEALING - 5000151217×1
  • 195000151218
    $8.06
    WASHER-SPRING - 5000151218×8
  • 205000108683
    $8.06
    SCREW M8 X 35,ALLEN - 5000108683×8
  • 215000108682
    $35.06
    BRACKET-ENGINE - 5000108682×4
  • 225100086610Not stocked
    Housing×1
  • 235000108685
    $93.75
    X-5100016522 FILTER-OIL - 5000108685×1
  • 245000202314
    $39.96
    PLUG-OIL 22X1.5 - 5000202314×1
  • 255000202416
    $8.06
    SEAL-OIL - 5000202416×1
  • 265000108688
    $8.06
    CLIP-HOSE - 5000108688×2
  • 275100073067Not stocked
    Intake pipe×1
  • 295000108690
    $98.89
    BEARING-BALL,6308 - 5000108690×1
  • 305000108692
    $20.00
    PLATE - 5000108692×2
  • 315000209740
    $8.06
    SCREW-COUNTERSUNK M6 X 16 - 5000209740×4
  • 325000108676
    $36.45
    COVER - 5000108676×1
  • 335000094884
    $34.92
    Diaphragm - 5000094884×1
  • 365000151229
    $10.36
    O-RING, 20X4 - 5000151229×1
  • 375000151230
    $8.06
    SPRING-PLATE - 5000151230×2
  • 385000151231
    $8.06
    SCREW-ALLEN, M6X16 - 5000151231×1
  • 425000108851
    $8.06
    WASHER 6.5 X 22.5 X 1 - 5000108851×1
  • 435100053372Not stocked
    O-ring×1
