Vibroplate XPS KMAT

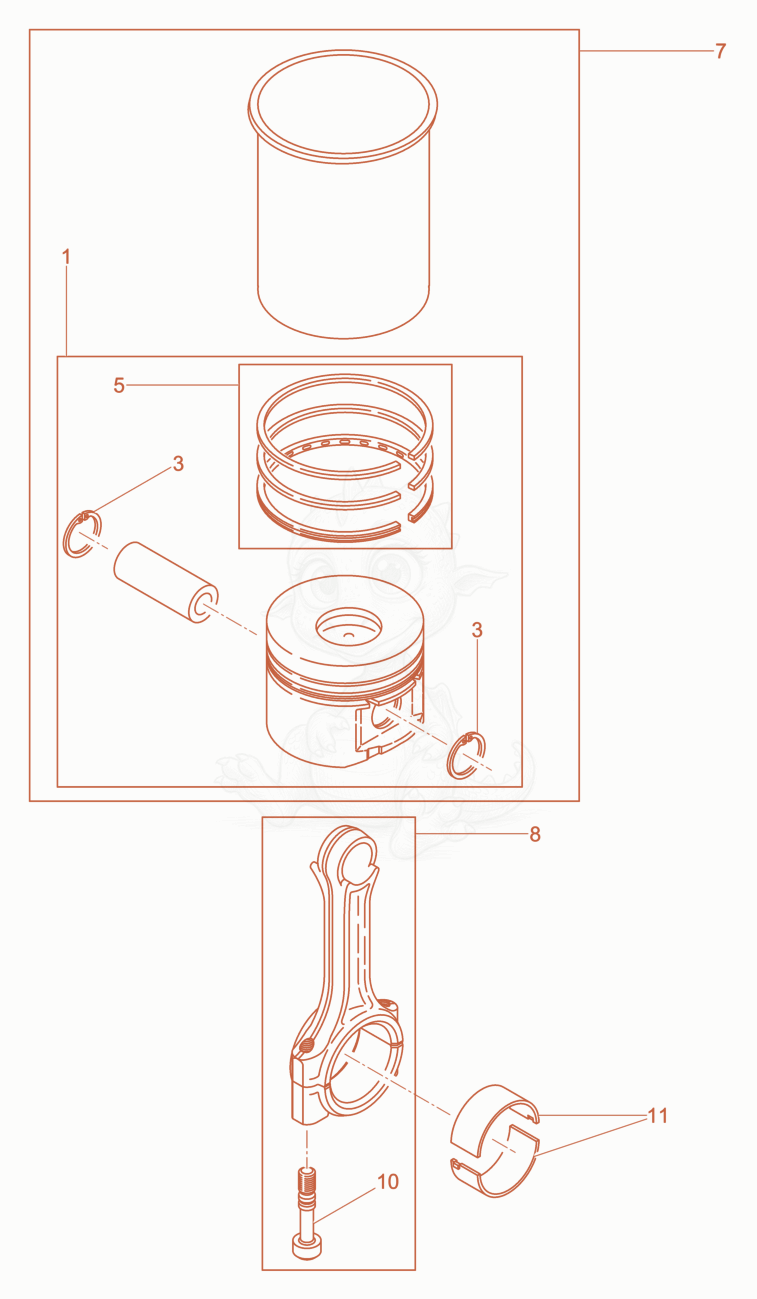

XPSKMAT Piston-Connecting Rod-Cylinder Diagram

Exploded parts diagram of the Piston-Connecting Rod-Cylinder of a Wacker Neuson XPSKMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000215769
    $241.80
    PISTON COMPL. - 5000215769×1
  • 35000108722
    $4.16
    CLIP-CIRCLE - 5000108722×2
  • 55000129030
    $135.36
    RING-PISTON SET - 5000129030×1
  • 75000215772
    $591.89
    CYLINDER W/PISTON - 5000215772×1
  • 85100086611Not stocked
    Connecting rod×1
  • 105000108720
    $35.06
    SCREW-CONNECTING ROD - 5000108720×2
  • 115000108717
    $87.67
    BEARING-END,BIG - 5000108717×1
  • 125000108718
    $189.01
    BEARING-END,BIG,0.5 - 5000108718×1
