Despiece de hydraulic tank · 1601

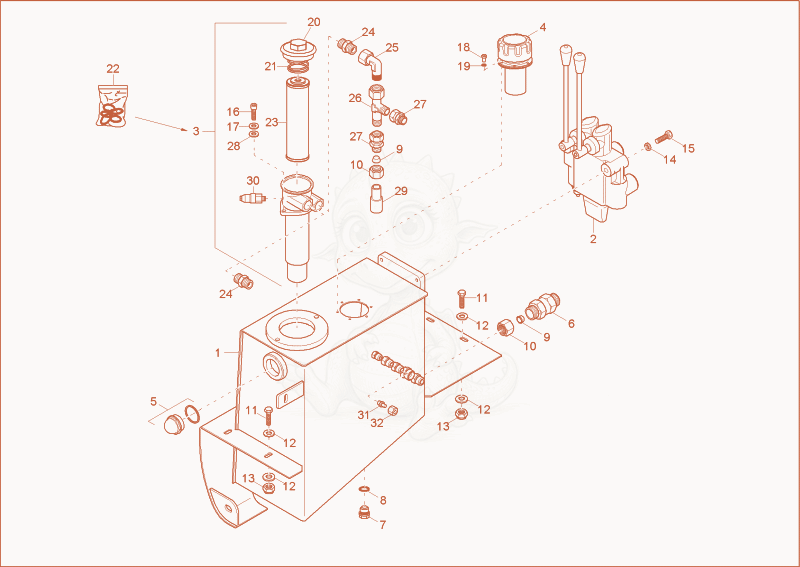

Despiece del hydraulic tank de una máquina Wacker Neuson 1601, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

11000064957No la vendemos
hydraulic tank×1
21000065027No la vendemos
control valve×1
31000062676No la vendemos
suction filter×1
41000001862No la vendemos
filler pipe×1
51000001852No la vendemos
view glass×1
61000065036
$48.72
RHD15LOMD-2BAR - 1000065036×1
71000082413
$8.23
LOCK SCREW - 1000082413×1
81000083619No la vendemos
seal ring×1
91000019585
$2.87
DPR15LX - 1000019585×2
101000019577No la vendemos
union nut×2
111000015343No la vendemos
hex screw×4
121000015448No la vendemos
washer×8
131000015416
$0.71
DIN985-M8-8-A2C - 1000015416×4
141000015437No la vendemos
lock washer×2
151000085318
$1.11
6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×2
161000085468
$0.42
cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×2
171000015438No la vendemos
lock washer×2
181000085544
$0.54
ovalhead screw - 1000085544×6
191000082621
$0.74
spring washer - 1000082621×6
201000068821No la vendemos
cover back flow filter×1
211000079036
$68.64
insert - 1000079036×1
221000068817No la vendemos
seal kit back flow filter×1
231000050807No la vendemos
filter element×1
241000083002
$13.45
GE22LR1EDOMDA3C - 1000083002×2
251000020261
$17.85
EW22LOMD - 1000020261×1
261000085045
$31.31
EL22LOMDA3C - 1000085045×1
271000085040
$7.68
RED22/15LOMDA3C - 1000085040×2
281000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×2
291000065024No la vendemos
adapter×1
301000062685
$107.54
X 1000257860 PRESSURE SWITCH - 1000062685×1
311000117411No la vendemos
lock cone×1
321000082838
$0.98
M10LA3CX - 1000082838×1
