Despiece de FRAME FRONT PART · 1601

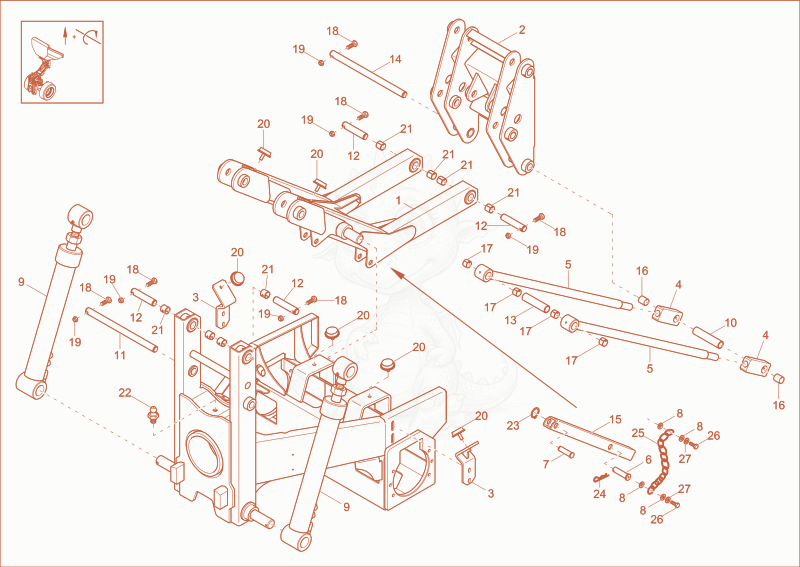

Despiece del FRAME FRONT PART de una máquina Wacker Neuson 1601, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

11000064960No la vendemos
lift arm×1
21000064966
$1,430.90
Bucketconsole 1000064966×1
31000064963No la vendemos
bucket support×2
41000065186No la vendemos
adjust block×2
51000064962No la vendemos
connection rod×2
61000065194No la vendemos
pin service support×1
71000065193No la vendemos
pin service support×1
81000095343
$1.42
washer A 6,4 St A2C DIN9021 - 1000095343×4
91000372023No la vendemos
lift cylinder×2
101000065133
$35.59
pipe - 1000065133×1
111000065134
$20.49
pin - 1000065134×1
121000065135
$15.73
PIN - 1000065135×4
131000065138
$40.39
pipe - 1000065138×1
141000065139
$22.05
pin - 1000065139×1
151000065195
$102.49
maintenance support - 1000065195×1
161000083235
$2.49
DX BUSHING - 1000083235×2
171000015622No la vendemos
dx bushing×4
181000085317
$0.97
hex screw M8x55-8.8 A2C-DIN931 - 1000085317×6
191000015416
$0.71
DIN985-M8-8-A2C - 1000015416×6
201000015621No la vendemos
rubber buffer×6
211000083234
$2.26
DX BUSHING - 1000083234×8
221000015475No la vendemos
grease nipple×1
231000095357
$2.56
LOCK RING - 1000095357×1
241000082627
$0.07
plug - 1000082627×1
251000097224
$40.66
CHAIN - 1000097224×0.3
261000018400No la vendemos
hex screw×2
271000015444No la vendemos
spring washer×2
