WN Dumper 6001

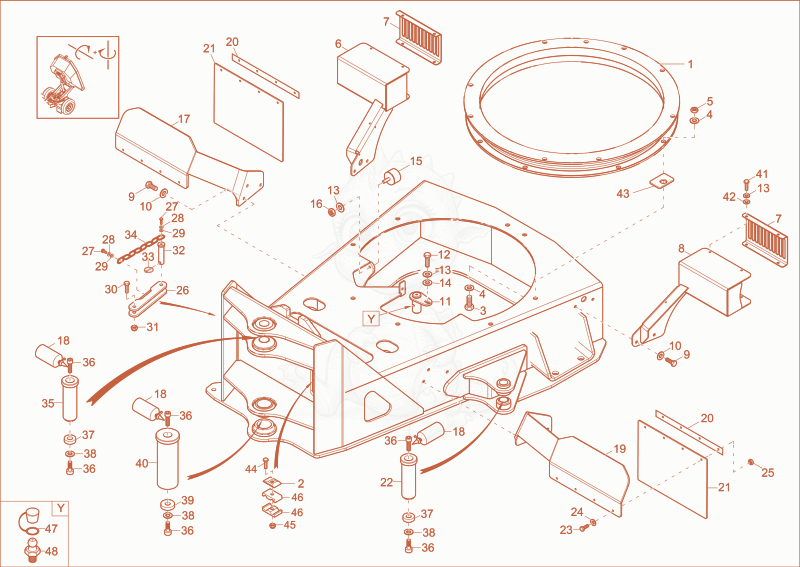

Despiece de frame front part (Option) · 6001

Despiece del frame front part (Option) de una máquina Wacker Neuson 6001, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000078267No la vendemos
    slewing ring×1
  • 21000022379No la vendemos
    cover plate×3
  • 31000015404No la vendemos
    hex screw×8
  • 41000015451No la vendemos
    northlock disc×16
  • 51000015423No la vendemos
    hexagon nut×8
  • 61000104149
    $198.80
    Headlighthousing 1000104149×1
  • 71000104151
    $50.37
    light protection screen - 1000104151×2
  • 81000104148
    $198.63
    Headlighthousing 1000104148×1
  • 91000015364No la vendemos
    hex screw×10
  • 101000015438No la vendemos
    lock washer×10
  • 111000068325No la vendemos
    slewing ram pin×2
  • 121000013008No la vendemos
    hex screw×2
  • 131000015437No la vendemos
    lock washer×12
  • 141000015448No la vendemos
    washer×2
  • 151000068315No la vendemos
    swing metal buffer×2
  • 161000015427No la vendemos
    hexagon nut×2
  • 171000166857
    $390.38
    DUST CATCH BRACKET - 1000166857×1
  • 181000081586
    $88.97
    seal connection - 1000081586×1
  • 191000255316
    $1,417.69
    Dustcatchbracket 1000255316×1
  • 201000001639No la vendemos
    fastener rail×2
  • 211000001638No la vendemos
    dust catch×2
  • 221000104131
    $96.03
    STEERING RAM PIN - 1000104131×1
  • 231000082528
    $0.93
    cheese head screw - 1000082528×8
  • 241000082621
    $0.74
    spring washer - 1000082621×8
  • 251000085587
    $0.03
    HEXAGON NUT - 1000085587×8
  • 261000104145
    $235.52
    Bucklesupport 1000104145×1
  • 271000018400No la vendemos
    hex screw×2
  • 281000015444No la vendemos
    spring washer×2
  • 291000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
  • 301000130667
    $2.39
    HEX SCREW - 1000130667×1
  • 311000020788No la vendemos
    hexagon nut×1
  • 321000166858
    $21.29
    PIN - 1000166858×1
  • 331000015457No la vendemos
    cotter pin×1
  • 341000097224
    $40.66
    CHAIN - 1000097224×0.3
  • 351000104126
    $258.97
    PIN - 1000104126×1
  • 361000015363No la vendemos
    cheese head screw×6
  • 371000104143
    $9.01
    washer - 1000104143×2
  • 381000015439No la vendemos
    lock washer×3
  • 391000104049
    $47.81
    end piece - 1000104049×1
  • 401000104048
    $393.80
    Pin 1000104048×1
  • 411000085389
    $0.73
    hex screw M8x12-8.8 A2C DIN933 - 1000085389×8
  • 421000015448No la vendemos
    washer×8
  • 431000252801
    $5.07
    WASHER - 1000252801×8
  • 441000018447No la vendemos
    hex screw×3
  • 451000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×3
  • 461000083285
    $1.23
    clamp Body - 1000083285×6
  • 471000015480No la vendemos
    cap grease nipple×2
  • 481000015475No la vendemos
    grease nipple×2
