WN Dumper 6001

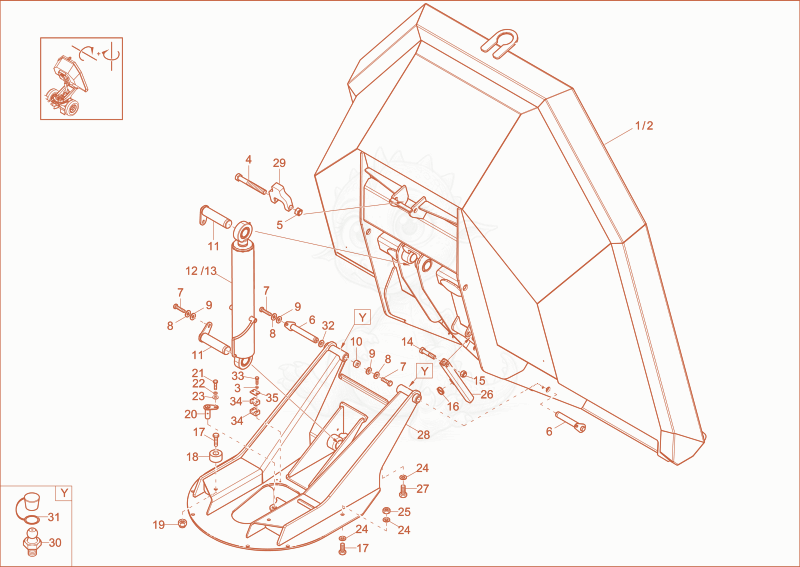

Despiece de skip (Option) · 6001
- skip - 1000321761×1
- bucket - 1000319857×1
- 31000015444No la vendemosspring washer×2
- hex screw - 1000189843×1
- 51000049089No la vendemoshexagon nut×1
- bucket tilt pin - 1000104147×2
- 71000015364No la vendemoshex screw×6
- 81000015438No la vendemoslock washer×6
- washer M10-DIN134 - 1000094974×6
- 101000020523No la vendemospin piece×2
- Pintiltram 1000104045×2
- Tiltram 1000101489×1
- Tiltram 1000174245×1
- HEX SCREW - 1000085345×1
- 151000018412No la vendemoshexagon nut×1
- 161000015457No la vendemoscotter pin×1
- 171000015404No la vendemoshex screw×8
- bucket support - 1000114225×2
- 191000020788No la vendemoshexagon nut×2
- 201000068326No la vendemosslewing ram pin×2
- 211000019136No la vendemoshex screw×4
- 221000015437No la vendemoslock washer×4
- 231000015431No la vendemoswasher×4
- 241000015451No la vendemosnorthlock disc×16
- 251000015423No la vendemoshexagon nut×8
- Maintenancesupport 1000104044×1
- 271000047713No la vendemoshex screw×2
- swivel console - 1000320398×1
- Swivellock 1000166855×1
- 301000015476No la vendemosgrease nipple×2
- 311000015480No la vendemoscap grease nipple×2
- fitting disc - 1000095348×8
- hex screw - 1000085311×4
- 341000022327No la vendemosclamp body×4
- 351000015627No la vendemoscover plate×2
