803-2

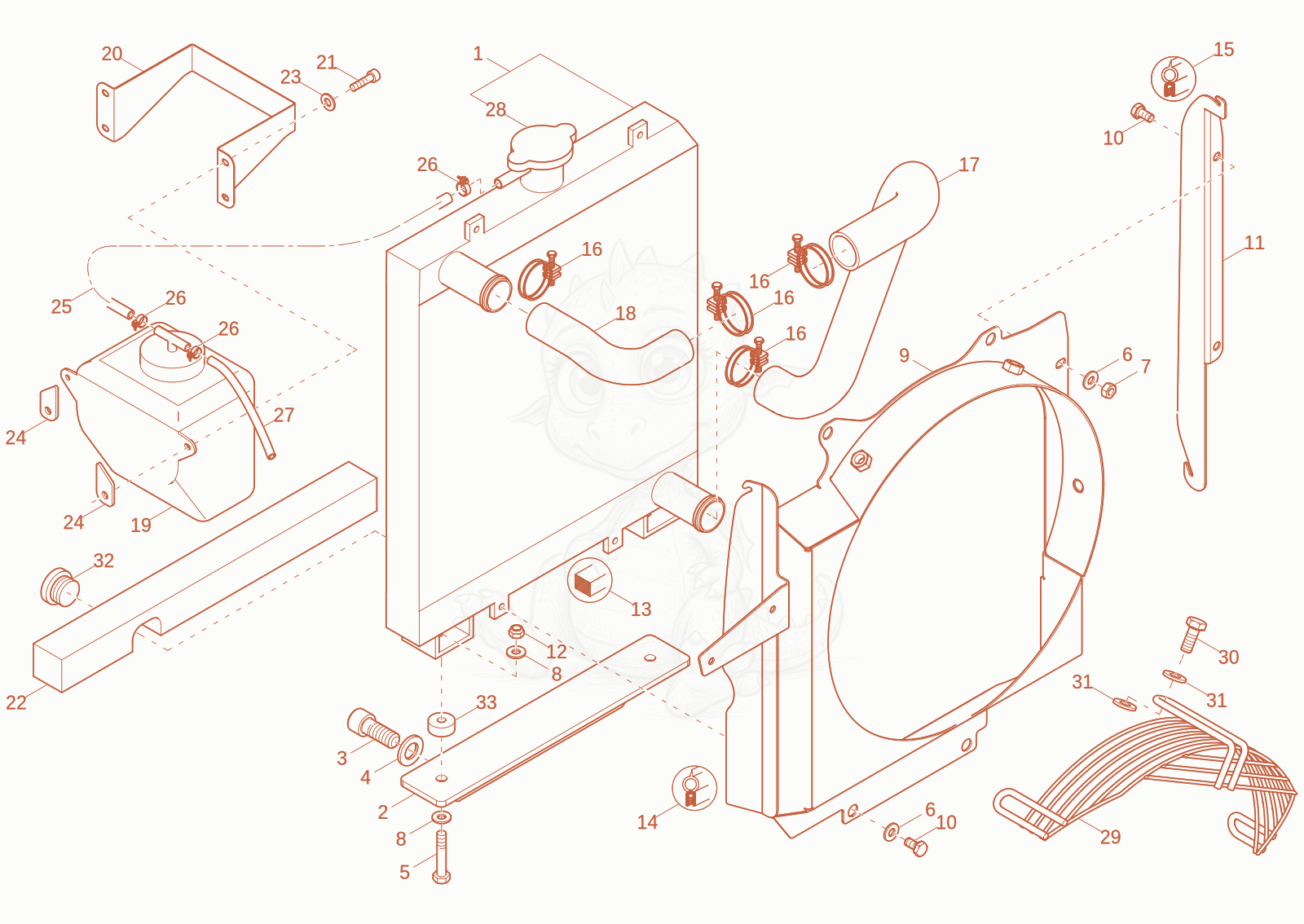

Despiece de COOLER · 803-2

Despiece del COOLER de una máquina Wacker Neuson 803-2, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000327507No la vendemos
    water cooler×1
  • 21000256108No la vendemos
    bracket cooler×1
  • 31000085510
    $1.03
    allen screw M 12x30-10.9DACRO500DIN912 - 1000085510×2
  • 41000082638
    $0.73
    washer 13 -DIN134 - 1000082638×2
  • 51000015339No la vendemos
    hex screw×2
  • 61000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×6
  • 71000015405No la vendemos
    hexagon nut×2
  • 81000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×4
  • 91000256109
    $122.62
    cooler plate - 1000256109×1
  • 101000020553No la vendemos
    hex screw×6
  • 111000256110
    $36.18
    AIR GUIDING PLATE - 1000256110×1
  • 121000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 131000098196
    $0.67
    seal strap foam 10x15 - 1000098196×1.5
  • 141000098164
    $21.58
    rubber profile 1,5-3mm - 1000098164×0.5
  • 151000098164
    $21.58
    rubber profile 1,5-3mm - 1000098164×0.3
  • 161000083306
    $2.46
    HOSE CLAMP 26-38mm - 1000083306×4
  • 171000261322
    $18.69
    WATER HOSE - 1000261322×1
  • 181000261323
    $15.41
    WATER HOSE - 1000261323×1
  • 191000190121
    $44.26
    TANK COOLANT OVERFLOW - 1000190121×1
  • 201000129364
    $16.63
    clamp bar - 1000129364×1
  • 211000085452
    $0.70
    allen screw M5x20-8.8 A2C DIN912 - 1000085452×4
  • 221000500755No la vendemos
    insulating mat×1
  • 231000095342
    $1.22
    washer X-1000092302 - 1000095342×4
  • 241000129363
    $7.22
    shim - 1000129363×2
  • 251000411932No la vendemos
    fuel line×0.75
  • 261000267809
    $3.22
    clamp hose 15.3 - 1000267809×3
  • 271000411932No la vendemos
    fuel line×0.4
  • 281000164850
    $11.90
    COOLER CAP - 1000164850×1
  • 291000261142
    $148.61
    protecting screen - 1000261142×1
  • 301000013008No la vendemos
    hex screw×3
  • 311000013027No la vendemos
    washer×6
  • 321000022438No la vendemos
    screw joint×1
  • 331000288817
    $1.41
    rubber disc - 1000288817×2
