803-2

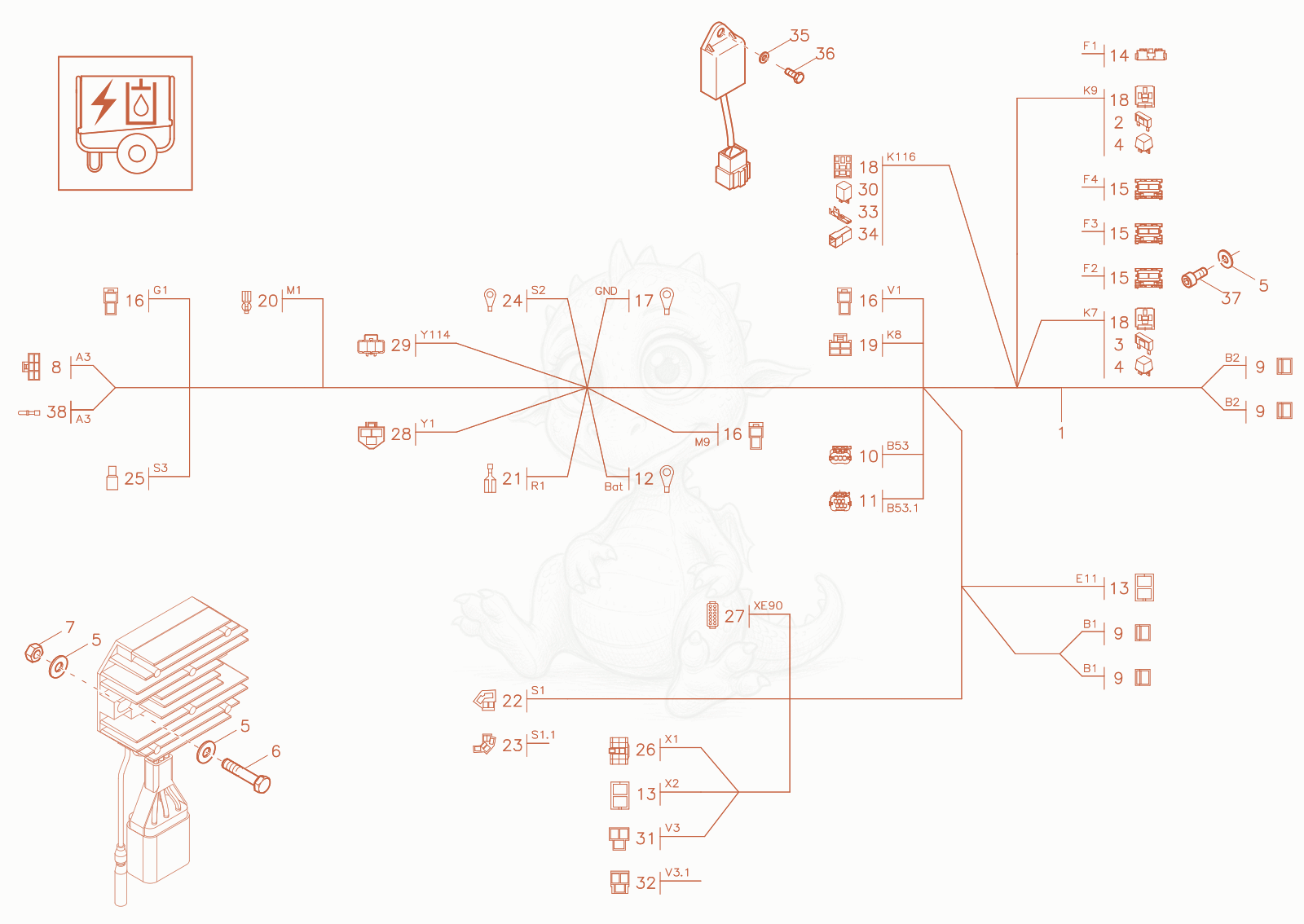

Despiece de WIRE HARNESS CHASSIS, ENGINE (option) · 803-2

11000312404No la vendemos
wiring harness engine×1
21000015302
$3.50
fuse - 1000015302×1
31000085682
$0.43
fuse - 1000085682×3
41000353650No la vendemos
relay×2
51000094967
$0.65
Washer M5,3-DIN134 - 1000094967×6
61000085380
$0.03
hex screw - 1000085380×2
71000085581
$1.51
HEXAGON NUT - 1000085581×2
81000105098
$5.04
plug sleeve housing - 1000105098×1
91000027435No la vendemos
insulating sleeve×4
101000260159
$11.15
bushing housing - 1000260159×1
111000288405
$14.40
bushing housing - 1000288405×1
121000096859
$1.08
CABLE LUG - 1000096859×1
131000095336No la vendemos
plug sleeve housing×2
141000027186
$10.05
Bracket - 1000027186×1
151000027193
$3.31
Bracket - 1000027193×3
161000101072
$0.75
plug sleeve housing - 1000101072×3
171000107754
$2.77
cable lug - 1000107754×1
181000100546
$3.91
HOUSING - 1000100546×3
191000051986No la vendemos
plug sleeve housing×1
201000089776
$1.67
PLUG SLEEVE - 1000089776×1
211000081742
$2.88
plug housing - 1000081742×1
221000027368No la vendemos
central plug×1
231000027386
$6.47
PLUG - 1000027386×1
241000050027No la vendemos
cable lug×1
251000027384No la vendemos
round socket sleeve×1
261000095321
$5.84
bushing housing - 1000095321×1
271000254182
$29.32
bushing housing - 1000254182×1
281000167178
$6.73
PLUG SLEEVE HOUSING - 1000167178×1
291000288403
$17.31
Bushing Housing - 1000288403×1
301000312266
$204.91
relais - 1000312266×1
311000095339
$4.61
plug sleeve housing - 1000095339×1
321000095338
$3.67
plug housing - 1000095338×1
331000095367
$0.62
PLUG - 1000095367×2
341000000481No la vendemos
plug housing×1
351000015430No la vendemos
u-washer×1
361000085382
$0.70
HEX SCREW - 1000085382×1
371000085494
$1.08
allen screw M 5x12-8.8 A2C DIN912 - 1000085494×2
381000027252No la vendemos
round socket×1
