DPU 130Le

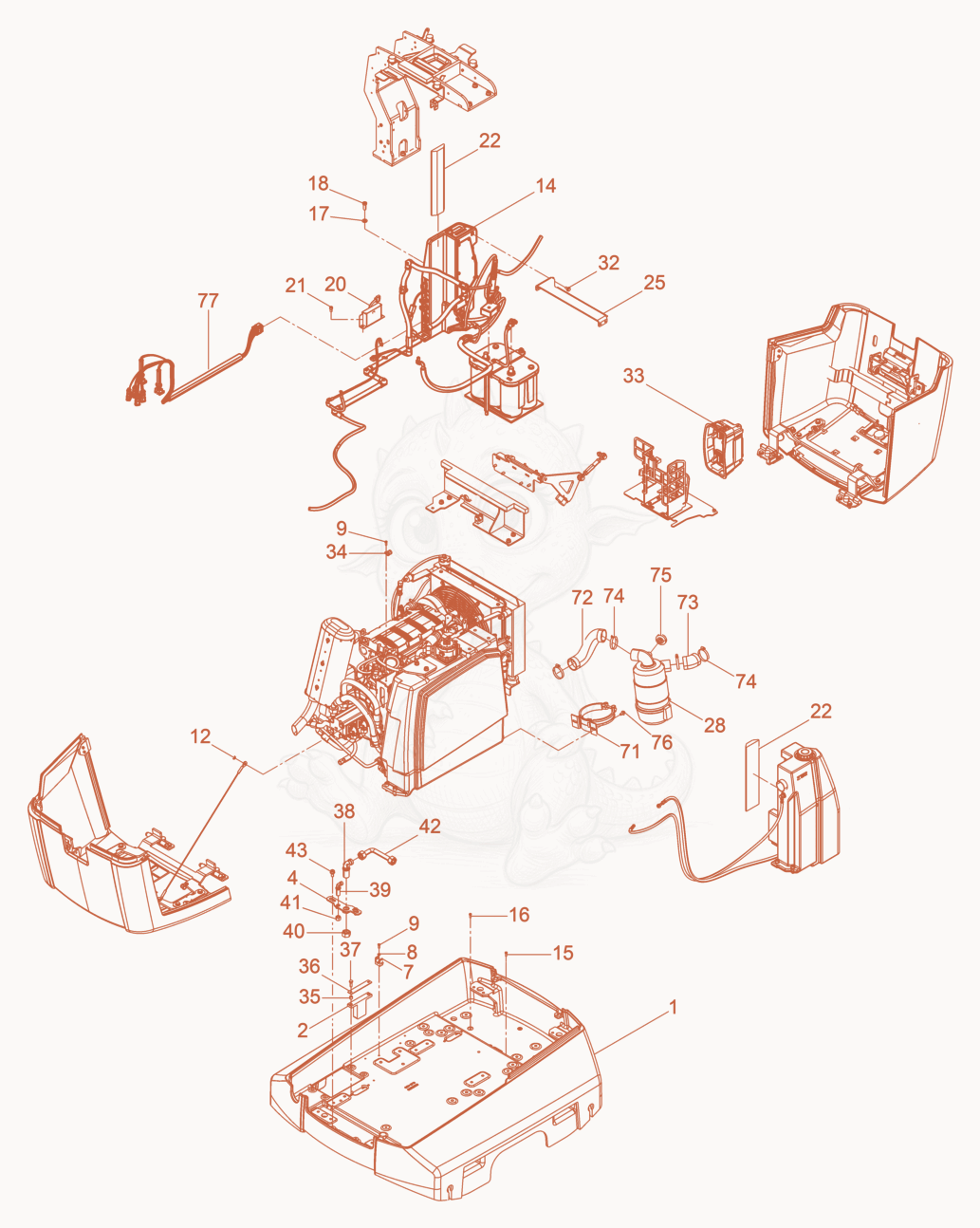

Despiece de Upper mass · DPU130LE
- Upper Mass - 5000205360×1
- LIMIT STOP - 5000205362×2
- Plate - 5000206538×1
- CLAMP - 5000210107×5
- WASHER B6.4 FLAT - 5000010624×5
- Screw - 5000211755×8
- NUT-LOCK VM8 HEX - 5000033356×1
- 145100006140No la vendemosElectric cpl.×1
- SCREW M10 X 16 SOC.HD. - 5000012381×1
- SCREW M6 X 12 SOC.HD. - 5000011554×1
- WASHER B10.5 FLAT - 5000010621×3
- SCREW M10 X 30 SOC.HD. - 5000011534×3
- SENSOR-OVERLOAD - 5000209156×1
- SCREW M8 X 16 SOC.HD. - 5000011544×2
- seal - 5000206583×2
- CONNECTION - 5000206578×1
- Air cleaner - 5000206421×1
- CLIP-AIRFILTER BOX - 5000171456×2
- ELEMENT-AIR CLEANER FILTER - 5000160171×1
- SCREW-CORRUGATED HD. - 5000211795×4
- Transmitter - 5000206484×1
- Clamp - 5000212145×1
- BUSHING - 5000128746×4
- Reinforcement - 5000207331×2
- SCREW M8 X 25 HX.HD. - 5000011457×4
- SCREW CONNECTION - 5000205239×1
- SCREW CONNECTION - 5000205238×1
- CAP-NOSE - 5000211774×1
- CAP-NOSE - 5000211773×1
- Tube - 5000206498×1
- SCREW-CORRUGATED HEAD - 5000210112×2
- CLAMP - 5000206423×1
- HOSE-SUCTION - 5000206424×1
- HOSE-SUCTION - 5000206420×1
- CLAMP 50-70 WORM DRIVE - 5000014996×4
- Switch - 5000206422×1
- SCREW-CORRUGATED HD. - 5000211795×2
- 775100031275No la vendemosCable harness Valve×1
