DPU 130Le

Despiece de Cylinder head · DPU130LE

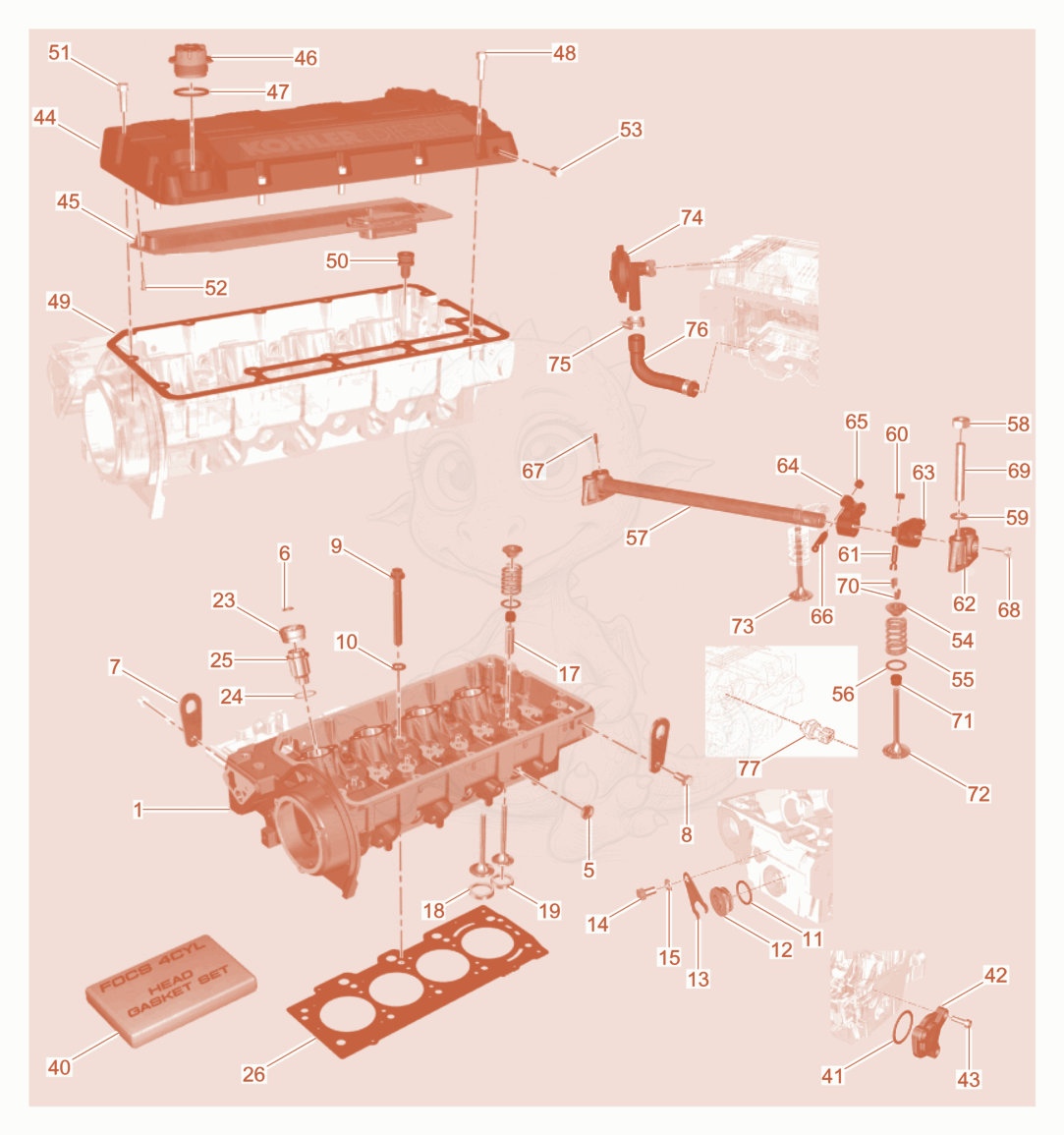

Despiece del Cylinder head de una máquina Wacker Neuson DPU130LE, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15200015507No la vendemos
    Cylinder head cpl.×1
  • 55000159449
    $1.90
    PLUG-EXPANSION 18mm - 5000159449×6
  • 65000159318
    $3.10
    spark arrester - 5000159318×4
  • 75000215524
    $6.19
    BRACE-LIFTING - 5000215524×2
  • 85000084156
    $1.54
    SCREW M8 X 16 - 5000084156×1
  • 95000217828
    $16.43
    SCREW-FLANGE - 5000217828×10
  • 105000159350
    $3.10
    washer - 5000159350×10
  • 115000159231
    $2.61
    O-ring - 5000159231×1
  • 125000159453
    $17.83
    PLUG-ALUMINUM - 5000159453×1
  • 135000159311
    $15.72
    RETAINER - 5000159311×1
  • 145000159254
    $1.72
    BOLT M8 X 14 - 5000159254×1
  • 155000082292
    $1.54
    Washer - 5000082292×1
  • 175000159303
    $12.94
    GUIDE-VALVE - 5000159303×8
  • 185000160381
    $34.40
    VALVE GUIDE-INTAKE - 5000160381×4
  • 195000160382
    $33.64
    VALVE GUIDE-EXHAUST - 5000160382×4
  • 235000159285
    $19.94
    nut - 5000159285×4
  • 245000215494
    $3.62
    Spacer - 5000215494×12
  • 255000160380
    $309.14
    BOWL-PRECOMBUSTION CHAMBER - 5000160380×4
  • 265100054566No la vendemos
    Cylinder head gasket×1
  • 265100054567No la vendemos
    Cylinder head gasket×1
  • 265100054568No la vendemos
    Cylinder head gasket×1
  • 405000217819
    $268.03
    KIT-MAINTENANCE,CLYDR HEAD - 5000217819×1
  • 415000159234
    $2.84
    O-RING - 5000159234×1
  • 425000159282
    $21.34
    flange - 5000159282×1
  • 435000215541
    $2.32
    SCREW M6 X 20 - 5000215541×3
  • 445000217803
    $829.13
    COVER - 5000217803×1
  • 455200015515No la vendemos
    Panel×1
  • 465000227761
    $25.74
    Cap - 5000227761×1
  • 475000206208No la vendemos
    O-ring×1
  • 485000215541
    $2.32
    SCREW M6 X 20 - 5000215541×12
  • 495000211355
    $59.50
    Gasket - 5000211355×1
  • 505000159308
    $10.34
    CONNECTOR-RUBBER - 5000159308×1
  • 515000215544
    $1.54
    Screw - 5000215544×2
  • 525100008855
    $1.82
    Rivet - 5100008855×12
  • 535000159455
    $7.12
    PLUG 8 DIA. - 5000159455×1
  • 545000159328
    $15.52
    SPRING-RETAINER - 5000159328×4
  • 555000160373
    $10.59
    SPRING-VALVE - 5000160373×8
  • 565000159351
    $2.84
    washer - 5000159351×8
  • 575000215717
    $356.46
    SHAFT-ROCKER ARM - 5000215717×1
  • 575000215718
    $1,267.65
    ROCKER ARM ASSY - 5000215718×1
  • 585000083011
    $1.54
    NUT M10 - 5000083011×5
  • 595000159350
    $3.10
    washer - 5000159350×5
  • 605000159272
    $1.30
    nut - 5000159272×1
  • 615000159482
    $46.06
    screw - 5000159482×1
  • 625000159447
    $44.45
    SHAFT SUPPORT - 5000159447×5
  • 635000159248
    $196.60
    rocker arm - 5000159248×8
  • 645000159249
    $150.05
    ROCKER-INJECTOR - 5000159249×4
  • 655000159275
    $3.72
    nut - 5000159275×1
  • 665000159483
    $35.18
    STUD - 5000159483×1
  • 675000159443
    $1.06
    pin - 5000159443×1
  • 685000215529
    $15.77
    Plug - 5000215529×2
  • 695000159333
    $7.76
    STUD - 5000159333×5
  • 705100008856
    $4.35
    Bush - 5100008856×16
  • 715000159297
    $11.12
    SEAL-GUIDE - 5000159297×8
  • 725000160390
    $34.66
    VALVE-INTAKE - 5000160390×4
  • 735000160392
    $49.16
    VALVE-EXHAUST - 5000160392×4
  • 745000102140No la vendemos
    Pressure relief valve×1
  • 755000160201
    $4.14
    clamp - 5000160201×2
  • 765000159460
    $21.18
    PIPE-DRAIN - 5000159460×1
  • 775100006062No la vendemos
    Oil pressure switch×1
