DPU130Le

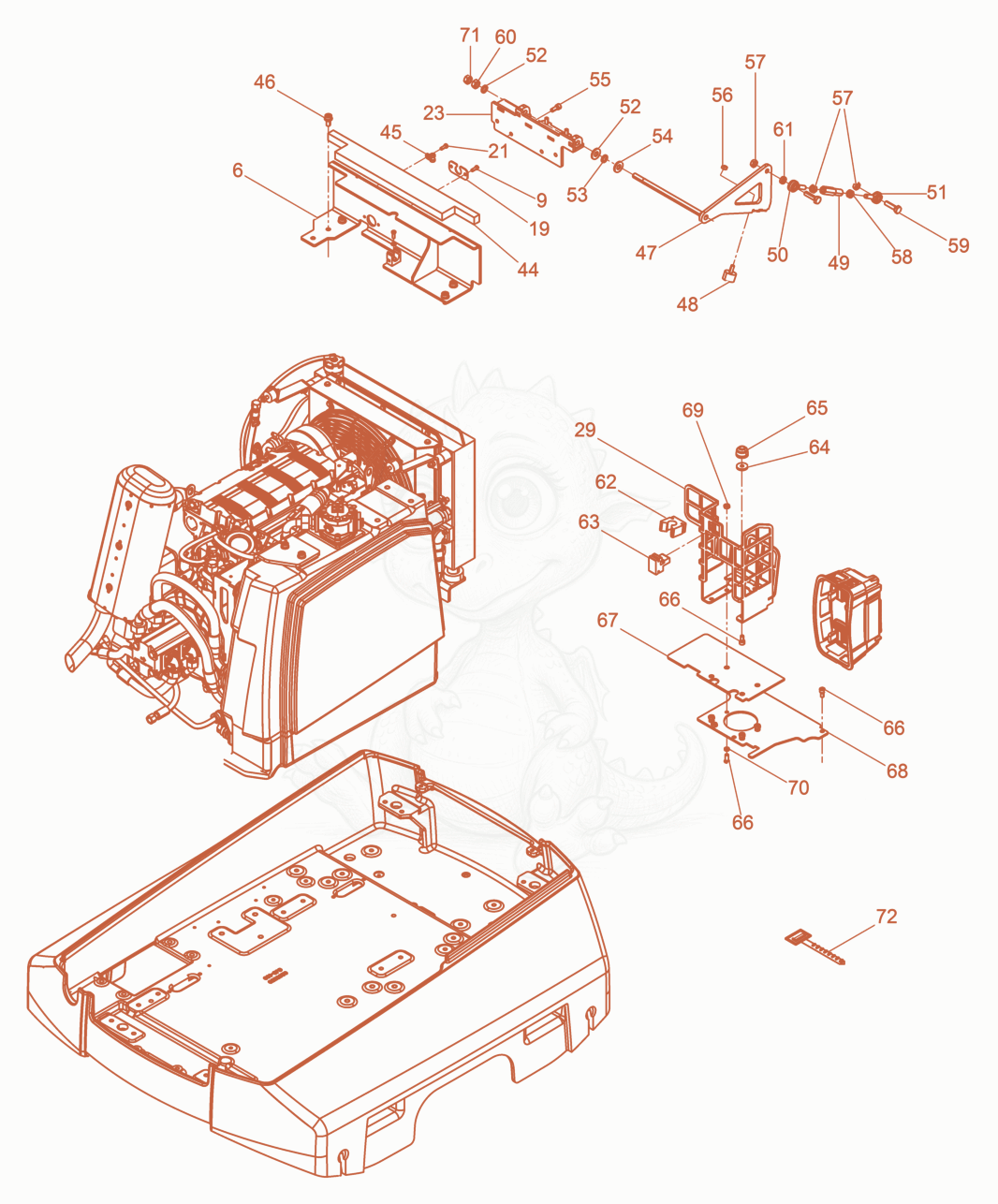

Despiece de Upper mass - rear end · DPU130LECH/US
- BULKHEAD ASSEMBLY - 5000210143×1
- Screw - 5000211755×2
- Plate - 5000212141×1
- SCREW M8 X 16 SOC.HD. - 5000011544×1
- ANGLE CPL. - 5000211792×1
- CONNECTION - 5000206578×1
- Bracket - 5000207750×1
- Seal - 5000206582×1
- Clamp - 5000212143×1
- SCREW-CORRUGATED HEAD - 5000210111×4
- LEVER-YOKE - 5000211754×1
- SHOCKMOUNT - 5000210113×2
- NUT-LOCK - 5000210136×1
- HEAD-JOINT - 5000210134×1
- HEAD-JOINT - 5000210135×1
- WASHER 13 - 5000010740×2
- WASHER-SUPPORTING - 5000210132×1
- WASHER-LOCK A12 - 5000031565×2
- SCREW M8 X 20 SOC.HD. - 5000011543×1
- NUT M30 HEX.JAM - 5000010822×2
- NUT M10 8,HEX - 5000010883×1
- NUT-HEX - 5000211790×1
- 595000011437No la vendemosHexagonal head cap screw×2
- NUT M12 8,HEX - 5000010884×2
- Bushing - 5000210133×1
- BRACKET - 5000208255×1
- BRACKET - 5000207753×1
- WASHER - 5000031632×2
- SHOCKMOUNT-M30X20,SPECIAL - 5000105056×2
- SCREW M8 X 16 SOC.HD. - 5000011544×4
- COVER-POSITIVE POLE - 5000207749×1
- COVER - 5000210142×1
- NUT M8 8,HEX - 5000010882×6
- Bushing - 5000212623×4
