DPU130Le

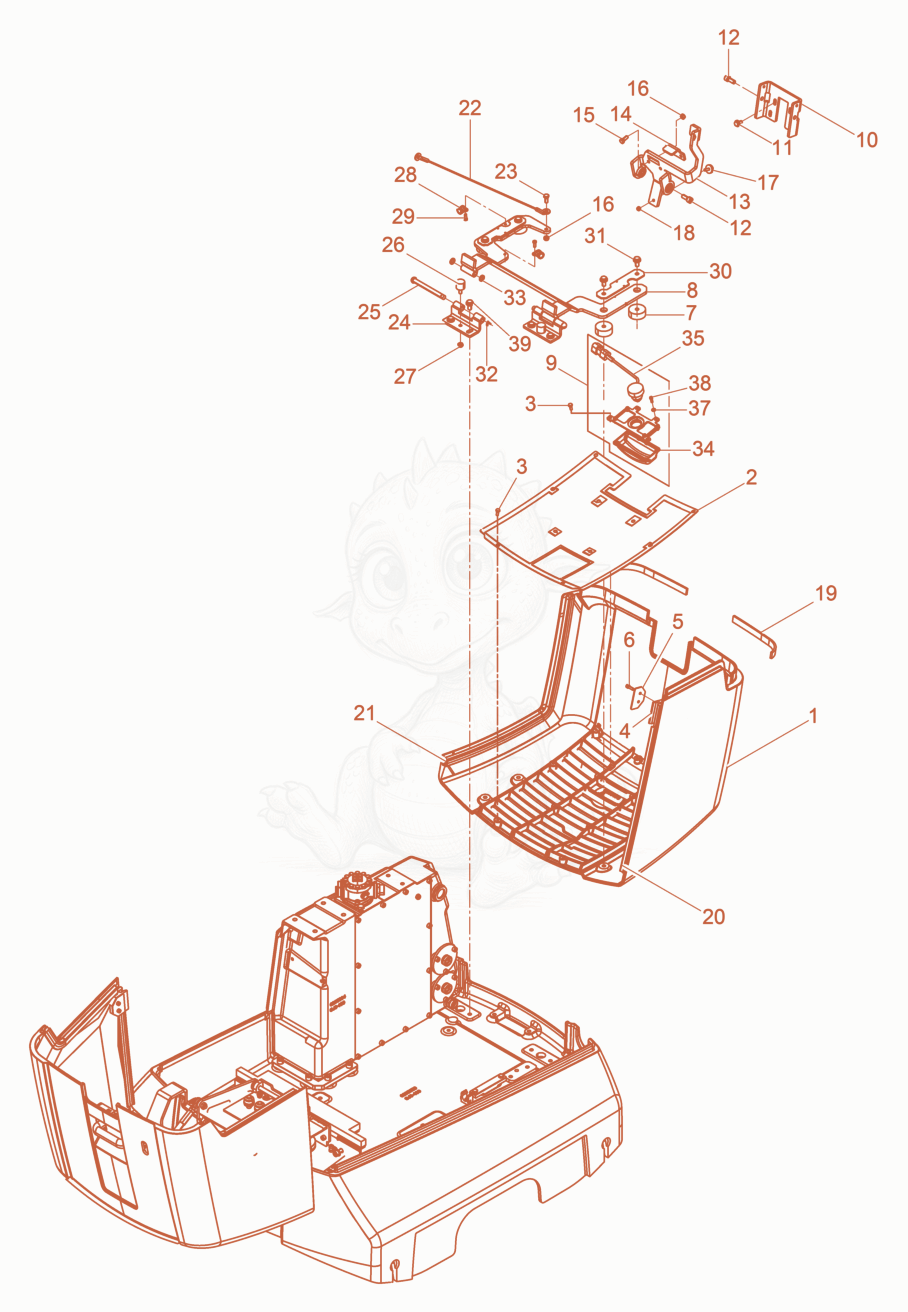

Despiece de Bonnet front · DPU130LECH/US
- BONNET,FRONT - 5000206479×1
- Grid - 5000208273×1
- screw - 5000204408×14
- Fixation - 5000205367×1
- Reinforcement - 5000207332×1
- SCREW M6 X 20 SOC.HD. - 5000011551×2
- Shockmount - 5000206517×4
- Hinge - 5000206510×1
- RECEIVER UNIT-FRONT - 5000209131×1
- Support - 5000209110×1
- SCREW-CORRUGATED HD. - 5000211795×4
- SCREW M10 X 25 SOC.HD. - 5000011535×2
- Lever cpl. - 5000209138×1
- Plate - 5000209136×1
- SCREW M8 X 25 HX.HD. - 5000011457×2
- NUT-LOCK VM8 HEX - 5000033356×3
- SHOCKMOUNT 25 X 8.5,FORM D - 5000058648×1
- NUT-LOCK M6 HEX. - 5000010368×1
- seal - 5000209153×2
- GUARD-EDGE PROTECTION - 5000211796×1
- GUARD-EDGE PROTECTION - 5000211797×1
- CABLE-LANYARD - 5000154402×1
- SCREW M8 X 20 HX.HD. - 5000012362×1
- Hinge - 5000206505×2
- bolt - 5000220132×2
- Shockmount 25x27 - 5100001430×2
- NUT-LOCK M8 HEX - 5000010367×2
- Clamp - 5000212145×3
- Screw - 5000211755×3
- plate - 5000207722×2
- SCREW-CORRUGATED HEAD - 5000210112×4
- RET.RING-EXT 9MM,E-TYP - 5000020610×2
- washer - 5000220172×4
- CAP-PROTECTIVE - 5000209112×1
- MODULE IR-RECEIVING EYE,SC-2 - 5000170949×1
- WASHER-LOCK,5 - 5000103211×4
- SCREW-CHEESE HD. - 5000208646×2
- SCREW-CORRUGATED HEAD - 5000210111×4
