DPU7060SC VIBROPLATE,DIESEL,SC

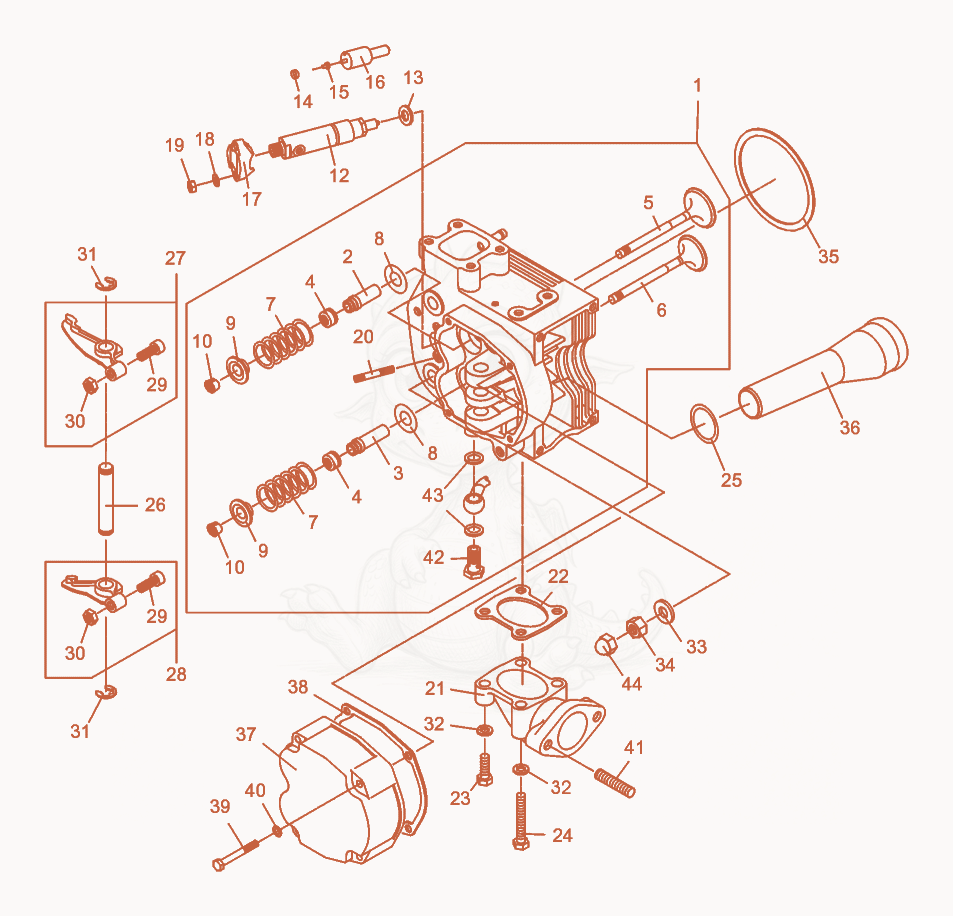

Despiece de Cylinder Head cpl. · DPU7060SC
- CYLINDER HEAD COMPL. - 5000204781×1
- GUIDE-VALVE,INLET - 5000204614×1
- GUIDE-VALVE,EXHAUST - 5000204615×1
- GASKET-VALVE SEAT - 5000204486×2
- VALVE-CONE,INLET - 5000204616×1
- VALVE-CONE,EXHAUST - 5000204617×1
- VALVE-SPRING - 5000204666×2
- washer - 5000204768×2
- PLATE-SPRING - 5000204634×2
- CONE PIECE - 5000204633×4
- HOLDER-JET - 5000204487×1
- SEAL-RING - 5000204488×1
- 145000204643No la vendemosCompression spring×1
- 155000204642No la vendemosPin×1
- 165000204489No la vendemosJet×1
- flange - 5000204769×1
- WASHER-SPRING A6 - 5000204692×2
- NUT M6,HEX - 5000204729×6
- BOLT M6X45,THREADED STUD - 5000204703×2
- MANIFOLD-MUFFLER - 5000204647×1
- seal - 5000204662×1
- SCREW M8X25,HEX,SOCKET HD - 5000204726×2
- SCREW M8X55,HEX,SOCKET HD - 5000204721×2
- RING-O 32X4 - 5000204490×1
- BOLT-ROCKER ARM - 5000204610×1
- ROCKER ARM,INLET - 5000204651×1
- ROCKER ARM,EXHAUST - 5000204652×1
- SCREW - 5000204621×2
- NUT M8,HEX - 5000204730×2
- WASHER-LOCK 10 - 5000204739×2
- WASHER-SPRING A8 - 5000204693×4
- Washer - 5000037248×4
- NUT M10,HEX - 5000204731×4
- GASKET - 5000099439×1
- TUBE-PROTECTIVE COVER - 5000044089×1
- COVER-VALVE - 5000204653×1
- GASKET - 5000204491×1
- SCREW M6X55,HEX,SOCKET HD - 5000204722×4
- WASHER-SPRING A6 - 5000204696×4
- BOLT M10X25,THREADED STUD - 5000204706×2
- SCREW M10X1 A4,HOLLOW - 5000204754×1
- SEAL-RING A10X16X1 - 5000204751×2
- NUT M10 - 5000204735×2
