DPU7060SC VIBROPLATE,DIESEL,SC

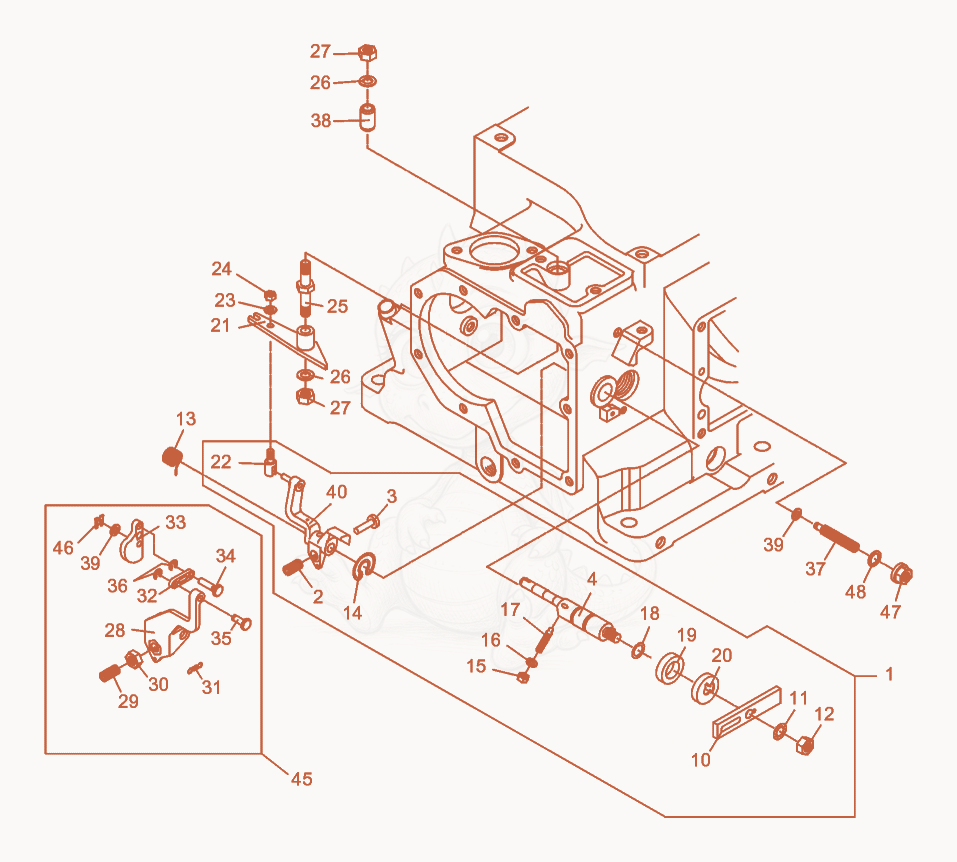

Despiece de Adjusting Assy. cpl. · DPU7060SC
- THROTTLE - 5000099462×1
- HUB-THREADED - 5000204618×1
- BOLT COLLAR - 5000204611×1
- SHAFT-ECCENTRIC - 5000204608×1
- lever - 5000204763×1
- WASHER I8.4 - 5000204736×1
- NUT M8,HEX - 5000204730×1
- SPRING - 5000034345×1
- RET.RING 26.3MM,FORM D - 5000034343×1
- NUT M5,HEX - 5000204728×1
- WASHER-SPRING A5 - 5000204691×1
- 175000037331No la vendemosThreaded pin×1
- O-RING 10 X 2.2-70 Sh - 5000034342×1
- RING-SPACER - 5000069233×1
- DISC - 5000044094×1
- LEVER-GOVERNOR - 5000099461×1
- BOLT FORK - 5000204609×1
- WASHER 5.3 - 5000204687×1
- NUT M5,SPRING-STOP,HEX - 5000204623×1
- PIVOT - 5000099460×1
- SHIM 8X14X0.5 - 5000204684×2
- NUT M8,SPRING-STOP - 5000204622×2
- 285000099468No la vendemosLever×1
- 295000099470No la vendemosThreaded bolt×1
- NUT M10X1,HEX - 5000204732×1
- SPRING 0,5X5,5X13.7 - 5000204668×1
- 325000099464No la vendemosJoint lever×1
- 335000099463No la vendemosSegment×1
- 345000099465No la vendemosBolt×1
- 355000099466No la vendemosBolt×1
- WASHER-LOCK 4 - 5000204738×2
- 375000099471No la vendemosThreaded pin×1
- 385000099459No la vendemosBush×1
- SHIM 5X10X1 - 5000204686×2
- REGULATOR-LEVER - 5000204648×1
- PRIMER-ASSEMBLY - 5000104586×1
- SPRING - 5000204646×1
- NUT-COLLAR - 5000034271×1
- SEAL-RING A8X14X1 - 5000204743×1
