DV100

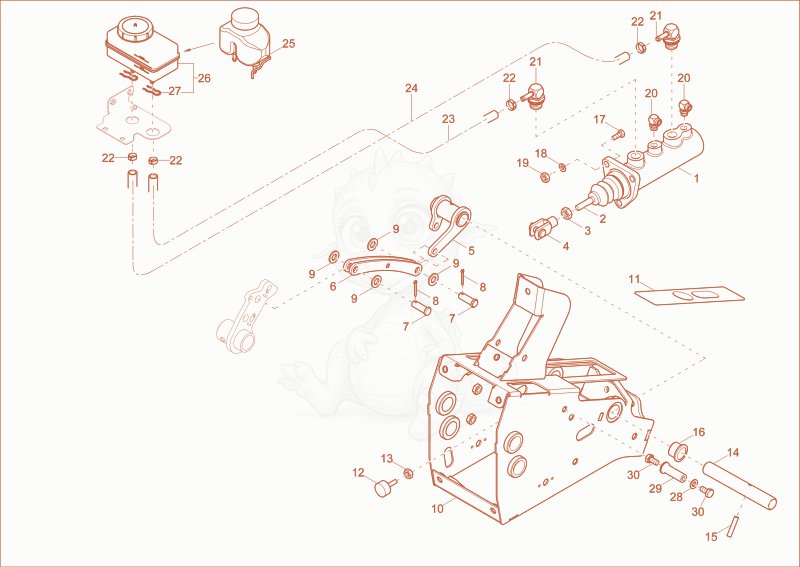

Despiece de BRAKE CYLINDER · DV100
- masterbrake cylinder - 1000471766×1
- 21000330764No la vendemossteering rod×1
- 31000015415No la vendemoshexagon nut×1
- 41000330766No la vendemosfork head×1
- 51000410126No la vendemosturn round×1
- 61000410114No la vendemosspacer rod×1
- pin - 1000410249×2
- COTTERPIN - 1000013045×2
- 91000049219No la vendemoswasher×4
- 101000433234No la vendemosconsole×1
- plate - 1000353228×1
- 121000350999No la vendemosmetal-rubber buffer×2
- 131000013021No la vendemoshexagon nut×1
- shaft - 1000382737×1
- cotter pin - 1000085652×1
- SLIDE BEARING - 1000186862×6
- 171000015346No la vendemoshex screw×3
- washer 10,5 A2C DIN125 - 1000015432×3
- 191000357535No la vendemoshexagon nut×3
- 201000402143No la vendemosangle screw joint×2
- 211000378124No la vendemosscrew joint×2
- hose clamp - 1000271340×4
- 231000406974No la vendemoshose×0.6
- 241000406974No la vendemoshose×0.7
- regulation container - 1000146217×1
- regulation container - 1000433976×1
- PLUG - 1000435148×2
- 281000015431No la vendemoswasher×1
- bushing - 1000433178×1
- 301000019136No la vendemoshex screw×2
