Wheel dumper DW100

Despiece de diesel engine · DW100

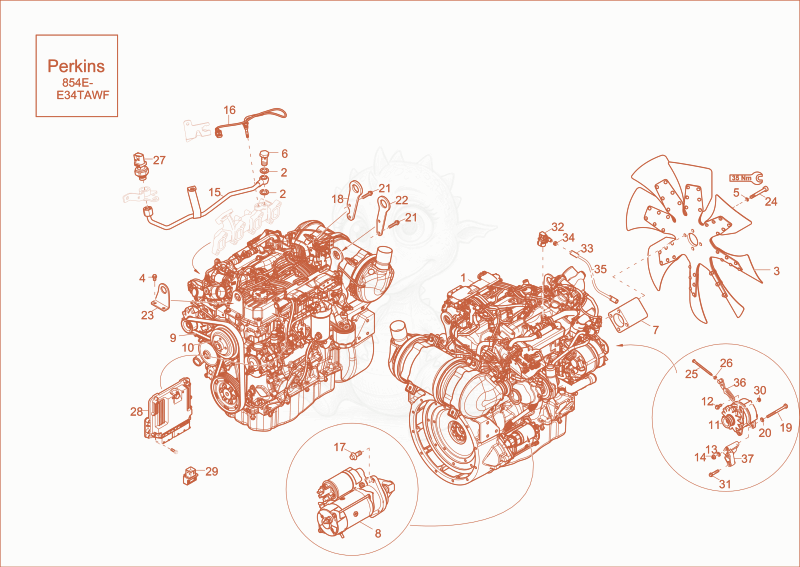

Despiece del diesel engine de una máquina Wacker Neuson DW100, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

11000274663
$31,242.44
DIESEL ENGINE 854E-E34TAWF - 1000274663×1
21000310738
$11.61
WASHER - 1000310738×2
31000326517
$312.84
fan - 1000326517×1
41000207520
$2.04
screw - 1000207520×2
51000094995
$0.93
Nord-Lock disc NL8 - 1000094995×4
61000311037No la vendemos
banjo bolt×1
71000301009
$51.09
adapter ventilator - 1000301009×1
81000309770No la vendemos
starter motor×1
91000309814
$163.71
V-BELT - 1000309814×1
101000309811No la vendemos
belt pulley×1
111000309853
$1,353.92
GENERATOR - 1000309853×1
121000137695
$2.43
Screw - 1000137695×2
131000309856
$12.23
WASHER - 1000309856×1
141000087576
$1.90
Nut - 1000087576×1
151000310737No la vendemos
pipe line×1
161000310735
$439.22
sensor - 1000310735×1
171000205230
$10.99
screw - 1000205230×1
181000311527No la vendemos
lift eye×1
191000309858
$25.59
screw - 1000309858×1
201000309856
$12.23
WASHER - 1000309856×1
211000312400
$8.99
SCREW - 1000312400×4
221000311219No la vendemos
lift eye×1
231000311218No la vendemos
lift eye×1
241000099331
$0.42
cheese head screw - 1000099331×4
251000312423
$17.18
SCREW - 1000312423×1
261000312424
$2.09
Nut - 1000312424×1
271000310736
$286.30
Sensor - 1000310736×1
281000311469
$3,767.74
modul - 1000311469×1
291000311217
$192.02
Relay - 1000311217×1
301000312431
$37.52
NUT - 1000312431×1
311000256920
$12.63
Screw - 1000256920×2
321000298103
$7.34
plug - 1000298103×1
331000314482No la vendemos
water hose×0.76
341000267809
$3.22
clamp hose 15.3 - 1000267809×2
351000342197
$9.11
SILICON-HOSE - 1000342197×1
361000317540No la vendemos
clamp bar×1
371000317551No la vendemos
bracket generator×1
