Wheel dumper DW100

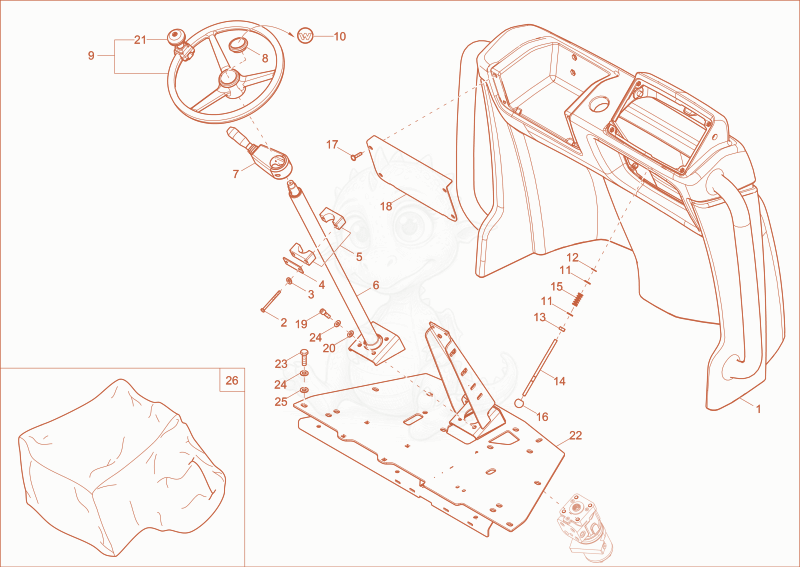

Despiece de pilot stand · DW100
- 11000323423No la vendemospilot stand×1
- HEX SCREW - 1000085314×2
- 31000015436No la vendemoslock washer×2
- COVER PLATE - 1000083327×1
- CLAMP BODY - 1000083326×1
- Steeringcolumn 1000266442×1
- 71000378383No la vendemossteeringstick switch×1
- cover cap - 1000198962×1
- 91000310966No la vendemossteering wheel×1
- Sticker - 1000234336×1
- 111000015431No la vendemoswasher×4
- 121000049454No la vendemoslock washer×2
- 131000013021No la vendemoshexagon nut×1
- 141000339586No la vendemosantilock rod×1
- pressure spring - 1000251799×2
- ball head - 1000124794×1
- 171000326519No la vendemosflat head screw×4
- board - 1000323271×1
- cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×4
- washer 10,5 A2C DIN125 - 1000015432×4
- 211000309229No la vendemosrotary knob×1
- 221000375811No la vendemosplate×1
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×16
- 241000015438No la vendemoslock washer×20
- washer M10-DIN134 - 1000094974×16
- 261000335433No la vendemoscover canvas×1
