DW50-2

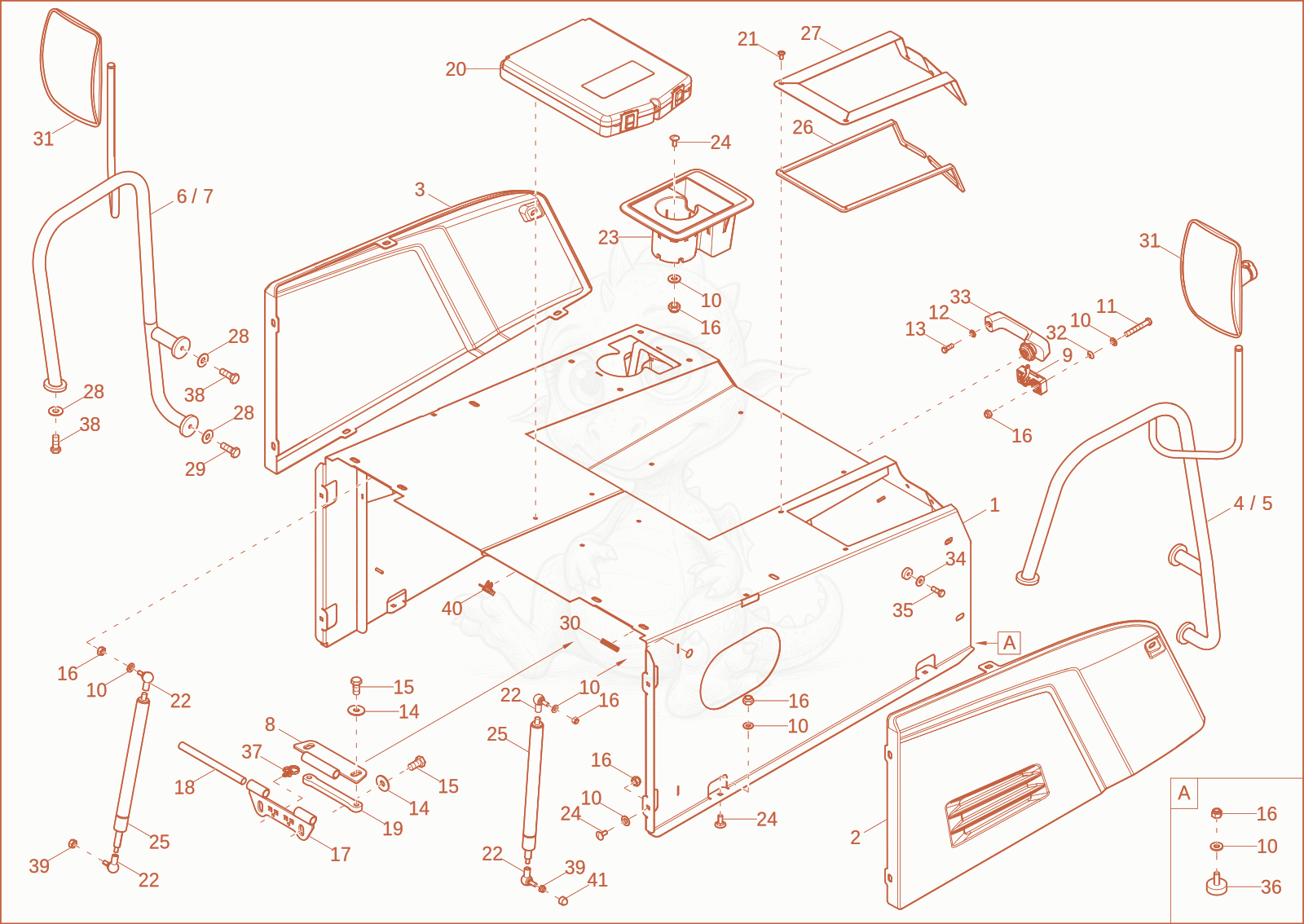

Despiece de engine hood · DW50-2

11000490865No la vendemos
engine hood×1
21000461627
$555.40
cover - 1000461627×1
31000461628
$555.40
cover - 1000461628×1
41000491418
$114.99
handrail - 1000491418×1
51000491429
$114.99
handrail - 1000491429×1
61000491417
$114.99
handrail - 1000491417×1
71000491430
$114.99
handrail - 1000491430×1
81000333968
$30.11
Hinge - 1000333968×2
91000492416No la vendemos
lock×1
101000015448No la vendemos
washer×17
111000015344No la vendemos
hex screw×2
121000015430No la vendemos
u-washer×1
131000020553No la vendemos
hex screw×1
141000085613
$0.10
washer - 1000085613×8
151000015347No la vendemos
hex screw×8
161000357534No la vendemos
hexagon nut×17
171000467623
$27.24
hinge - 1000467623×2
181000333969
$11.75
PIN - 1000333969×2
191000336082
$27.60
plate - 1000336082×2
201000081206
$40.96
documents box - 1000081206×1
211000326519No la vendemos
flat head screw×9
221000222383
$8.59
ball and socket AS13 - 1000222383×4
231000425596
$106.94
Bracket - 1000425596×1
241000085557
$0.78
flat head screw - 1000085557×11
251000303751
$137.95
gas strut - 1000303751×2
261000463373
$193.03
support - 1000463373×1
271000463237No la vendemos
rubber seal×1
281000092303
$0.86
Washer 10,5 St A2C - 1000092303×6
291000015364No la vendemos
hex screw×2
301000489938No la vendemos
sleeve×1
311000264124
$82.20
mirror - 1000264124×2
321000388437No la vendemos
sleeve×2
331000012882
$49.53
handle - 1000012882×1
341000013027No la vendemos
washer×2
351000019136No la vendemos
hex screw×2
361000153159
$24.79
rubber buffer - 1000153159×2
371000375997No la vendemos
fixing bracket×2
381000085411
$1.37
hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
391000114374
$5.97
HEXAGON NUT - 1000114374×2
401000293439No la vendemos
clip×1
411000004276No la vendemos
cover cap×1
