DW50-2

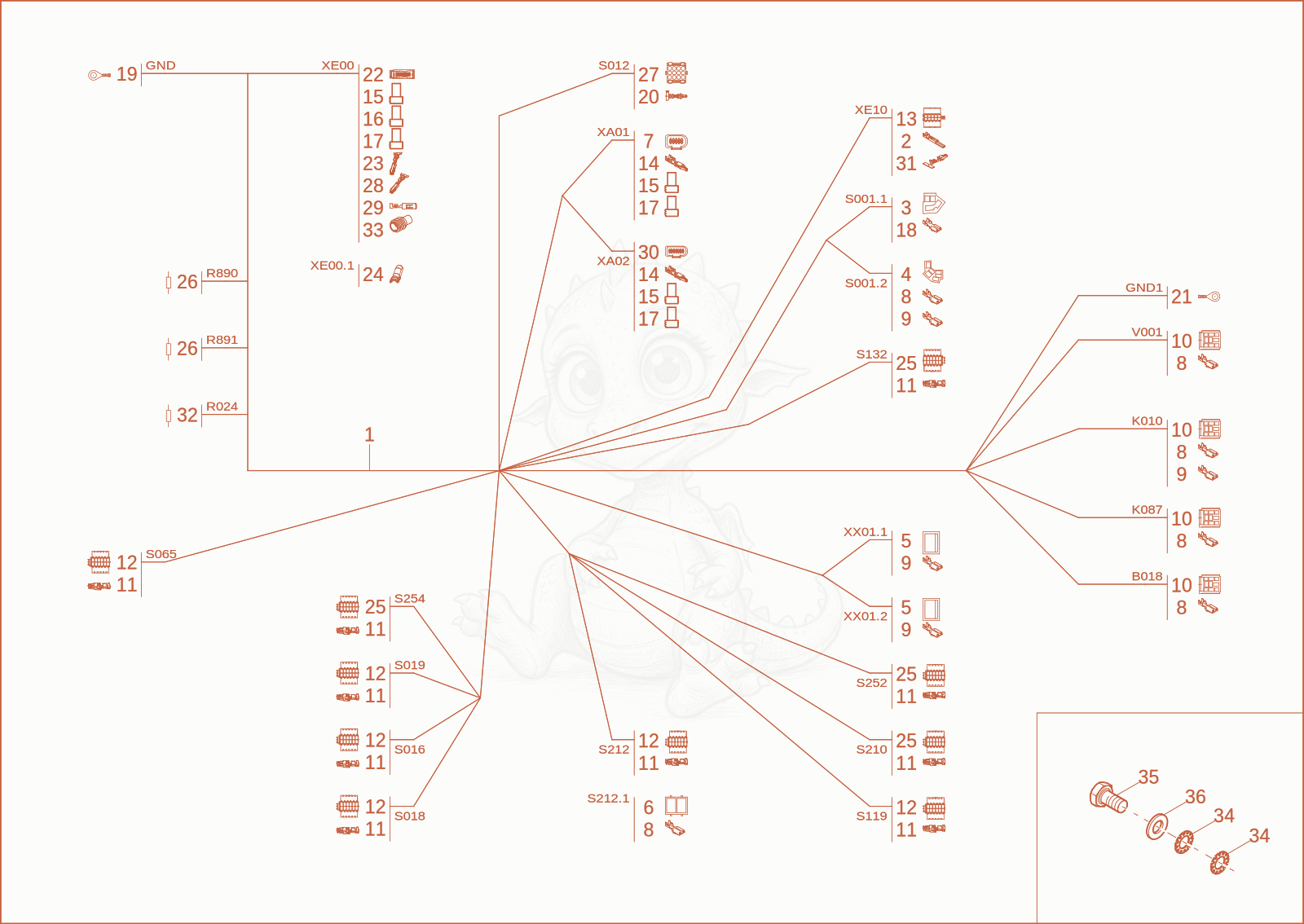

Despiece de wiring harness · DW50-2

11000491812No la vendemos
wiring harness×1
21000027179No la vendemos
timer contact×3
31000027368No la vendemos
central plug×1
41000027386
$6.47
PLUG - 1000027386×1
51000027435No la vendemos
insulating sleeve×2
61000095336No la vendemos
plug sleeve housing×1
71000347631No la vendemos
housing×1
81000095370
$0.66
plug sleeve - 1000095370×18
91000095371No la vendemos
plug sleeve×4
101000101071
$7.72
Plug housing - 1000101071×4
111000103753
$3.01
Timer Contact - 1000103753×64
121000103949
$5.74
bushing housing - 1000103949×6
131000104431
$2.68
bushing housing - 1000104431×1
141000104732
$3.06
CONTACT - 1000104732×16
151000104738
$1.51
seal - 1000104738×54
161000104739
$16.29
seal - 1000104739×6
171000104740
$1.41
lock plug - 1000104740×18
181000107750
$5.41
plug sleeve - 1000107750×4
191000107754
$2.77
cable lug - 1000107754×1
201000107779
$0.39
BUSHING CONTACT - 1000107779×12
211000110764
$9.03
cable lug - 1000110764×1
221000260163
$44.53
plug sleeve housing - 1000260163×1
231000260164
$1.38
Tube - 1000260164×38
241000261548
$10.49
cover cap - 1000261548×1
251000103949
$5.74
bushing housing - 1000103949×4
261000312303
$0.32
resistor - 1000312303×2
271000334439No la vendemos
bushing housing×1
281000338903No la vendemos
bushing contact×8
291000338907No la vendemos
Tube×6
301000347542No la vendemos
housing×1
311000362527No la vendemos
bushing contact×3
321000433822No la vendemos
resistor×1
331000468063
$1.47
Seal - 1000468063×8
341000095354
$0.03
Lock washer DIN6797 A10,5 - 1000095354×4
351000085411
$1.37
hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
361000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×2
