EW65

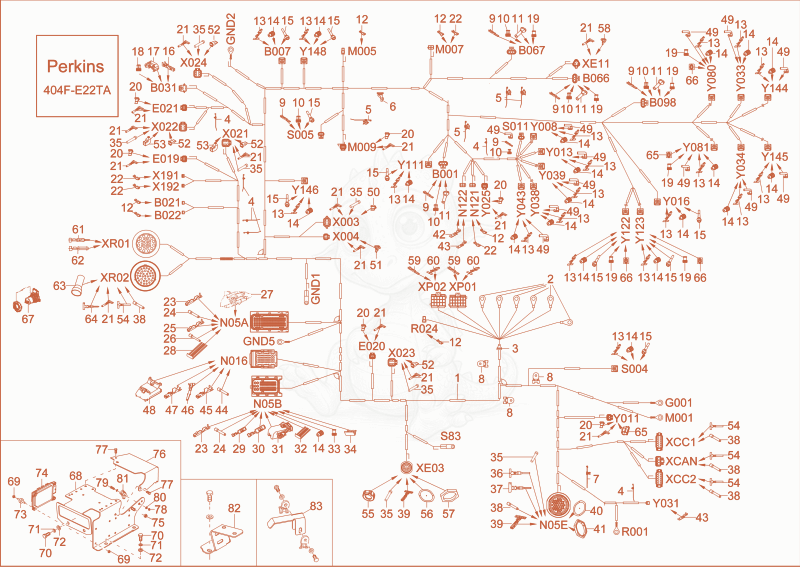

Despiece de WIRE HARNESS CHASSIS (Option) · EW65

Despiece del WIRE HARNESS CHASSIS (Option) de una máquina Wacker Neuson EW65, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000379517
    $9,284.97
    wiring harness - 1000379517×1
  • 21000364917No la vendemos
    cable lug×6
  • 31000387428
    $10.62
    sleeve - 1000387428×1
  • 41000090083
    $2.13
    Cable strap T80IFT6 - 1000090083×6
  • 51000382587No la vendemos
    mounting×4
  • 61000372106
    $6.44
    bracket - 1000372106×1
  • 71000377412No la vendemos
    mounting×1
  • 81000282736
    $11.39
    sockets - 1000282736×3
  • 91000051990No la vendemos
    bushing contact×13
  • 101000052672No la vendemos
    seal×13
  • 111000126051
    $7.95
    PROTECTING CAP - 1000126051×4
  • 121000095370
    $0.66
    plug sleeve - 1000095370×10
  • 131000349535No la vendemos
    sockets×38
  • 141000246747
    $1.41
    seal - 1000246747×42
  • 151000027466No la vendemos
    protecting cap×9
  • 161000268166
    $0.64
    Tube - 1000268166×2
  • 171000268164
    $426.61
    locking - 1000268164×1
  • 181000268165
    $0.66
    seal - 1000268165×2
  • 191000128773
    $0.32
    Plug - 1000128773×11
  • 201000027442No la vendemos
    wedge×6
  • 211000359612No la vendemos
    plug connection×46
  • 221000095371No la vendemos
    plug sleeve×6
  • 231000260130
    $0.99
    Tube - 1000260130×39
  • 241000377990No la vendemos
    blind plug×85
  • 251000260141
    $2.07
    Tube - 1000260141×8
  • 261000359477No la vendemos
    blind plug×16
  • 271000384785No la vendemos
    box cover×1
  • 281000359526
    $10.12
    locking - 1000359526×1
  • 291000260128
    $0.85
    Tube - 1000260128×4
  • 301000260129
    $1.03
    Tube - 1000260129×2
  • 311000359541
    $13.33
    COVER - 1000359541×1
  • 321000359528
    $3.39
    locking - 1000359528×1
  • 331000104739
    $16.29
    seal - 1000104739×2
  • 341000359527
    $3.30
    locking - 1000359527×1
  • 351000030446No la vendemos
    plug×13
  • 361000236298
    $2.30
    pin contact - 1000236298×37
  • 371000309282No la vendemos
    pin contact×1
  • 381000161431
    $0.66
    Plug - 1000161431×17
  • 391000362407No la vendemos
    pin contact×7
  • 401000349014No la vendemos
    lock washer×1
  • 411000349016
    $10.54
    nut - 1000349016×1
  • 421000050022No la vendemos
    plug×2
  • 431000095367
    $0.62
    PLUG - 1000095367×3
  • 441000306978No la vendemos
    blind plug×15
  • 451000306994
    $2.34
    bushing - 1000306994×3
  • 461000371244No la vendemos
    bushing contact×5
  • 471000306992
    $0.75
    bushing - 1000306992×25
  • 481000371243
    $21.46
    cap - 1000371243×1
  • 491000228723
    $10.08
    RUBBER CAP - 1000228723×12
  • 501000100723
    $2.77
    wedge - 1000100723×1
  • 511000104287
    $0.99
    wedge - 1000104287×1
  • 521000085032
    $1.15
    plug locking - 1000085032×4
  • 531000161712
    $11.54
    protecting cap - 1000161712×2
  • 541000148274
    $1.84
    bushing contact - 1000148274×47
  • 551000277443
    $22.68
    protecting cap - 1000277443×1
  • 561000312642No la vendemos
    washer×1
  • 571000312641
    $6.62
    hexagon nut - 1000312641×1
  • 581000027433
    $1.57
    locking - 1000027433×1
  • 591000027179No la vendemos
    timer contact×7
  • 601000362527No la vendemos
    bushing contact×14
  • 611000162891
    $5.74
    bushing contact - 1000162891×12
  • 621000147471
    $4.05
    BUSHING CONTACT - 1000147471×17
  • 631000385705No la vendemos
    protecting cap×1
  • 641000309284No la vendemos
    bushing contact×1
  • 651000275748
    $4.94
    PLUG - 1000275748×1
  • 661000051981No la vendemos
    pin housing×4
  • 671000002902No la vendemos
    socket×1
  • 681000371904
    $115.53
    BRACKET - 1000371904×1
  • 691000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×8
  • 701000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 711000015438No la vendemos
    lock washer×4
  • 721000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 731000151465
    $4.13
    METAL- RUBBER BUFFER - 1000151465×4
  • 741000320907
    $1,392.66
    CONTROL - 1000320907×1
  • 751000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 761000372098
    $54.43
    BRACKET - 1000372098×1
  • 771000085382
    $0.70
    HEX SCREW - 1000085382×2
  • 781000085587
    $0.03
    HEXAGON NUT - 1000085587×1
  • 791000085451
    $0.70
    allen screw M5x16-8.8 A2C DIN912 - 1000085451×1
  • 801000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×2
  • 811000282739
    $2.12
    sockets - 1000282739×1
  • 821000355487
    $29.69
    BRACKET - 1000355487×1
  • 831000371788No la vendemos
    protection plate×1
  • B0011000051989No la vendemos
    bushing housing×1
  • B0071000027410
    $2.43
    Housing - 1000027410×1
  • B0211000027435No la vendemos
    insulating sleeve×1
  • B0221000027435No la vendemos
    insulating sleeve×1
  • B0311000346741No la vendemos
    bushing housing×1
  • B0661000051989No la vendemos
    bushing housing×1
  • B0671000051989No la vendemos
    bushing housing×1
  • B0981000051989No la vendemos
    bushing housing×1
  • E0191000027438No la vendemos
    bushing housing×1
  • E0201000027438No la vendemos
    bushing housing×1
  • E0211000027438No la vendemos
    bushing housing×1
  • G0011000110764
    $9.03
    cable lug - 1000110764×1
  • GND11000346811No la vendemos
    cable lug×1
  • GND21000365194
    $8.43
    cable lug - 1000365194×1
  • GND51000096859
    $1.08
    CABLE LUG - 1000096859×1
  • M0011000096859
    $1.08
    CABLE LUG - 1000096859×1
  • M0051000101072
    $0.75
    plug sleeve housing - 1000101072×1
  • M0071000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • M0091000027438No la vendemos
    bushing housing×1
  • N0161000306993
    $104.58
    PLUG - 1000306993×1
  • N05A1000359522No la vendemos
    pin housing×1
  • N05B1000359480No la vendemos
    pin housing×1
  • N05E1000349015No la vendemos
    bushing housing×1
  • N1211000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • N1221000095324
    $6.16
    plug housing - 1000095324×1
  • R0011000379273No la vendemos
    cable lug×1
  • R0241000095323
    $3.39
    plug sleeve housing - 1000095323×1
  • S0041000027410
    $2.43
    Housing - 1000027410×1
  • S0051000110449
    $2.46
    plug bushing - 1000110449×1
  • S0111000110449
    $2.46
    plug bushing - 1000110449×1
  • S831000346811No la vendemos
    cable lug×1
  • X0031000105113
    $14.50
    bushing housing - 1000105113×1
  • X0041000104286
    $11.39
    bushing housing - 1000104286×1
  • X0211000027431No la vendemos
    bushing housing×1
  • X0221000027431No la vendemos
    bushing housing×1
  • X0231000027431No la vendemos
    bushing housing×1
  • X0241000027431No la vendemos
    bushing housing×1
  • X1911000019583No la vendemos
    plug sleeve housing×1
  • X1921000019583No la vendemos
    plug sleeve housing×1
  • XCAN1000238087
    $16.67
    bushing housing - 1000238087×1
  • XCC11000148250
    $29.62
    Pin housing - 1000148250×1
  • XCC21000148271
    $30.88
    Pin housing - 1000148271×1
  • XE031000298661
    $386.76
    pin housing - 1000298661×1
  • XE111000027429No la vendemos
    housing×1
  • XP011000099076
    $2.90
    bushing housing - 1000099076×1
  • XP021000098960
    $2.84
    bushing housing - 1000098960×1
  • XR011000146158
    $257.29
    LUG HOUSING - 1000146158×1
  • XR021000333984No la vendemos
    bushing housing×1
  • Y0081000027332
    $3.80
    housing - 1000027332×1
  • Y0111000027438No la vendemos
    bushing housing×1
  • Y0131000027410
    $2.43
    Housing - 1000027410×1
  • Y0161000027332
    $3.80
    housing - 1000027332×1
  • Y0251000027438No la vendemos
    bushing housing×1
  • Y0311000085014
    $4.18
    PLUG - 1000085014×1
  • Y0331000027410
    $2.43
    Housing - 1000027410×1
  • Y0341000027332
    $3.80
    housing - 1000027332×1
  • Y0381000027410
    $2.43
    Housing - 1000027410×1
  • Y0391000027332
    $3.80
    housing - 1000027332×1
  • Y0431000027332
    $3.80
    housing - 1000027332×1
  • Y0801000027410
    $2.43
    Housing - 1000027410×1
  • Y0811000027332
    $3.80
    housing - 1000027332×1
  • Y1111000027410
    $2.43
    Housing - 1000027410×1
  • Y1221000027410
    $2.43
    Housing - 1000027410×1
  • Y1231000027332
    $3.80
    housing - 1000027332×1
  • Y1441000027410
    $2.43
    Housing - 1000027410×1
  • Y1451000027332
    $3.80
    housing - 1000027332×1
  • Y1461000027410
    $2.43
    Housing - 1000027410×1
  • Y1481000027410
    $2.43
    Housing - 1000027410×1
