EW65

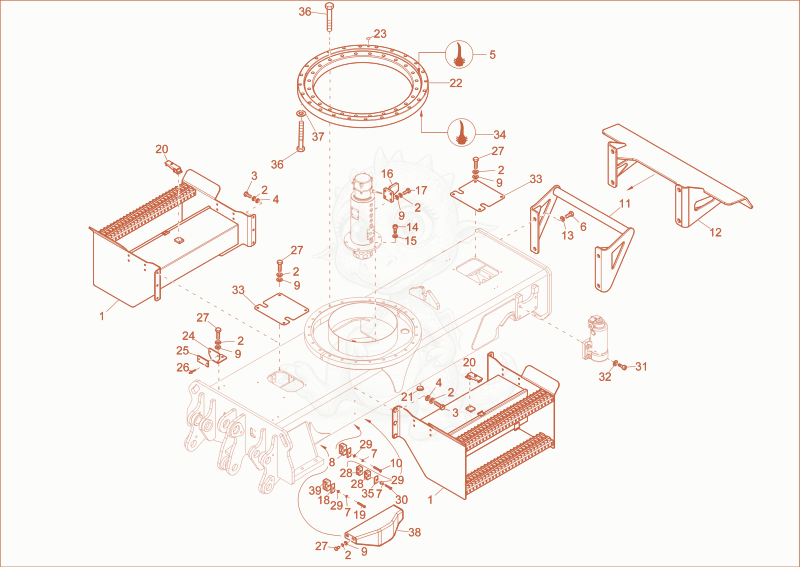

Despiece de undercarriage · EW65
- 11000360815No la vendemosfootboard×2
- 21000015438No la vendemoslock washer×24
- 31000015348No la vendemoshex screw×12
- 41000015434No la vendemoswasher×12
- gasket slewing gear - 1000097244×2.5
- hex screw - 1000141354×4
- 71000015437No la vendemoslock washer×3
- CLAMP BODY - 1000151199×1
- washer 10,5 A2C DIN125 - 1000015432×12
- 101000015380No la vendemoshex screw×1
- 111000315472No la vendemosstatic bar×1
- 121000384283No la vendemosstatic bar×1
- 131000426234No la vendemoslock washer×4
- 141000022173No la vendemoscheese head screw×6
- 151000015450No la vendemosnorthlock disc×6
- 161000316236No la vendemoslimit stop×1
- 171000015364No la vendemoshex screw×4
- 181000015629No la vendemoscover plate×1
- hex screw - 1000085393×1
- tension latch - 1000157123×2
- VSTI11/2EDA3C - 1000082797×1
- 221000012316No la vendemosslewing ring×1
- O-RING - 1000095054×1
- bracket - 1000331278×2
- REFLECTOR - 1000004320×2
- blind rivet A3x12 - 1000082697×4
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×12
- clamp 18/2 - 1000083300×2
- 291000015431No la vendemoswasher×3
- 301000022334No la vendemoshex screw×1
- 311000015400No la vendemoscheese head screw×8
- 321000015451No la vendemosnorthlock disc×8
- 331000312476No la vendemosprotection plate×2
- gasket slewing gear - 1000097244×2.5
- 351000022379No la vendemoscover plate×2
- 361000554976No la vendemosscrew×48
- nordock washer NL16x30,7 - 1000094994×24
- COVER - 1000330362×1
- clamp body - 1000099510×1
