Excavator EZ38

Despiece de wire harness chassis, engine · EZ38

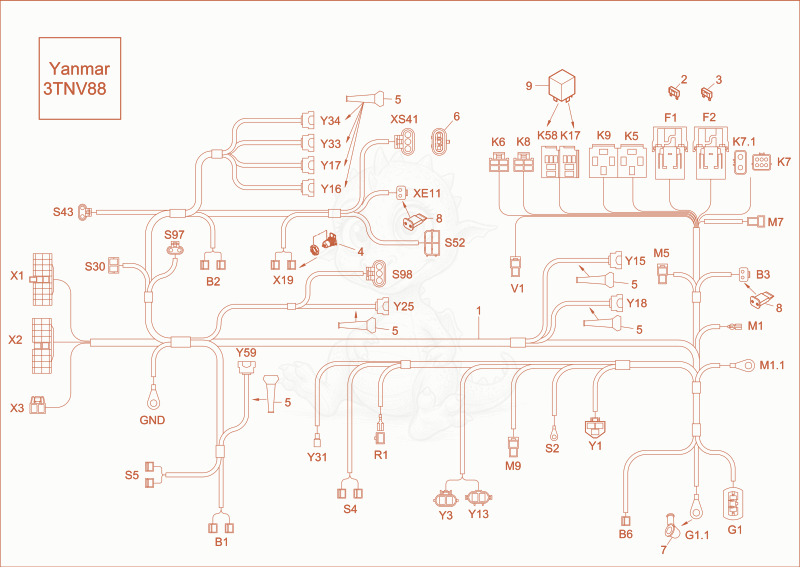

Despiece del wire harness chassis, engine de una máquina Wacker Neuson EZ38, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000292914
    $3,616.35
    Wiringharnessengine 1000292914×1
  • 21000015302
    $3.50
    fuse - 1000015302×1
  • 31000015298
    $3.25
    FUSE - 1000015298×1
  • 41000002902No la vendemos
    socket×1
  • 51000027466No la vendemos
    protecting cap×8
  • 61000265293
    $3.49
    Pin housing - 1000265293×1
  • 71000027463
    $7.08
    PROTECTING CAP - 1000027463×1
  • 81000027442No la vendemos
    wedge×2
  • 91000333390No la vendemos
    relay×2
  • B11000027435No la vendemos
    insulating sleeve×2
  • B21000027435No la vendemos
    insulating sleeve×1
  • B31000027438No la vendemos
    bushing housing×1
  • B61000027435No la vendemos
    insulating sleeve×1
  • F11000027186
    $10.05
    Bracket - 1000027186×1
  • F21000027186
    $10.05
    Bracket - 1000027186×1
  • G11000110537
    $32.62
    bushing housing - 1000110537×1
  • G1.11000096859
    $1.08
    CABLE LUG - 1000096859×1
  • GND1000107754
    $2.77
    cable lug - 1000107754×1
  • K171000100593
    $6.63
    sockets - 1000100593×1
  • K51000067855
    $9.89
    sockets - 1000067855×1
  • K581000100593
    $6.63
    sockets - 1000100593×1
  • K61000051986No la vendemos
    plug sleeve housing×1
  • K71000110360
    $13.74
    bushing housing - 1000110360×1
  • K7.11000110349
    $15.95
    bushing housing - 1000110349×1
  • K81000051986No la vendemos
    plug sleeve housing×1
  • K91000067855
    $9.89
    sockets - 1000067855×1
  • M11000107706
    $0.75
    PLUG SLEEVE - 1000107706×1
  • M1.11000107757
    $2.77
    CABLE LUG - 1000107757×1
  • M51000101072
    $0.75
    plug sleeve housing - 1000101072×1
  • M71000095323
    $3.39
    plug sleeve housing - 1000095323×1
  • M91000101072
    $0.75
    plug sleeve housing - 1000101072×1
  • R11000081742
    $2.88
    plug housing - 1000081742×1
  • S21000050027No la vendemos
    cable lug×1
  • S301000095336No la vendemos
    plug sleeve housing×1
  • S41000027435No la vendemos
    insulating sleeve×2
  • S431000110449
    $2.46
    plug bushing - 1000110449×1
  • S51000027435No la vendemos
    insulating sleeve×2
  • S521000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • S971000110449
    $2.46
    plug bushing - 1000110449×1
  • S981000051989No la vendemos
    bushing housing×1
  • V11000101072
    $0.75
    plug sleeve housing - 1000101072×1
  • X11000118531
    $5.84
    plug sleeve housing - 1000118531×1
  • X191000027435No la vendemos
    insulating sleeve×2
  • X21000118478
    $5.26
    plug sleeve housing - 1000118478×1
  • X31000103750
    $6.16
    plug sleeve housing - 1000103750×1
  • XE111000027438No la vendemos
    bushing housing×1
  • XS411000051989No la vendemos
    bushing housing×1
  • Y11000167178
    $6.73
    PLUG SLEEVE HOUSING - 1000167178×1
  • Y131000124064
    $9.32
    Pin housing - 1000124064×1
  • Y151000027332
    $3.80
    housing - 1000027332×1
  • Y161000027332
    $3.80
    housing - 1000027332×1
  • Y171000027332
    $3.80
    housing - 1000027332×1
  • Y181000027332
    $3.80
    housing - 1000027332×1
  • Y251000027332
    $3.80
    housing - 1000027332×1
  • Y31000124062
    $6.59
    bushing housing - 1000124062×1
  • Y311000099682
    $0.46
    Pin socket - 1000099682×1
  • Y331000027332
    $3.80
    housing - 1000027332×1
  • Y341000027332
    $3.80
    housing - 1000027332×1
  • Y591000027332
    $3.80
    housing - 1000027332×1
