Excavator EZ38

Despiece de DIPPER ARM LONG (OPTION) · EZ38

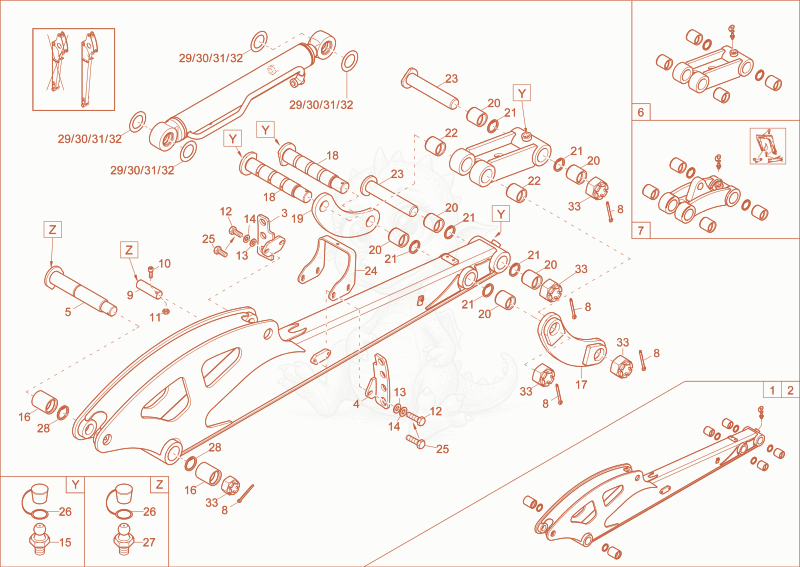

Despiece del DIPPER ARM LONG (OPTION) de una máquina Wacker Neuson EZ38, con globos numerados — Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.

11000315597No la vendemos
pre-assembled dipperstick long×1
21000315611No la vendemos
pre-assembled dipperstick long×1
31000280571
$50.37
bracket hose - 1000280571×1
41000280572
$45.42
bracket hose - 1000280572×1
51000294590
$137.89
Pin 1000294590×1
61000071297No la vendemos
articulation rod×1
71000071304No la vendemos
pre-assembled articulation rod×1
81000280889
$1.91
DINENISO1234-6,3x63-A2C - 1000280889×5
91000296592
$68.21
PIN - 1000296592×1
101000015353No la vendemos
cheese head screw×1
111000015416
$0.71
DIN985-M8-8-A2C - 1000015416×1
121000085411
$1.37
hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
131000015432
$0.05
washer 10,5 A2C DIN125 - 1000015432×4
141000015438No la vendemos
lock washer×4
151000015475No la vendemos
grease nipple×4
161000019754No la vendemos
steel bushing×2
171000071283No la vendemos
pivot plate×1
181000296593
$215.50
Pin 1000296593×2
191000071282No la vendemos
pivot plate×1
201000015608No la vendemos
steel bushing×6
211000021601No la vendemos
lock ring×6
221000015607No la vendemos
steel bushing×2
231000296761
$52.12
Pin 1000296761×2
241000269206
$40.71
HOLDER - 1000269206×1
251000015345
$1.55
Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
261000015480No la vendemos
cap grease nipple×6
271000015476No la vendemos
grease nipple×2
281000095015
$1.03
lock ring - 1000095015×2
291000154275
$2.38
SHIM - 1000154275×1
301000154276
$2.11
SHIM - 1000154276×1
311000154278
$2.53
SHIM - 1000154278×1
321000154280
$2.84
SHIM - 1000154280×1
331000015417
$12.94
DIN935-M36-8-A2C - 1000015417×5
