EZ53

Despiece de chassis · EZ53

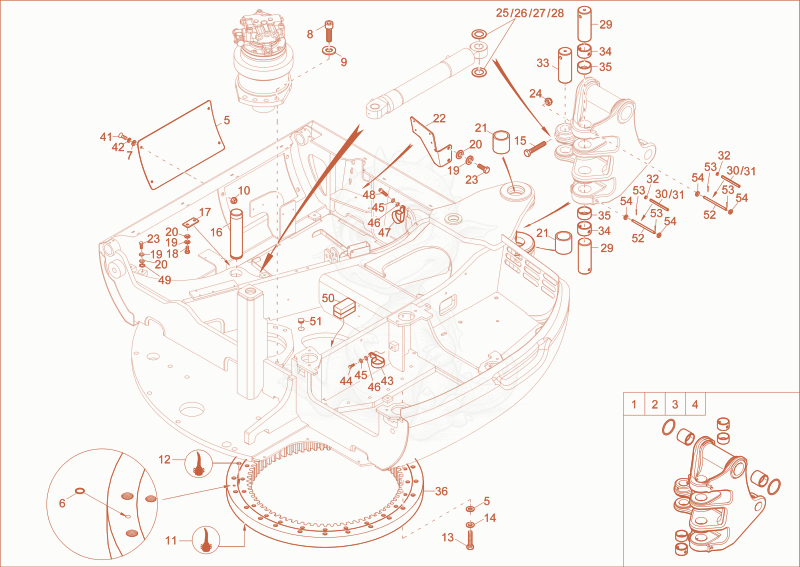

Despiece del chassis de una máquina Wacker Neuson EZ53, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000188262
    $4,089.49
    Swivelconsolepremounted 1000188262×1
  • 21000183111
    $4,089.49
    Swingbracket 1000183111×1
  • 31000367989No la vendemos
    swivel console premounted×1
  • 41000368004No la vendemos
    swivel console×1
  • 51000245612
    $86.91
    Cover 1000245612×1
  • 61000095054
    $1.38
    O-RING - 1000095054×1
  • 71000245613
    $1.61
    WASHER - 1000245613×4
  • 81000015383No la vendemos
    cheese head screw×8
  • 91000015451No la vendemos
    northlock disc×8
  • 101000085581
    $1.51
    HEXAGON NUT - 1000085581×4
  • 111000097244
    $54.76
    gasket slewing gear - 1000097244×2.2
  • 121000097244
    $54.76
    gasket slewing gear - 1000097244×2.2
  • 131000082284
    $2.51
    hex screw - 1000082284×24
  • 141000015451No la vendemos
    northlock disc×24
  • 151000085322
    $1.31
    hex screw - 1000085322×1
  • 161000108530
    $101.52
    Pin 1000108530×1
  • 171000115114
    $36.12
    bracket axle - 1000115114×1
  • 181000015364No la vendemos
    hex screw×2
  • 191000015438No la vendemos
    lock washer×5
  • 201000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×5
  • 211000109609
    $43.54
    STEEL BUSHING - 1000109609×2
  • 221000117965
    $127.99
    console - 1000117965×1
  • 231000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
  • 241000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 251000107906
    $2.45
    shim - 1000107906×1
  • 261000107907
    $2.27
    shim - 1000107907×1
  • 271000107908
    $7.39
    shim - 1000107908×1
  • 281000112129
    $4.06
    shim - 1000112129×1
  • 291000108532
    $59.66
    Pin 1000108532×2
  • 301000116614
    $10.27
    cotter pin - 1000116614×2
  • 311000049793No la vendemos
    cotter pin×2
  • 321000066219No la vendemos
    plug×4
  • 331000114347
    $44.73
    Pin 1000114347×1
  • 341000188661
    $42.88
    steel bushing - 1000188661×2
  • 351000188662
    $31.04
    steel bushing - 1000188662×2
  • 361000314555No la vendemos
    slewing ring×1
  • 411000015358No la vendemos
    countersunk screw×4
  • 421000082608
    $0.06
    lock washer - 1000082608×4
  • 431000151200
    $10.77
    pipe clamp RSGU 1.13/20 - 1000151200×1
  • 441000013008No la vendemos
    hex screw×1
  • 451000015437No la vendemos
    lock washer×2
  • 461000015431No la vendemos
    washer×2
  • 471000083250
    $5.91
    hose clamp - 1000083250×1
  • 481000019593No la vendemos
    cheese head screw×1
  • 491000095354
    $0.03
    Lock washer DIN6797 A10,5 - 1000095354×1
  • 501000345754No la vendemos
    foam trim×1
  • 511000150630
    $8.16
    COVER - 1000150630×1
  • 521000410079
    $61.05
    pin DM=11x195 - 1000410079×2
  • 531000095365
    $0.10
    cotter pin 3,2x20 - 1000095365×4
  • 541000082638
    $0.73
    washer 13 -DIN134 - 1000082638×4
