EZ53

Despiece de AIR-CONDITIONING PLANT INSTALLATION · EZ53

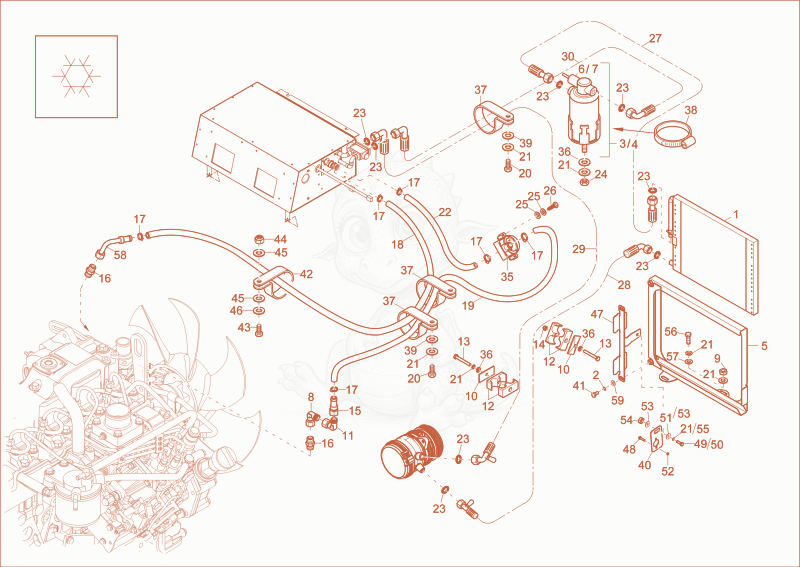

Despiece del AIR-CONDITIONING PLANT INSTALLATION de una máquina Wacker Neuson EZ53, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000102910
    $601.83
    Condenser 1000102910×1
  • 21000015438No la vendemos
    lock washer×2
  • 31000113362
    $305.90
    air dryer X-1000135964 - 1000113362×1
  • 41000416672No la vendemos
    air dryer×1
  • 51000339373No la vendemos
    bracket condenser×1
  • 61000153692
    $277.11
    PRESSURE SWITCH - 1000153692×1
  • 71000367647No la vendemos
    pressure switch×1
  • 81000000573No la vendemos
    screw joint×1
  • 91000013021No la vendemos
    hexagon nut×2
  • 101000015629No la vendemos
    cover plate×2
  • 111000000573No la vendemos
    screw joint×1
  • 121000083314
    $1.51
    CLAMP BODY - 1000083314×2
  • 131000085318
    $1.11
    6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×2
  • 141000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 151000267951
    $22.17
    hose sleeve - 1000267951×1
  • 161000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×2
  • 171000267810
    $4.29
    hose clamp - 1000267810×6
  • 181000261871
    $17.35
    heater hose ID15x3,5 - 1000261871×5
  • 191000261871
    $17.35
    heater hose ID15x3,5 - 1000261871×5
  • 201000013008No la vendemos
    hex screw×3
  • 211000015437No la vendemos
    lock washer×5
  • 221000261871
    $17.35
    heater hose ID15x3,5 - 1000261871×0.4
  • 231000152394
    $24.85
    seal kit climate - 1000152394×1
  • 241000013021No la vendemos
    hexagon nut×1
  • 251000015430No la vendemos
    u-washer×4
  • 261000158721
    $0.63
    hex screw - 1000158721×2
  • 271000340851No la vendemos
    hose aircondition system×1
  • 281000339830No la vendemos
    hose aircondition system×1
  • 291000350365No la vendemos
    hose aircondition system×1
  • 301000340852No la vendemos
    hose aircondition system×1
  • 351000147152
    $89.65
    water valve - 1000147152×1
  • 361000015431No la vendemos
    washer×2
  • 371000083325
    $7.53
    pipe clamp RSGU 1.50/20 - 1000083325×3
  • 381000083296
    $10.85
    Hose Clamp - 1000083296×1
  • 391000015448No la vendemos
    washer×3
  • 401000353177
    $20.75
    BRACKET - 1000353177×1
  • 411000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 421000083323
    $27.39
    pipe clamp - 1000083323×1
  • 431000085414
    $0.98
    hex screw - 1000085414×1
  • 441000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×1
  • 451000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 461000015438No la vendemos
    lock washer×1
  • 471000352392No la vendemos
    angle bracket×1
  • 481000085384
    $0.84
    6-Point screw M6x25-8.8 A2C-DIN933 - 1000085384×2
  • 491000015343No la vendemos
    hex screw×1
  • 501000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×1
  • 511000013027No la vendemos
    washer×1
  • 521000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 531000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×2
  • 541000015407No la vendemos
    hexagon nut×1
  • 551000015438No la vendemos
    lock washer×1
  • 561000015343No la vendemos
    hex screw×1
  • 571000015448No la vendemos
    washer×1
  • 581000267953
    $78.88
    hose sleeve - 1000267953×1
  • 591000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
