GS5.5A GENERATOR

Despiece de Control Box · GS5.5A

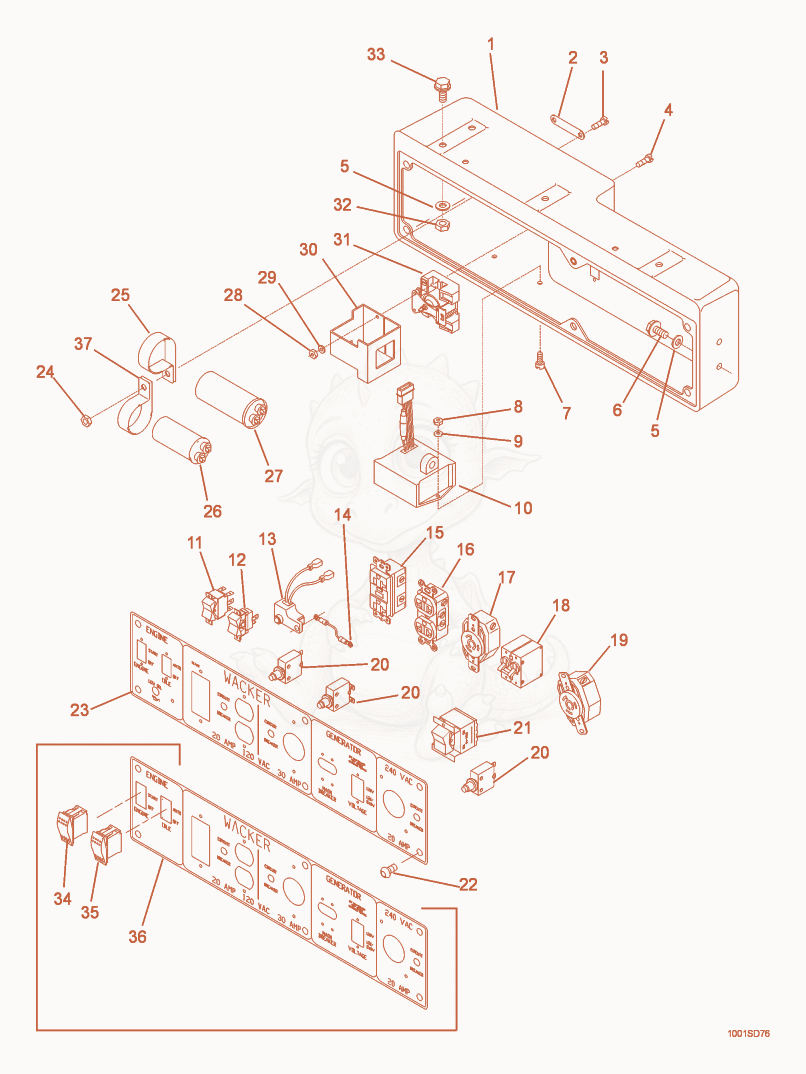

Despiece del Control Box de una máquina Wacker Neuson GS5.5A, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15000083045No la vendemos
    Control×1
  • 25000084075No la vendemos
    Washer×1
  • 35000011781No la vendemos
    Pan head screw×2
  • 45000011721
    $0.07
    SCREW M4 X 20 CHEESE HD. - 5000011721×2
  • 55000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×8
  • 65000012361
    $0.23
    SCREW M8 X 16 HX.HD. - 5000012361×4
  • 75000011723
    $0.40
    SCREW M4 X 12 CHEESE HD. - 5000011723×2
  • 85000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×2
  • 95000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×2
  • 105000115479
    $199.49
    NLA CONTROL MODULE-AUTO IDLE - 5000115479×1
  • 115000082942
    $45.56
    SWITCH-ROCKER,DPDT,ON-OFF-ON - 5000082942×1
  • 125000082941
    $89.43
    SWITCH-ROCKER,SPST,ON-OFF - 5000082941×1
  • 135000084070No la vendemos
    Oil alarm×1
  • 135000084073No la vendemos
    Terminal×1
  • 135000084072No la vendemos
    Receptacle terminal×1
  • 135000011723
    $0.40
    SCREW M4 X 12 CHEESE HD. - 5000011723×1
  • 135000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×1
  • 155000089849
    $145.30
    KIT-GFI RECEPTACLE - 5000089849×1
  • 155000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×2
  • 155000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×2
  • 155000011723
    $0.40
    SCREW M4 X 12 CHEESE HD. - 5000011723×2
  • 165000082951
    $10.49
    RECEPTACLE-DUPLEX, 20A, 120V - 5000082951×1
  • 165000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×2
  • 165000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×2
  • 165000011723
    $0.40
    SCREW M4 X 12 CHEESE HD. - 5000011723×2
  • 175000082948
    $26.06
    RECEPTACLE 30A, 125V - 5000082948×1
  • 175000011723
    $0.40
    SCREW M4 X 12 CHEESE HD. - 5000011723×2
  • 175000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×2
  • 175000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×2
  • 185000082943
    $76.14
    BREAKER-CIRCUIT,2-POLE 27 AMP - 5000082943×1
  • 185000011735
    $0.13
    SCREW M3 X 6 CHEESE HD. - 5000011735×4
  • 195000082949
    $21.92
    RECEPTACLE 20A, 250V - 5000082949×1
  • 195000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×1
  • 195000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×1
  • 195000011723
    $0.40
    SCREW M4 X 12 CHEESE HD. - 5000011723×1
  • 205000085208
    $28.84
    BREAKER-CIRCUIT - 5000085208×3
  • 215000082945No la vendemos
    Rocker switch×1
  • 215000011735
    $0.13
    SCREW M3 X 6 CHEESE HD. - 5000011735×2
  • 225000085172
    $0.52
    SCREW M8 X 12,SOC BUTN - 5000085172×6
  • 235000085431No la vendemos
    Control panel×1
  • 245000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×2
  • 255000085745
    $5.16
    CLAMP 2 DIA CAPACITOR - 5000085745×2
  • 265000085819No la vendemos
    Capacitor×1
  • 275000082863
    $304.51
    CAPACITOR 50MU,440 VAC,50/60HZ - 5000082863×1
  • 285000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×2
  • 295000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×2
  • 305000084080
    $48.76
    COVER-RELAY - 5000084080×1
  • 315000084079No la vendemos
    Switch×1
  • 325000010882
    $0.05
    NUT M8 8,HEX - 5000010882×4
  • 335000079363
    $0.36
    SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×4
  • 345000087078
    $15.93
    SWITCH-ROCKER,DPDT - 5000087078×1
  • 355000087079
    $58.18
    SWITCH-ROCKER,SPST - 5000087079×1
  • 365000087075No la vendemos
    Control panel×1
  • 375000085744No la vendemos
    Clamp×2
