RD11AEC ROLLER,DOUBLE DRUM

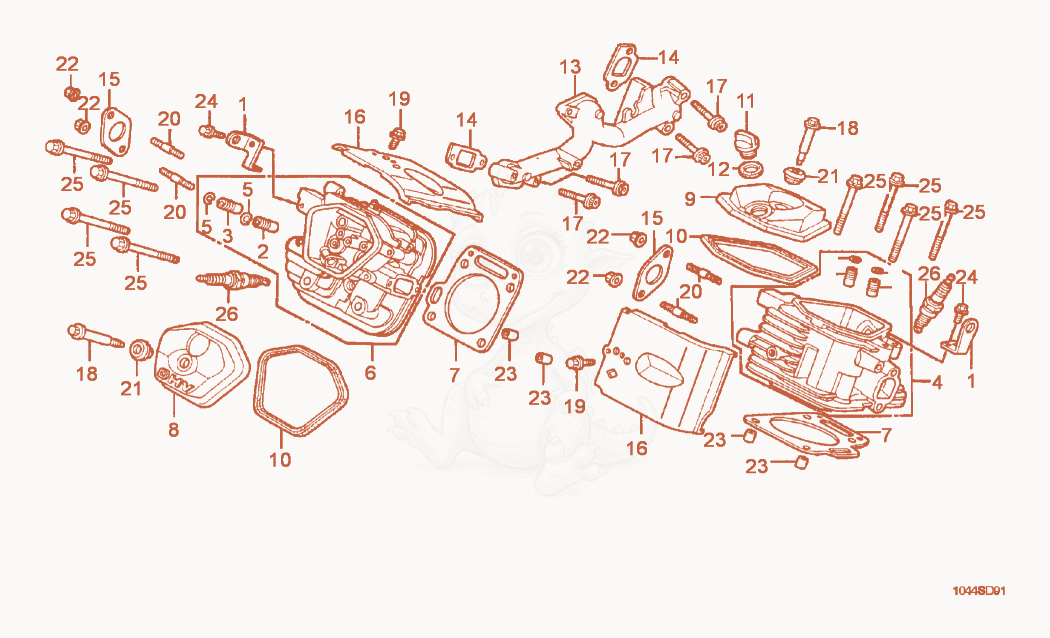

Despiece de Cylinder Head · RD11AEC

Despiece del Cylinder Head de una máquina Wacker Neuson RD11AEC, con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 15000152516
    $4.37
    BRACKET-ENGINE - 5000152516×2
  • 45000152517
    $563.40
    HEAD-CYLINDER - 5000152517×1
  • 65000152518
    $668.24
    NLA HEAD-CYLINDER - 5000152518×1
  • 75000152519
    $25.17
    GASKET,CYLINDER HEAD - 5000152519×1
  • 85000152520
    $80.95
    COVER-HEAD - 5000152520×1
  • 95000152521
    $53.86
    COVER-HEAD FILLER - 5000152521×1
  • 105000074645
    $15.43
    GASKET-CYLINDER HEAD COVER - 5000074645×2
  • 115000152522
    $24.63
    CAP-FILTER,OIL - 5000152522×1
  • 125000152523
    $6.64
    GASKET-CAP,OIL FILLER - 5000152523×1
  • 135000152524
    $263.67
    MANIFOLD-INTAKE - 5000152524×1
  • 145000152525
    $6.64
    GASKET-MANIFOLD,INTAKE - 5000152525×2
  • 155000110252
    $6.49
    GASKET-MUFFLER,STL - 5000110252×2
  • 165000152526
    $23.86
    DUCT-HEAD - 5000152526×2
  • 175000152527
    $6.03
    BOLT-SOCKET 8X45 - 5000152527×4
  • 185000074655
    $8.04
    BOLT-CYL.HEAD COVER RETAINER - 5000074655×2
  • 195000152487
    $3.52
    BOLT-FLANGE 6X14 - 5000152487×2
  • 205000152528
    $4.94
    BOLT-STUD 8X22 - 5000152528×4
  • 215000074657
    $7.71
    WASHER - 5000074657×2
  • 225000074738
    $1.45
    NUT M8,HEX.FLANGE - 5000074738×4
  • 235000074652
    $3.70
    PIN 12 X 20,DOWEL - 5000074652×4
  • 245000152530
    $2.82
    BOLT-FLANGE 8X20 - 5000152530×2
  • 255000074647
    $4.94
    SCREW M10 X 80,HEX.FLANGED - 5000074647×8
  • 265000152531
    $4.71
    SPARK PLUG-ZGR5A - 5000152531×2
