RD11AEC ROLLER,DOUBLE DRUM

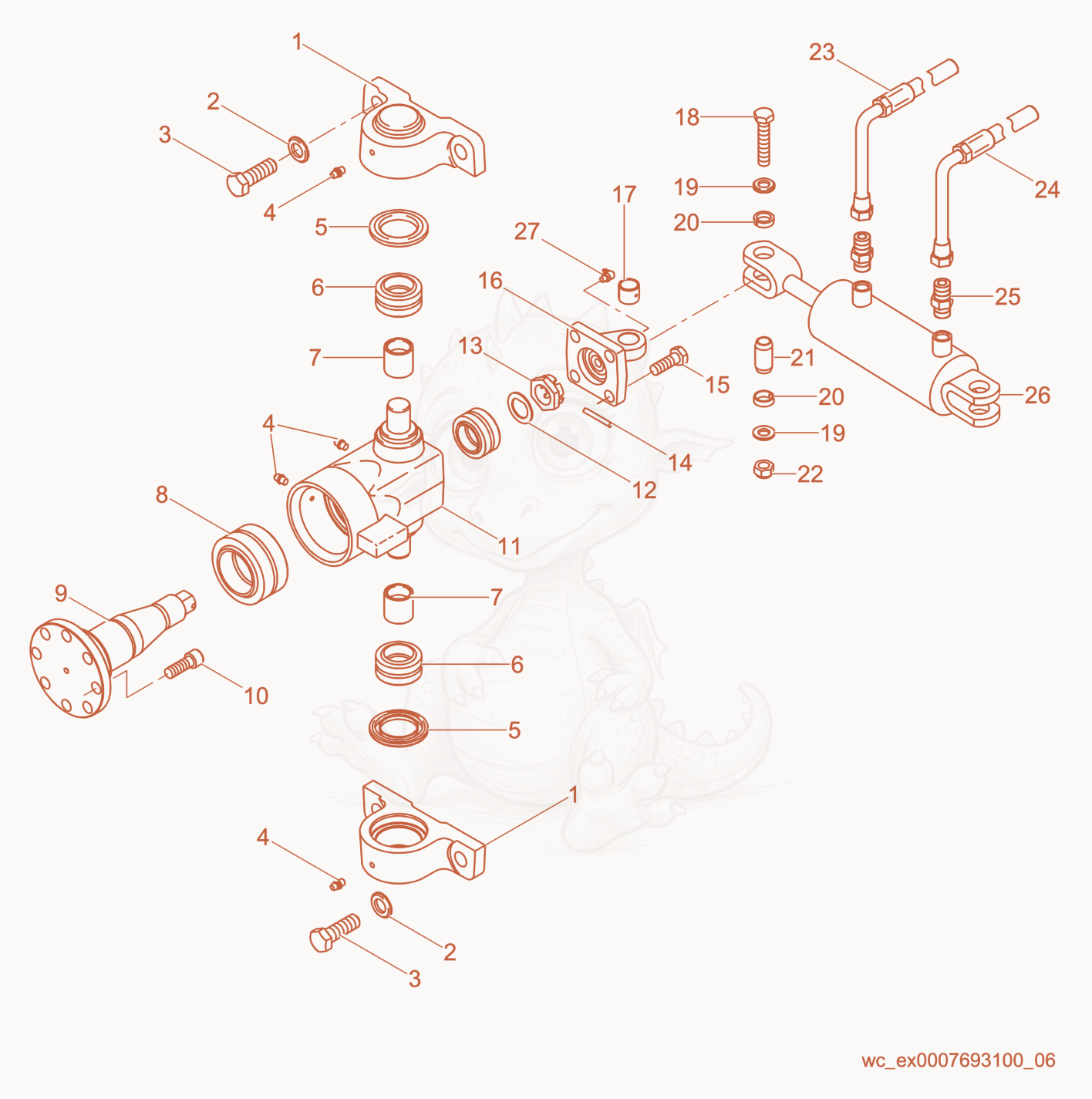

Despiece de Articulated Steering Joint · RD11AEC
- BLOCK-PILLOW P-5000176420 - 5000111092×2
- WASHER B17 FLAT - 5000010618×4
- SCREW M16 X 50 HX.HD. - 5000011374×4
- FITTING-GREASE AM6 - 5002004705×4
- SEAL-SHAFT 1.62 X 2.46 X.25,9A - 5000079721×2
- BEARING-SPHERICAL BALL,PLAIN - 5000079161×3
- SLEEVE-BEARING - 5000110735×2
- BEARING-SPHERICAL BALL,PLAIN - 5000079162×1
- SHAFT-ARTICULATED JOINT - 5000111124×1
- SCREW M12 X 35 10.9,SOC - 5000016389×8
- HOUSING-ARTICULA,JOINT MACH P-5000176420 - 5000110670×1
- WASHER-SPECIAL - 5000111775×1
- NUT-LOCK M24 HX,SLOTTED - 5000112015×1
- PIN 5M6 X 40 DOWEL - 5000038238×1
- SCREW M12 X 35 HX.HD. - 5000011422×4
- PIVOT-CYLINDER - 5000118410×1
- BEARING DX - 5000111129×1
- SCREW M12 X 60 HX.HD. - 5000088817×2
- WASHER B13 FLAT - 5000010620×4
- WEDGE-ARTICULATED JOINT - 5000111132×4
- PIN-ARTICULATED JOINT - 5000111131×2
- NUT-LOCK M12X1.75 HEX - 5000010366×2
- HOSE-ASSEMBLY - 5000111297×1
- HOSE-ASSEMBLY,42 INCHES - 5000111298×1
- FITTING-MALE ADAPTER,STRAIGHT - 5000078816×2
- O-RING .468 X.078 DURO90 3-906 - 5000080731×1
- O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
- CYLINDER-HYDRAULIC - 5000111130×1
- FITTING-GREASE M6X1,90 DEG. - 5000114393×1
