RD12-90 ROLLER, DOUBLE DRUM, SOLID ROPS

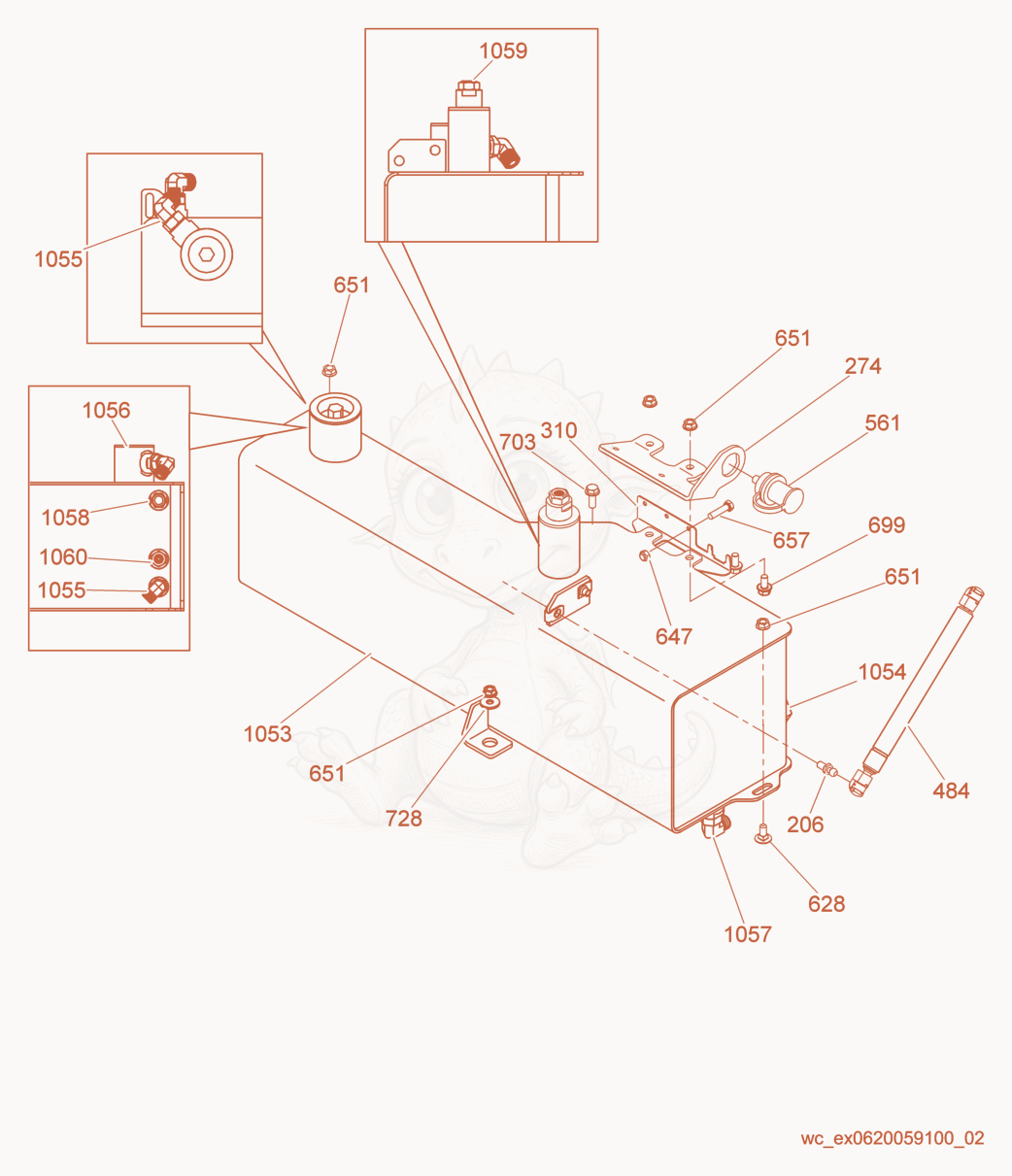

Despiece de Hydraulic Tank · RD12-90
- STUD-BALL 10 x M8 - 5000155125×1
- BRACKET-VOLTAGE REG P-5000112007 - 5000163907×1
- BRACKET-CONNECTOR,RD12 P-5000112007 - 5000165509×1
- CYLINDER-GAS SPRING - 5000164669×1
- TERMINAL-REMOTE JUMPER - 5000164775×1
- Bolt-Carriage M8x20-8.8,Blk EP3 - 5000163954×2
- NUT-LOCK M5 HEX. - 5000010369×3
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×5
- SCREW M5 X 16 HX.HD. - 5000011476×3
- SCREW M8X16 HX FLG BL ZN 8.8,W/202 - 5000163948×2
- SCREW M8 X 22,HX.HD,SER.FLG - 5000087023×1
- WASHER B8.4 FLAT - 5000010374×1
- TANK ASSY-HYD,RD12 P-5000112007 - 5000163325×1
- STRAINER-SUCTION 12/16 - 5000163332×1
- FITTING-HYD,SAE #8 90 ELBOW - 5000111272×2
- O-RING .644 X.087 DURO90 3-908 - 5000080732×1
- O-RING .49 X .07 #8 ORFS 2-014 - 5000080737×1
- FILTER ELEMENT,RD12/16 - 5000163334×1
- FITTING-HYD,SAE #6-8 90 ELBOW - 5000111277×1
- O-RING .644 X.087 DURO90 3-908 - 5000080732×1
- O-RING .36 X .07 #6 ORFS 2-012 - 5000080736×1
- Sightglass - 5000116236×1
- BREATHER-SAE #8 ORB - 5000163335×1
- FITTING-ST #8 ORB-#4 ORFS - 5000163962×1
