RD7 Tandem Roller

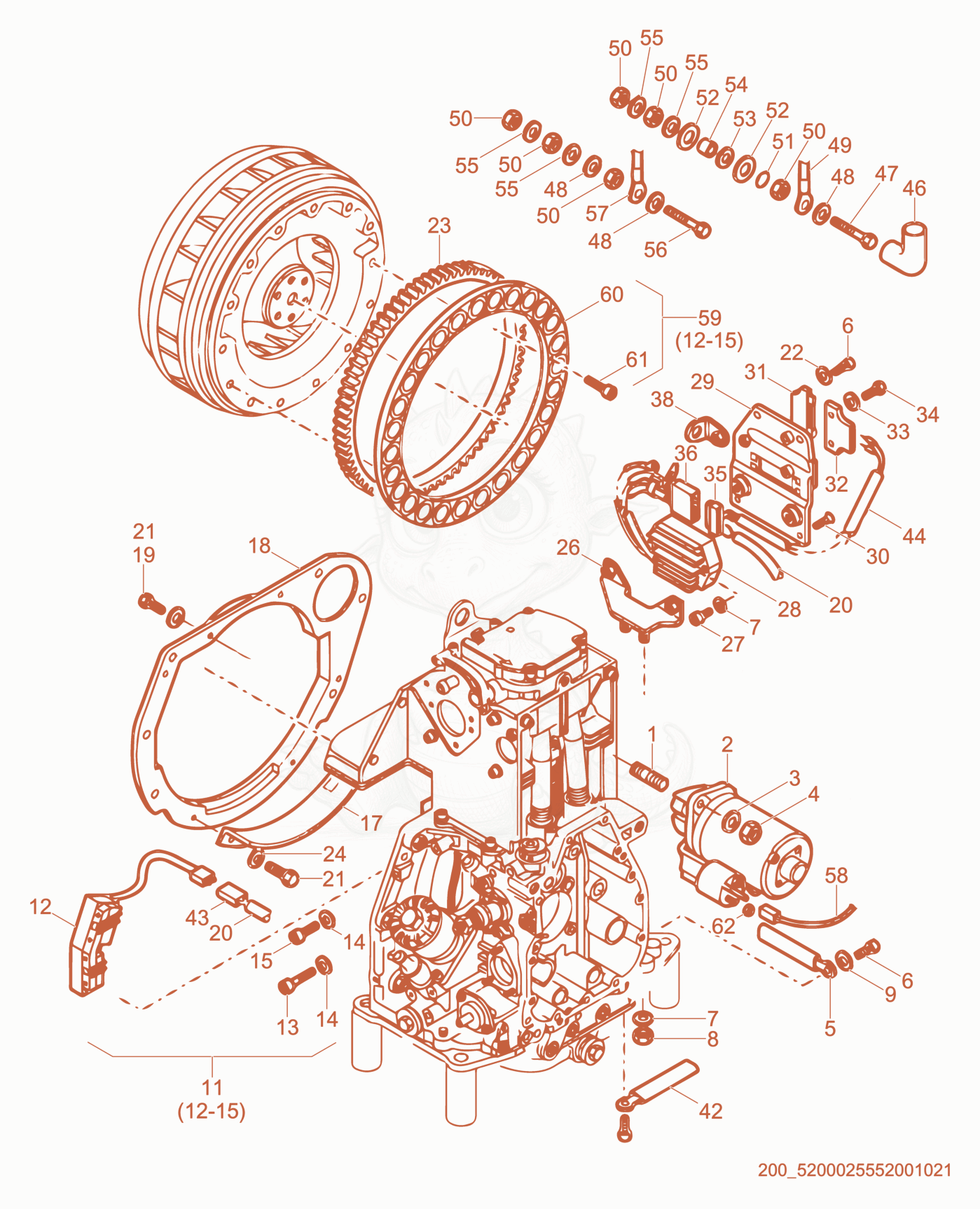

Despiece de Starter · RD7HE
- STUD M12 X 50 - 5000203131×2
- STARTER-MOTOR - 5100030632×1
- WASHER-FLAT 13 - 5100030645×2
- NUT - 5000097428×2
- Clamp - 5000097590×2
- SCREW-ALLEN HD,M6X12-8.8A3C - 5000129016×2
- WASHER-SPRING - 5000151218×4
- NUT M8 8 A3C - 5000151379×2
- WASHER-FLAT 6.4 - 5000151324×1
- NUT VM6 - 5000129021×1
- SCREW-ALLEN M6X25 - 5000203133×1
- Angle - 5000207193×2
- SCREW-ALLEN M6X30 - 5000203134×1
- PLATE-BAFFLE - 5000104432×1
- cable - 5000207562×1
- SCREW-M6 X 12 - 5000202436×5
- WASHER-SPRING 6 A3C - 5000151456×6
- GEAR-CROWN - 5000104430×1
- RETAINER - 5000104435×1
- SCREW-ALLEN,M8 X 35 - 5000202440×2
- Regulator - 5000212093×1
- PLATE - 5000097592×1
- SCREW-M6X12 8.8 A3C - 5000151387×2
- PLUG-PIN - 5000095073×1
- CONNECTOR-PIN - 5000095074×1
- WASHER 5.3, A3C - 5000129517×2
- SCREW M5X25 - 5000203135×2
- PIN-BUSHING - 5000099522×1
- Plug - 5000102473×1
- STRAP - 5000150243×4
- ANGLE - 5000104436×1
- Clamp - 5000102472×2
- Plug - 5000102471×1
- CABLE - 5000102474×1
- COVER-STARTER PROTECTOR - 5000058696×1
- Screw - 5000203137×1
- WASHER-STAR 8.4 - 5000203138×2
- CABLE-BATTERY, POS - 5100030623×1
- NUT M8 MS,HEX - 5000020248×6
- WASHER-SERRATED A8.4 - 5000203139×1
- DISK-INSULATING - 5000099798×2
- WASHER-TOOTH LOCK - 5000203140×1
- TUBE-INSULATING - 5000203141×1
- WASHER B8.4 MS,FLAT - 5000012645×2
- SCREW M8X35 - 5000203142×1
- CABLE-BATTERY, NEG - 5100030622×1
- CABLE-ELE. - 5000095075×1
- RING-MAGNETIC - 5000129025×1
- SCREW M4X16 A3C-8.8,CH.HD. - 5000129026×12
- Nut - 5000108848×1
