RD7 Tandem Roller

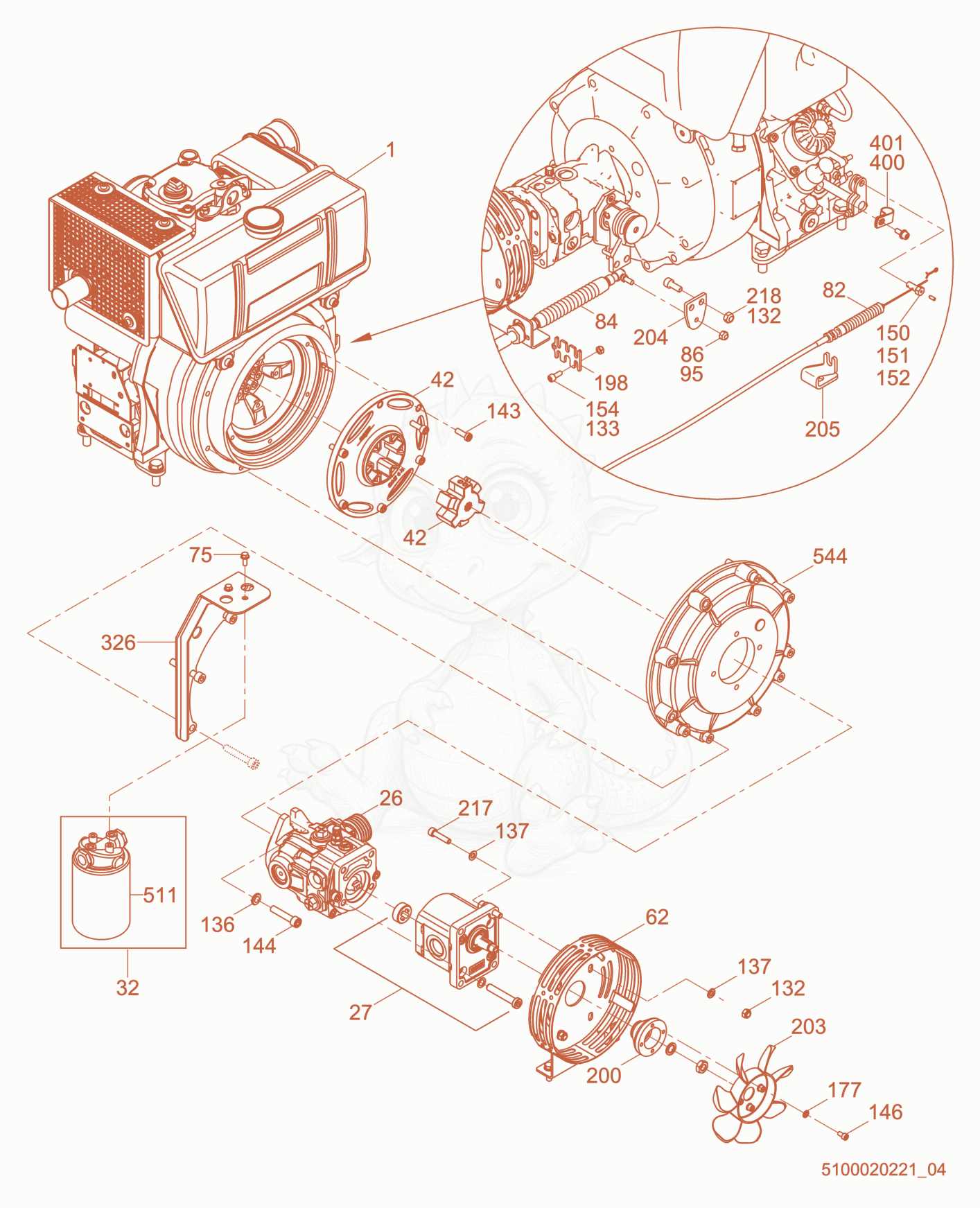

Despiece de Engine Compartment · RD7HE
- ENGINE-HATZ 1D42S,ES non-EPA - 5100036790×1
- Pump-Drive - 5100047071×1
- Pump-Exciter - 5100047070×1
- 325200016308No la vendemosHydraulic filter cpl.×1
- COUPLING, HATZ ENGINE/PUMP - 5100036589×1
- BRACKET-FAN GUARD P-5000176420 - 5100029090×1
- 755200021953No la vendemosHexagonal head cap screw×2
- 825200017201No la vendemosThrottle cable×1
- CABLE-TRAVEL, RD7 Hatz - 5100036588×1
- CABLE-BALL END - 5000114114×1
- NUT-LOCK 1/4-28,HEX,NYLON INS. - 5000028746×2
- NUT-LOCK M8 HEX - 5000010367×4
- NUT-LOCK M6 HEX. - 5000010368×2
- WASHER B10.5 FLAT - 5000010621×2
- WASHER-FLAT,M8,ZINC - 5000010622×4
- SCREW M5X16 HX HD SERR FLG ZP - 5000159811×1
- SCREW-ALLEN M8X25 8.8 - 5000151559×2
- SCREW M10 X 30 SOC.HD. - 5000011534×2
- SCREW M6 X 12 SOC.HD. - 5000011554×4
- PIN-THROTTLE - 5000113809×1
- PIN-THREADED,M4 X 10 - 5000114134×1
- PIN-COTTER 1.6 X 16 - 5000114328×1
- SCREW M6 X 16 SOC.HD. - 5000011553×2
- WASHER B6.4 FLAT - 5000010624×4
- PLATE-CABLE HOLDDOWN P-5000176420 - 5100028125×1
- 2005200015688No la vendemosAdapter×1
- 2035200011470No la vendemosFan×1
- 2045200014788No la vendemosLever×1
- 2055200017491No la vendemosThrottle cable bracket×1
- SCREW M8 X 35 SOC.HD. - 5000011540×2
- SCREW M8 X 20 SOC.HD. - 5000011543×2
- 3265200017361No la vendemosFilter bracket×1
- CLAMP-TUBE .625 ID COV-1111 - 5000163956×1
- SCREW M6X16 SC HD,W/WASHER,SEM - 5000160861×1
- 5115200016307No la vendemosHydraulic filter×1
- HOUSING - 5100030877×1
