ST35 Compact Track Loader

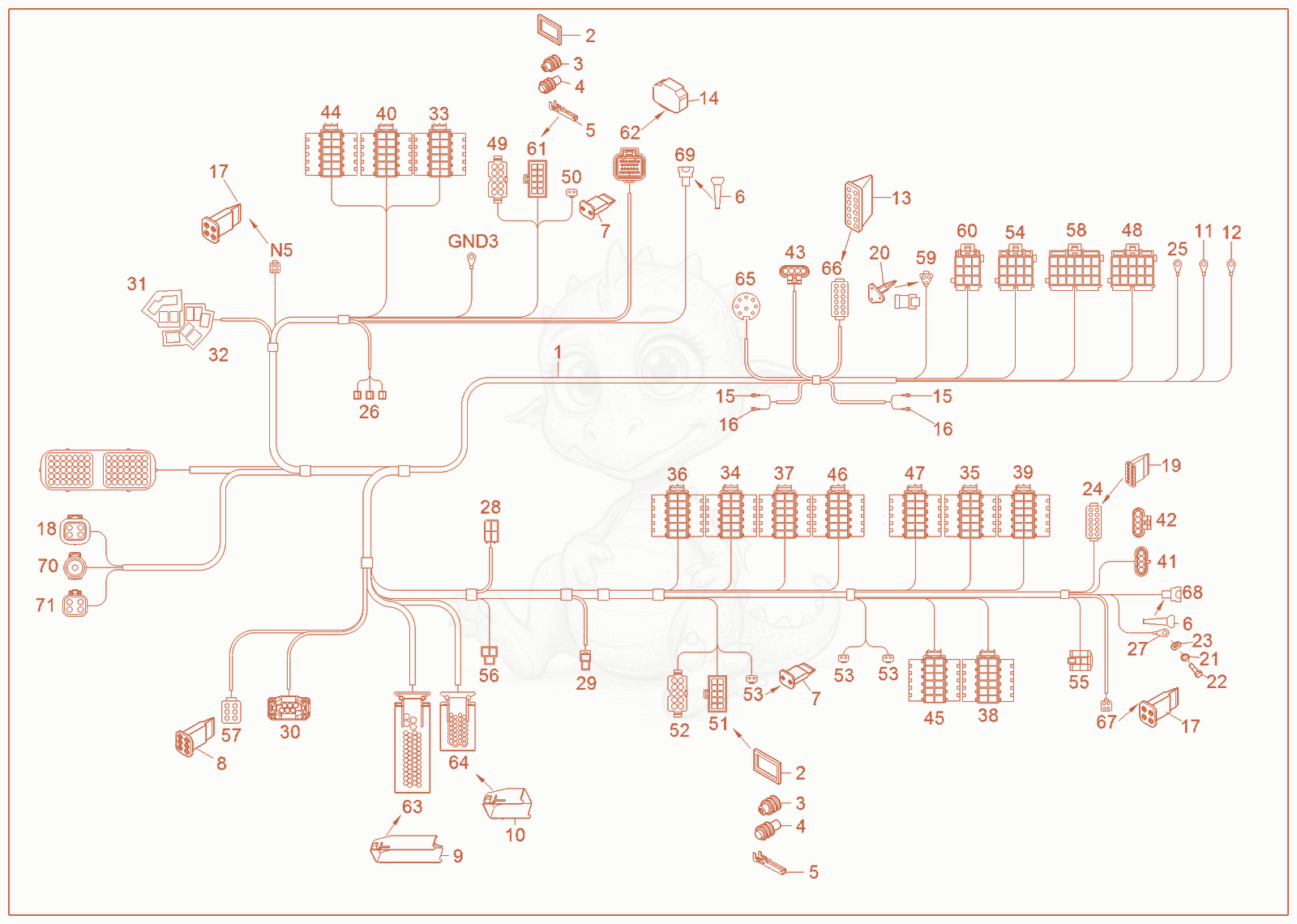

Despiece de wiring harness cabin · ST35(S04-02)

Despiece del wiring harness cabin de una máquina Wacker Neuson ST35(S04-02), con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000354268No la vendemos
    Wiring harness cabine×1
  • 21000263273
    $2.19
    Seal - 1000263273×10
  • 31000263274
    $4.88
    Seal - 1000263274×16
  • 41000263275
    $0.65
    Plug - 1000263275×4
  • 51000266875
    $0.55
    bushing contact - 1000266875×16
  • 61000027466No la vendemos
    protecting cap×3
  • 71000027442No la vendemos
    Wedge×2
  • 81000085032
    $1.15
    plug locking - 1000085032×1
  • 91000295297
    $2.73
    cover cap - 1000295297×1
  • 101000295298
    $12.10
    cover cap - 1000295298×1
  • 111000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 121000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 131000148272
    $2.17
    Pin housing - 1000148272×1
  • 141000306996
    $36.29
    bushing - 1000306996×1
  • 151000095371No la vendemos
    plug sleeve×2
  • 161000092492
    $1.18
    plug sleeve - 1000092492×2
  • 171000104287
    $0.99
    wedge - 1000104287×2
  • 181000360582No la vendemos
    Pin housing×1
  • 191000085010
    $1.46
    wedge - 1000085010×1
  • 201000027433
    $1.57
    locking - 1000027433×1
  • 211000174410
    $0.04
    DIN6797 Lock Washer A6.4 A2C - 1000174410×2
  • 221000082237
    $1.71
    6-Point screw M6x16-8.8 A2C-DIN933 - 1000082237×2
  • 231000015430No la vendemos
    Washer×5
  • 241000105122
    $29.32
    bushing housing - 1000105122×1
  • 251000096859
    $1.08
    CABLE LUG - 1000096859×1
  • 261000027435No la vendemos
    Insulating sleeve×3
  • 271000139516
    $1.60
    cable lug - 1000139516×1
  • 281000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • 291000101072
    $0.75
    plug sleeve housing - 1000101072×1
  • 301000105100
    $9.88
    bushing housing - 1000105100×1
  • 311000027368No la vendemos
    Central plug×1
  • 321000027386
    $6.47
    PLUG - 1000027386×1
  • 331000103949
    $5.74
    bushing housing - 1000103949×1
  • 341000103949
    $5.74
    bushing housing - 1000103949×1
  • 351000103949
    $5.74
    bushing housing - 1000103949×1
  • 361000103949
    $5.74
    bushing housing - 1000103949×1
  • 371000103949
    $5.74
    bushing housing - 1000103949×1
  • 381000103949
    $5.74
    bushing housing - 1000103949×1
  • 391000103949
    $5.74
    bushing housing - 1000103949×1
  • 401000103949
    $5.74
    bushing housing - 1000103949×1
  • 411000271808
    $9.88
    pin housing - 1000271808×1
  • 421000258052
    $3.23
    plug bushing - 1000258052×1
  • 431000258052
    $3.23
    plug bushing - 1000258052×1
  • 441000095336No la vendemos
    Plug sleeve housing×1
  • 451000103949
    $5.74
    bushing housing - 1000103949×1
  • 461000103949
    $5.74
    bushing housing - 1000103949×1
  • 471000103949
    $5.74
    bushing housing - 1000103949×1
  • 481000103949
    $5.74
    bushing housing - 1000103949×1
  • 491000098960
    $2.84
    bushing housing - 1000098960×1
  • 501000315300
    $5.16
    housing - 1000315300×1
  • 511000270365
    $6.40
    Plug Deutsch - 1000270365×1
  • 521000263271
    $2.81
    bushing housing - 1000263271×1
  • 531000315300
    $5.16
    housing - 1000315300×1
  • 541000095332
    $5.74
    plug sleeve housing - 1000095332×1
  • 551000098961
    $3.01
    bushing housing - 1000098961×1
  • 561000095320
    $4.55
    plug sleeve housing - 1000095320×1
  • 571000095321
    $5.84
    bushing housing - 1000095321×1
  • 581000027431No la vendemos
    bushing housing×1
  • 591000099076
    $2.90
    bushing housing - 1000099076×1
  • 601000027429No la vendemos
    Housing×1
  • 611000118531
    $5.84
    plug sleeve housing - 1000118531×1
  • 621000263271
    $2.81
    bushing housing - 1000263271×1
  • 631000306995
    $18.27
    PLUG - 1000306995×1
  • 641000295179
    $62.73
    plug sleeve housing - 1000295179×1
  • 651000295178
    $20.92
    plug sleeve housing - 1000295178×1
  • 661000312071No la vendemos
    Bushing housing×1
  • 671000271156
    $7.77
    pin housing - 1000271156×1
  • 681000027332
    $3.80
    housing - 1000027332×1
  • 691000027332
    $3.80
    housing - 1000027332×1
  • 701000360583
    $6.40
    Plug - 1000360583×1
  • 711000360584No la vendemos
    Pin housing×1
