ST35 Compact Track Loader

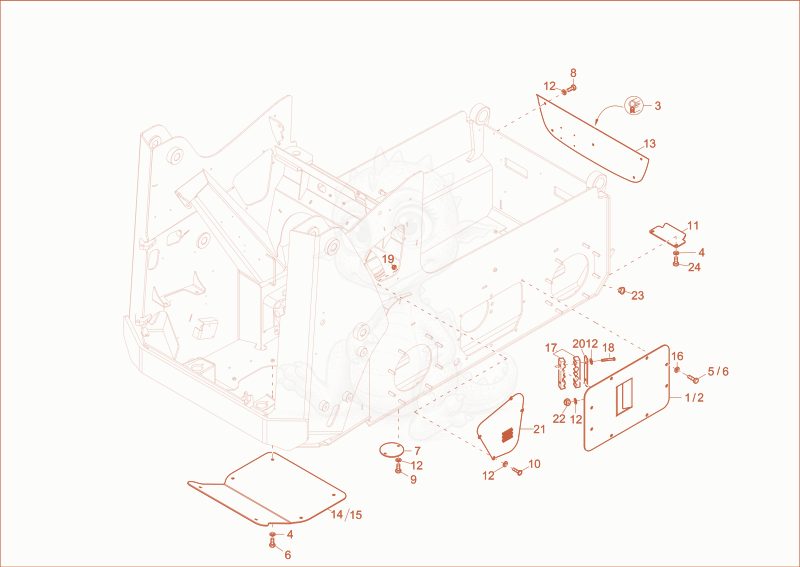

Despiece de chassis cover · ST35(S04-02)

Despiece del chassis cover de una máquina Wacker Neuson ST35(S04-02), con globos numerados
Pasa por encima de un recuadro para ver la pieza, su precio y su fila. Pincha para marcarla.
  • 11000289152
    $327.87
    Lockcover 1000289152×2
  • 21000314524No la vendemos
    lock cover×2
  • 31000098164
    $21.58
    rubber profile 1,5-3mm - 1000098164×0.8
  • 41000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×10
  • 51000085437
    $1.03
    6-Point screw M12x30-10.9 A2C - 1000085437×16
  • 61000333172No la vendemos
    screw×16
  • 71000313220
    $59.61
    cover - 1000313220×1
  • 81000019136No la vendemos
    Hex screw×5
  • 91000015343No la vendemos
    Hex screw×2
  • 101000085557
    $0.78
    flat head screw - 1000085557×8
  • 111000304810
    $16.69
    COVER - 1000304810×2
  • 121000092292
    $5.86
    washer A8,4-140HV A2C DIN125 - 1000092292×23
  • 131000289186
    $88.97
    Cover 1000289186×1
  • 141000292354
    $477.79
    Cover 1000292354×1
  • 151000314514
    $409.30
    cover PAINT - 1000314514×1
  • 161000015433No la vendemos
    Washer×16
  • 171000289197
    $218.83
    clamp - 1000289197×2
  • 181000022334No la vendemos
    Hex screw×4
  • 191000013021No la vendemos
    Hexagon nut×8
  • 201000314890
    $19.37
    cover - 1000314890×1
  • 211000292781
    $45.61
    plate - 1000292781×2
  • 221000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×4
  • 231000082786
    $3.66
    VSTI1/2EDA3C - 1000082786×2
  • 241000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×10
