VP50H VIBROPLATE

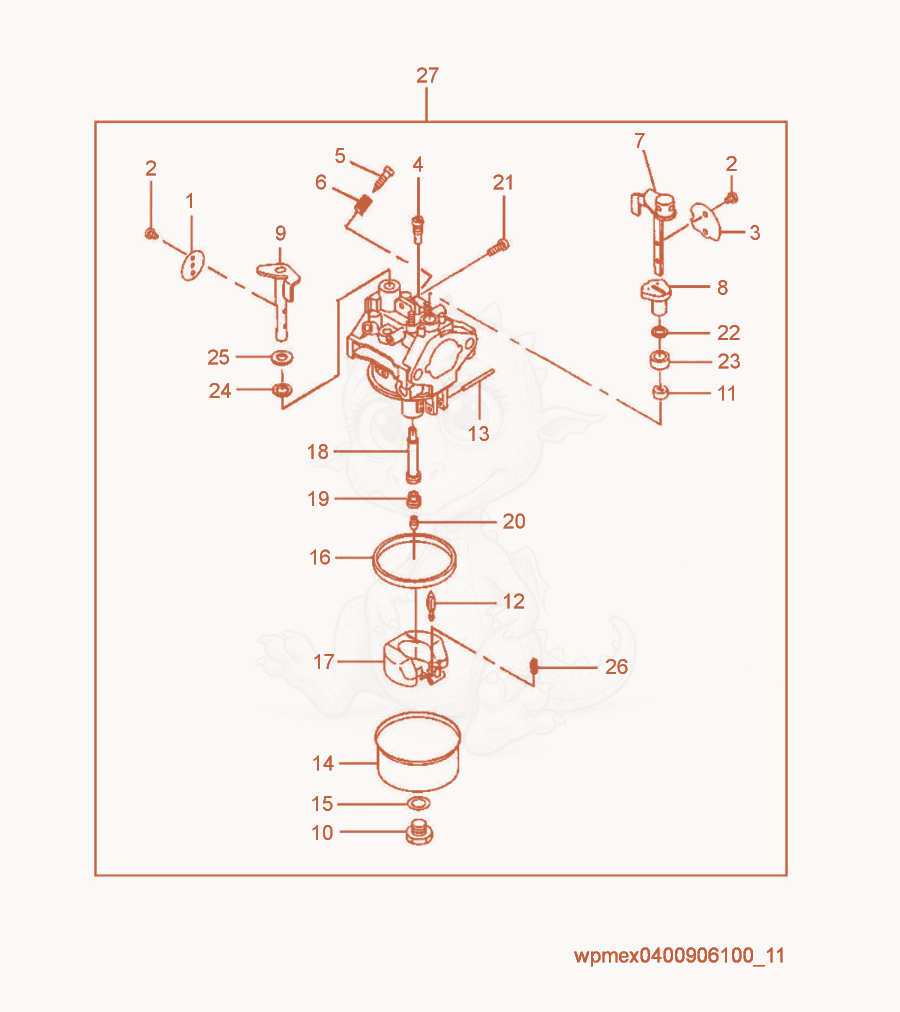

Despiece de Carburetor cpl. · VP50H
- 15000216692No la vendemosThrottle valve×1
- Screw - 5000156408×4
- VALVE-CHOKE - 5000084390×1
- 45000216691No la vendemosJet×1
- CONTROL-ADJUSTER - 5000084391×1
- Spring - 5000053699×2
- LEVER-CHOKE - 5000084392×1
- Ring - 5000084508×1
- SHAFT (THROTTLE) - 5000084393×1
- BOLT - 5000084394×1
- INSERT-SLOTTED,NYLON - 5000053695×1
- VALVE-NEEDLE - 5000084395×1
- PIN-FLOAT - 5000084396×1
- FLOAT-CHAMBER - 5000084397×1
- PACKING - 5000084398×1
- PACKING (CHAMBER) - 5000084350×1
- Float - 5000084399×1
- JET-MAIN NOZZLE - 5000117271×1
- GUIDE-HOLDER - 5000084404×1
- 205000216693No la vendemosMain jet×1
- SCREW-ADJUST - 5000084402×1
- BUSHING-CHOKE SHAFT - 5000110898×1
- seal - 5000084503×1
- SEAL - 5000084501×1
- Ring - 5000084502×1
- Spring - 5000084403×1
- 275000216702No la vendemosCarburetor cpl.×1
